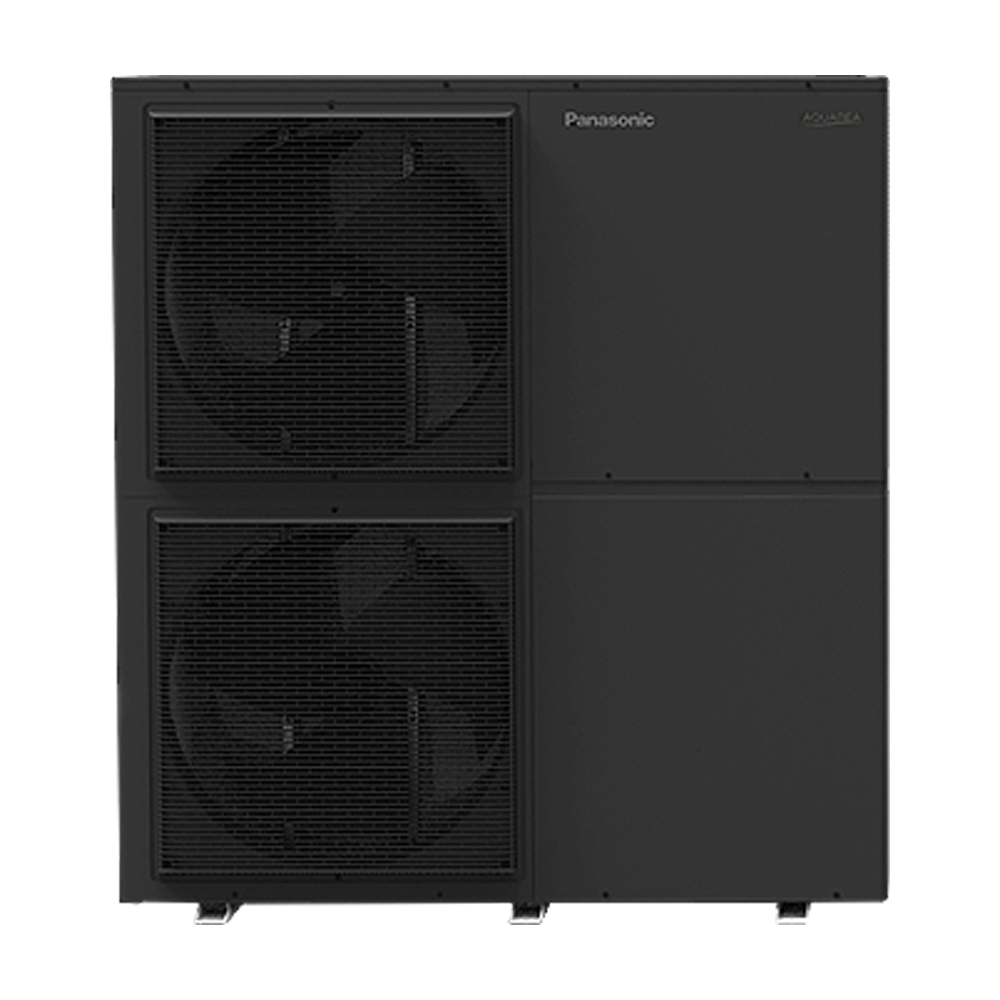

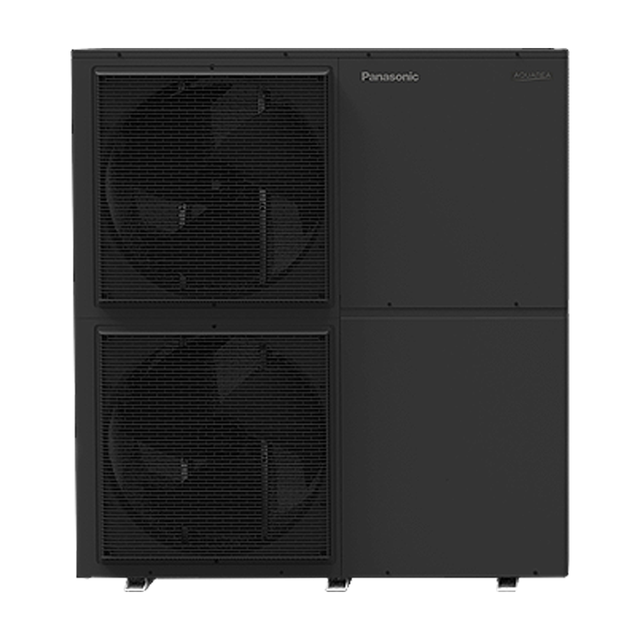

Panasonic Aquarea T-CAP monoblock heat pump BIG M generation 25kW, 3 phase

Panasonic's Aquarea T-CAP monobloc heat pump offers a revolutionary solution for heating, cooling and hot water. This 100% hydraulic system consists of a self-contained outdoor unit with modern features and the ability to adapt to different weather conditions. The Aquarea T-CAP heat pump is the ideal choice for those looking for an environmentally friendly, energy-efficient solution for the comfort of their home.

Important features

Natural refrigerant : Aquarea T-CAP uses R290 refrigerant, which has a global warming potential (GWP) of only 3. This makes it an environmentally friendly alternative to fossil fuels.

High temperature output : The unit is capable of providing water temperatures of up to 75°C even at an outdoor temperature of -15°C, guaranteeing adequate heating even on the harshest winter days.

Reliable performance : Aquarea T-CAP provides stable heating capacity even at outdoor temperatures of -20°C with a water temperature of 35°C. The units operate down to -28°C thanks to the Panasonic compressor.

Quiet operation : The heat pump operates extremely quietly, with a noise level of only 29 dB(A) from a distance of 5 meters, so it does not disturb the peace of the residents.

Smart features : The heat pump is compatible with the Panasonic Comfort Cloud and Aquarea Service Cloud apps, allowing remote control and system monitoring.

Recommendations

The Panasonic Aquarea T-CAP BIG M generation is the ideal choice for central heating and hot water systems, especially in multi-family or commercial buildings. With units from 20 to 30 kW and cascadable options up to 300 kW, it offers a flexible solution for both new buildings and renovations.

This heat pump can be easily integrated into existing water systems, such as fans, underfloor heating or hot water tanks. Its design harmoniously blends into the architectural environment, offering not only a functional but also an aesthetically appealing solution.
