Panasonic Aquarea T-CAP Hydrosplit Heat Pump M Generation 9kW, 260l DHW, 3-phase

Panasonic Aquarea T-CAP M Series heat pumps represent a new generation of air-to-water systems. Using R290 natural refrigerant, the unit is environmentally friendly, energy-efficient, and provides maximum comfort even in extreme weather conditions. The All-in-One heat pump features a built-in 185-liter domestic hot water tank, which simultaneously provides heating, cooling, and hot water services for the home, all in a sustainable manner. It is an ideal solution for both new builds and renovations.

Key benefits and features

Energy efficiency and high performance: Aquarea T-CAP technology allows the heating capacity to be maintained even at an outdoor temperature of -20°C. The system operates even at -28°C, while the produced water temperature can reach up to 75°C, even at an outdoor temperature of -15°C.

Quiet operation: With a noise level of just 29 dB(A) at 5 meters, this super-quiet heat pump is not disturbing even in the densest residential areas. With the special Super Quiet mode, the noise level can be reduced by an additional 8 dB, ensuring peace day and night.

Sustainable solution: The use of R290 natural refrigerant contributes to the reduction of carbon dioxide emissions and has a low global warming potential (GWP), so the Panasonic Aquarea M series minimizes not only heating costs but also the environmental impact.

Easy installation and maintenance: The hydraulic connection between the indoor and outdoor units significantly simplifies installation. The 185-liter stainless steel tank is maintenance-free, saving the user time and costs. No buffer tank is needed, which further saves space.

Modern connectivity: With the Panasonic Comfort Cloud application, you can easily control the heat pump remotely, from anywhere and at any time. The Aquarea Service Cloud also allows remote maintenance of the system, further increasing home comfort and system efficiency.

Flexible installation options: The system can be perfectly integrated into existing heating systems, for example, it can be combined with radiators, underfloor heating, or fan coils. This makes it an ideal choice not only for new constructions but also for renovations.

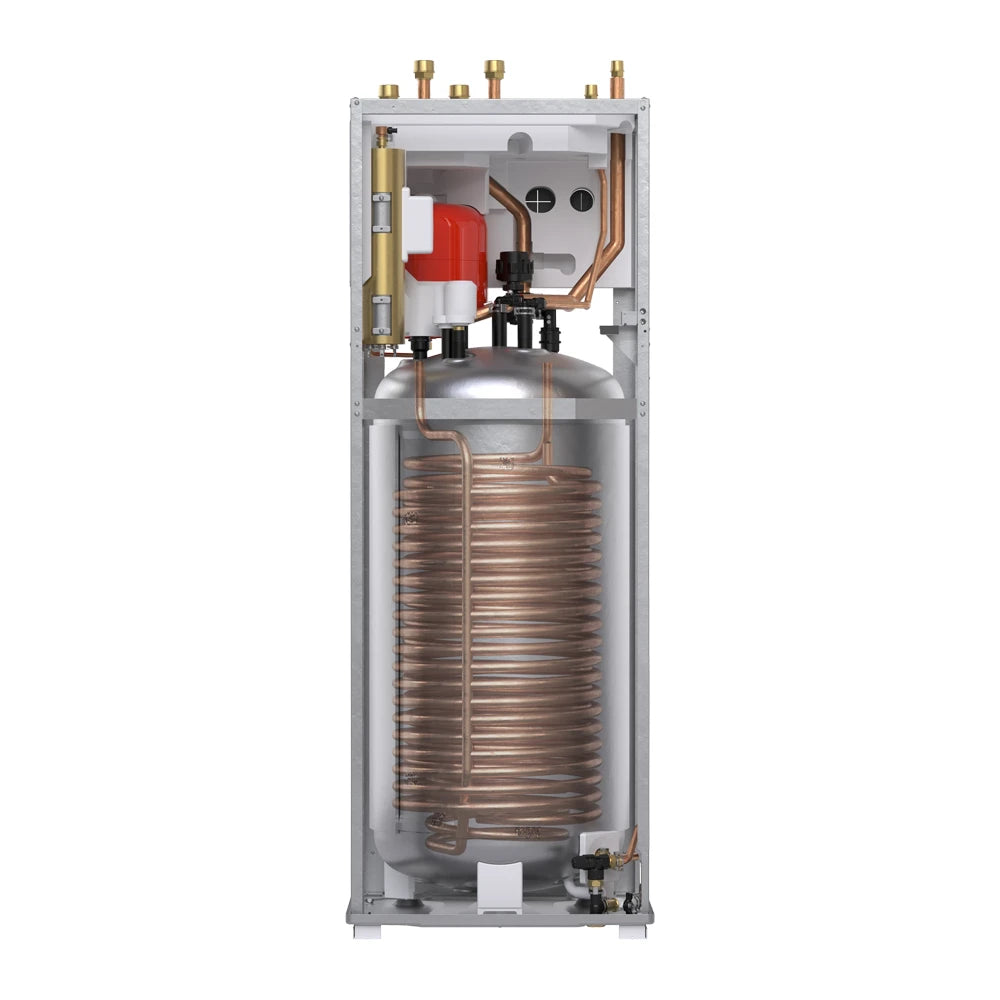

Compact and space-saving design: The All-in-One system requires only a 599 x 602 mm footprint, taking up minimal indoor space. The U-Vacua™ insulation panel ensures high efficiency of the tank, thus minimizing heat loss.
