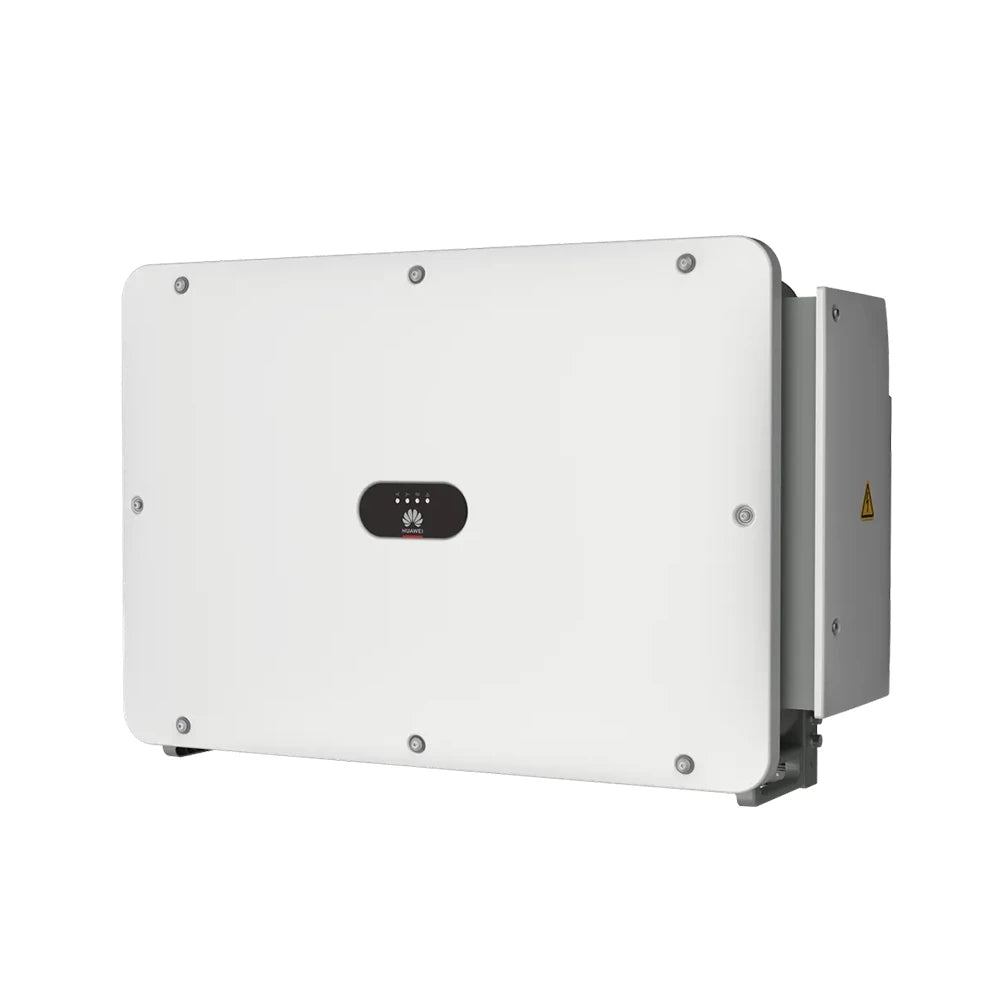

Huawei SUN2000-115KTL-M2 inverter 115kW - 3 phase

The Huawei SUN2000-115KTL-M2 inverter represents the latest technology for high-performance solar systems. With a rated power of 115 kW and intelligent features, this inverter is an ideal choice for commercial, industrial, and utility applications.

Important features

Excellent efficiency:

• Maximum efficiency: 98.8% @480Vac.
• European weighted efficiency: 98.6% @480Vac, 98.4% @400Vac.

10 MPPT: Ten Maximum Power Point Trackers guarantee energy efficiency for various solar arrays.

125 kVA maximum apparent power: Capable of meeting the power demands of the largest systems.

Smart IV curve diagnostics: Fast and accurate fault detection and system optimization to maximize efficiency.

20 string intelligent monitoring: Real-time monitoring and fast error handling reduce downtime.

High input and output power:

• Max. input voltage: 1100 V.
• Max. output current: 182.3 A @400Vac, 151.9 A @480Vac.

Protection and reliability:

• Arc fault protection with artificial intelligence support.
• AC and DC surge arresters (Type II).
• String-level isolation and PID recovery to increase solar panel lifespan.

Flexible communication: WLAN, RS485, USB and optional 4G support for real-time control and analysis via the FusionSolar app.

Environmental resistance: IP66 protection guarantees dust and water resistance, and the operating temperature range from -25°C to +60°C makes the device suitable for use in extreme environments.

Recommendations

The Huawei SUN2000-115KTL-M2 is an ideal choice for large-scale solar power systems where efficiency, reliability, and smart diagnostic functions are key. It is perfect for industrial facilities, utility projects, and large-scale commercial applications where sustainability and cost-effectiveness are key considerations.
