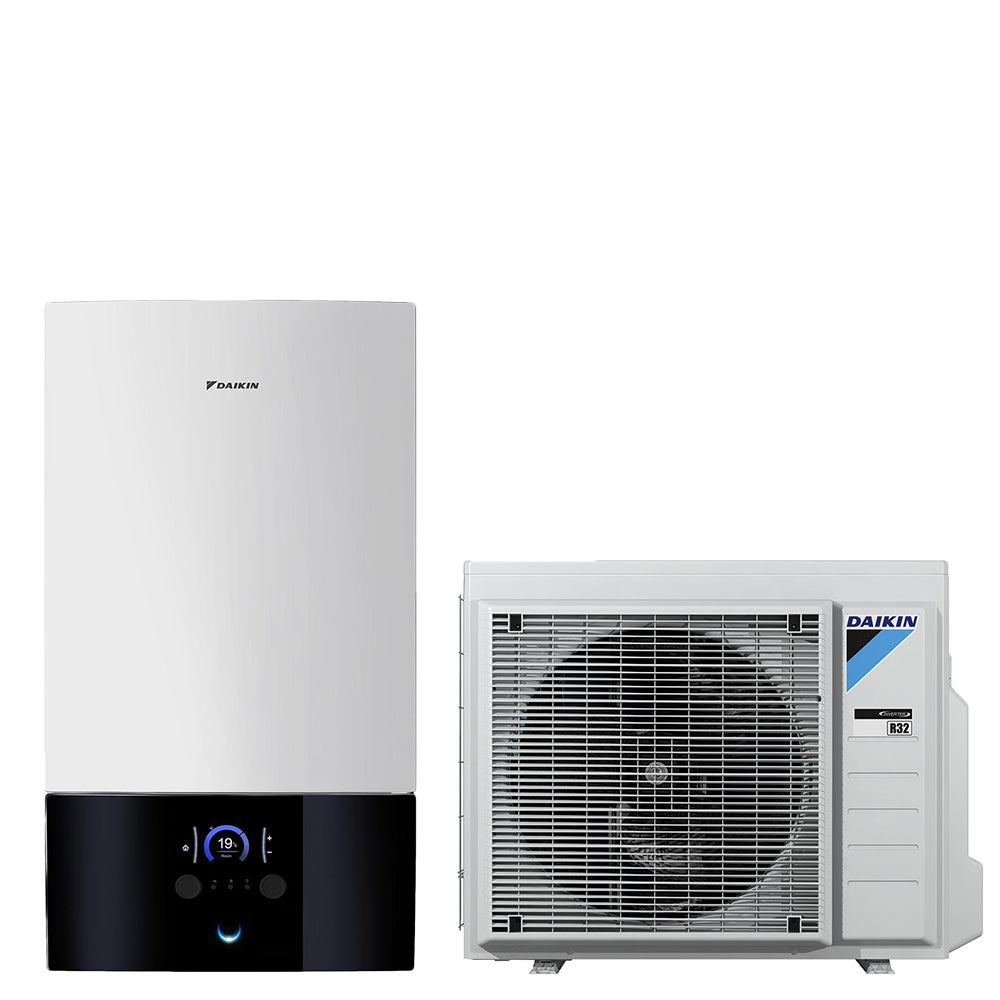

Daikin Altherma 3 Split Heat Pump, 8kW, for heating and cooling, 6kW backup heater, 16A outdoor unit

The Daikin Altherma 3 R is a modern, energy-efficient air-to-water heat pump available in two versions: heating and hot water production only, or heating, cooling, and hot water production. This ensures optimal comfort in your home in any season. It is an ideal choice for new build homes, offering energy-efficient and sustainable heating solutions.

Key Features

Various power options and backup heaters
The heat pumps are available with capacities of 4, 6, and 8 kW to meet various heating needs. Additionally, indoor units with built-in backup heaters of 6 kW or 9 kW can be selected, reliably ensuring the required temperature even in cold weather.

Different outdoor unit current consumption
Outdoor units can be selected with different current consumptions: 16A fused, low-current models are available, as well as versions requiring a standard 25A fuse. This provides flexibility in adapting to the existing electrical network.

Indirect DHW tank expansion possibility
An external indirect domestic hot water (DHW) tank can be connected to the heat pump, allowing you to add a tank of any size if the built-in 180 or 230-liter capacity is insufficient. This is particularly advantageous if there is a higher water demand in the household.

Environmentally friendly Bluevolution technology
The heat pump operates with R-32 refrigerant, which has lower CO2 emissions and higher energy efficiency. Thanks to Daikin Bluevolution technology, the heat pump's seasonal efficiency can be rated up to A+++, achieving an exceptionally high COP value (up to 5.1).

Easy installation and maintenance
All key hydraulic components are factory-integrated, making installation quick and easy. The indoor units are compact and require minimal space, and all maintenance tasks are easily accessible from the front of the unit.

High comfort and easy control
The system operates with weather-dependent control, ensuring a constant temperature. With the Daikin Residential Controller app, you can control your heat pump from anywhere and set the temperature to your needs. The device is also compatible with other smart home systems, including voice control.

Excellent performance even in extreme weather conditions
The Daikin Altherma 3 R heat pump operates reliably even at outdoor temperatures of -25°C and can produce water up to 65°C. It is suitable for both underfloor heating and radiators, making it versatile.

Quick and easy commissioning
With an integrated, high-resolution display and a simple wizard, the system can be fully commissioned in as few as 9 steps. Configuration can also be done remotely and uploaded to the device later.

Modern, discreet design
The outdoor and indoor units feature a modern black and white design that discreetly blends into the living space or outdoor environment. The intuitive Daikin Eye display shows the unit's status in real time, so any issues are immediately visible.

Additional hot water comfort with ECH2O tank
The system is compatible with the ECH2O thermal energy storage tank, which ensures fresh water draw-off, providing immediate access to hot water without the risk of contamination or build-up. This solution offers greater long-term comfort and efficiency, as well as a future-proof option for integrating solar or other renewable energy sources.

Recommendation

The Daikin Altherma 3 R split heat pump is an excellent choice for anyone looking for an environmentally friendly, cost-effective, and flexible heating, cooling, and hot water production solution. It is suitable for both small and large households, as its capacity and storage can be expanded as needed. Its easy installation and control, as well as its reliable operation in extreme weather conditions, guarantee long-term comfort and energy savings.
