Clivet MISAN Split Heat Pump 16.0kW
Clivet MISAN Split Heat Pump 16.0kW is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
You can pay for your order by bank transfer, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders exceeding HUF 500,000, only bank transfer is possible. The proforma invoice will be sent by email, containing the necessary bank details for the transfer.
Delivery
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free delivery
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
What is a heat pump? - Briefly and clearly
Description
Description
The Clivet MISAN split heat pump family is an ideal choice for those looking for a reliable, all-electric solution for modern heating and cooling of their home. The unit ensures efficient operation even at outdoor temperatures down to -25 °C, while operating with minimal noise levels.
Key Features
All-electric operation:
Not a hybrid system, so there is no need for a boiler or other fossil fuel sources – purely renewable energy utilization.
Excellent seasonal efficiency:
SCOP value up to 5.32 (at 35 °C), A+++ energy class, resulting in significant cost savings and sustainability.

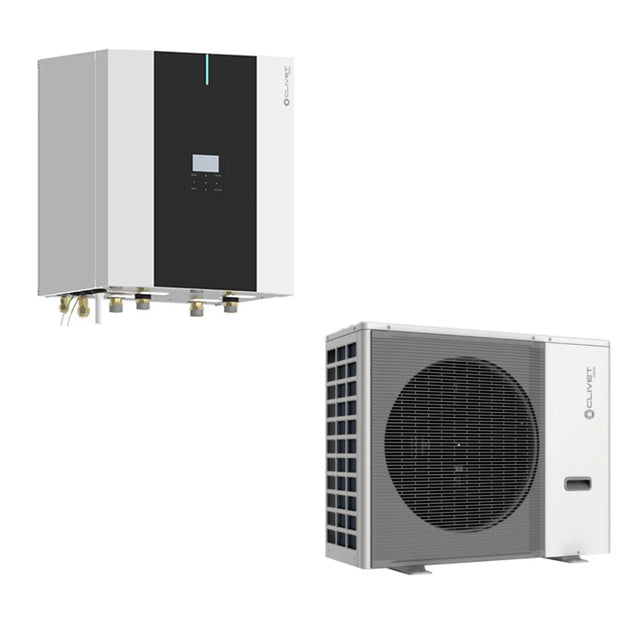

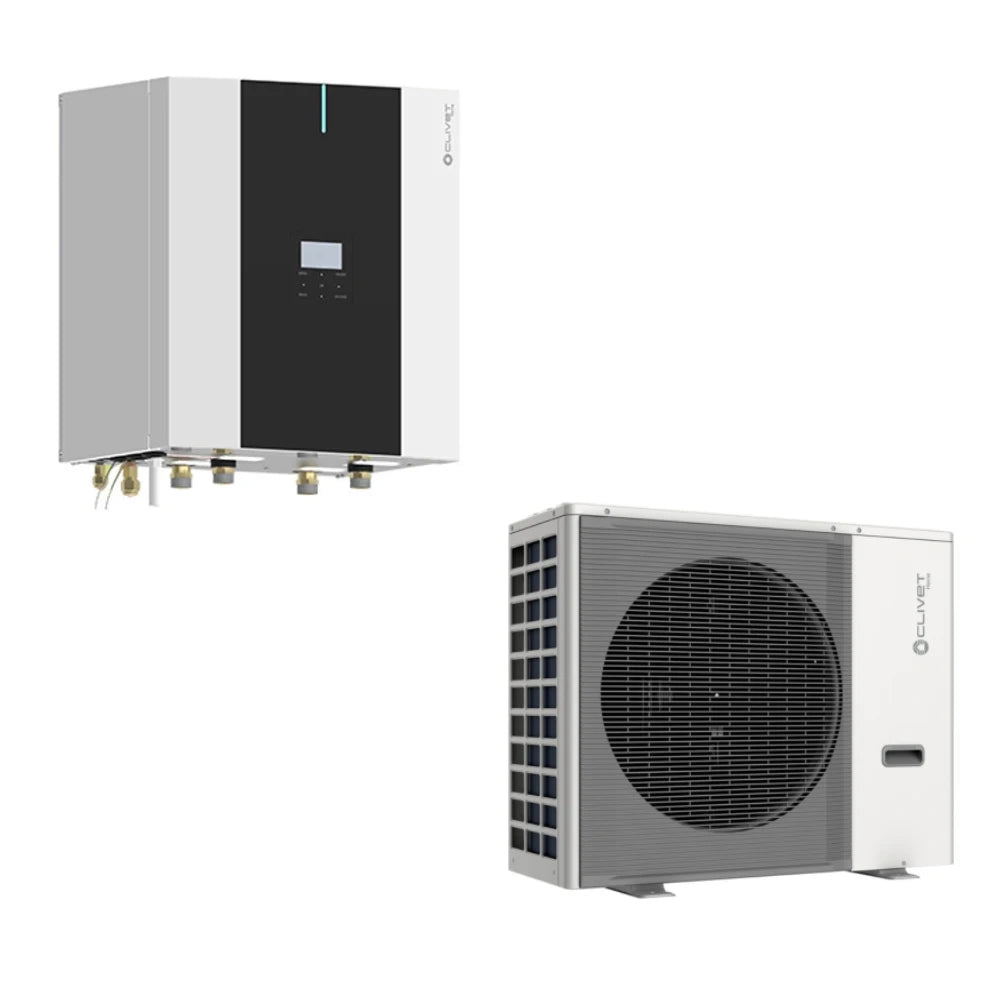

Split system design:

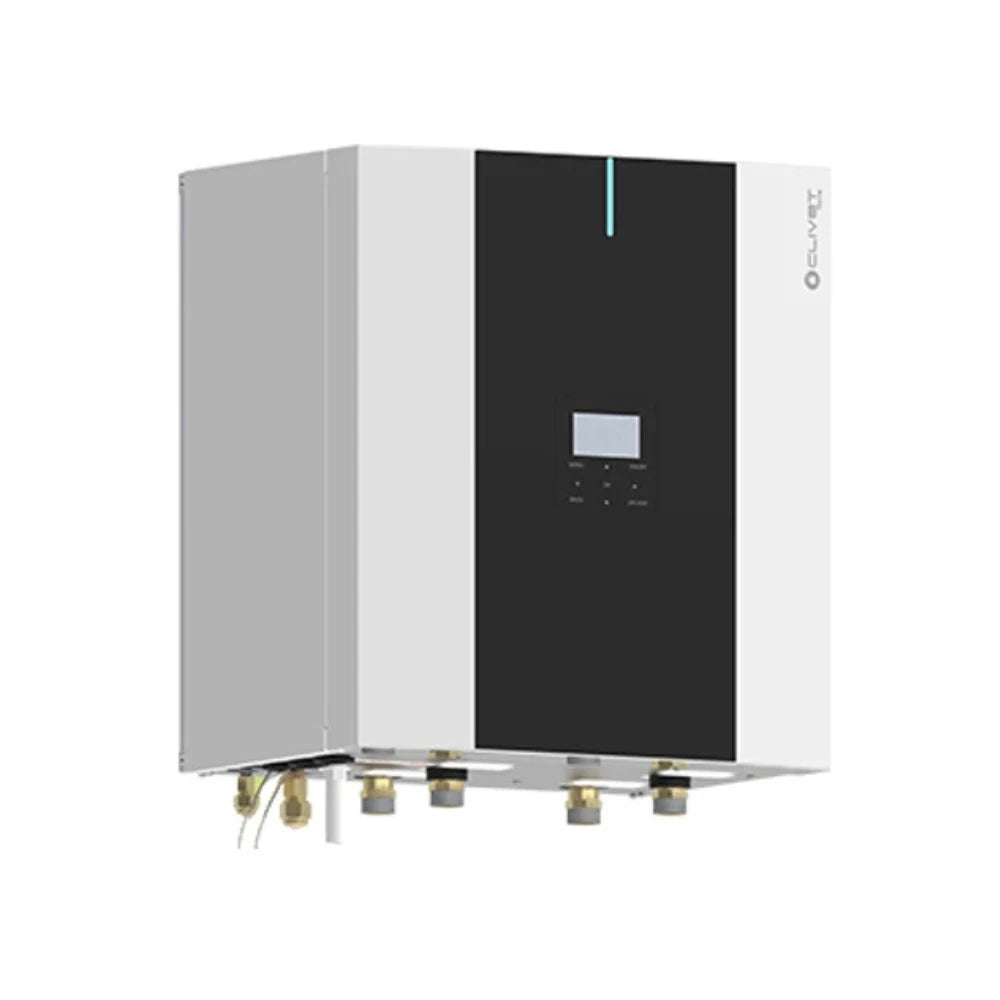

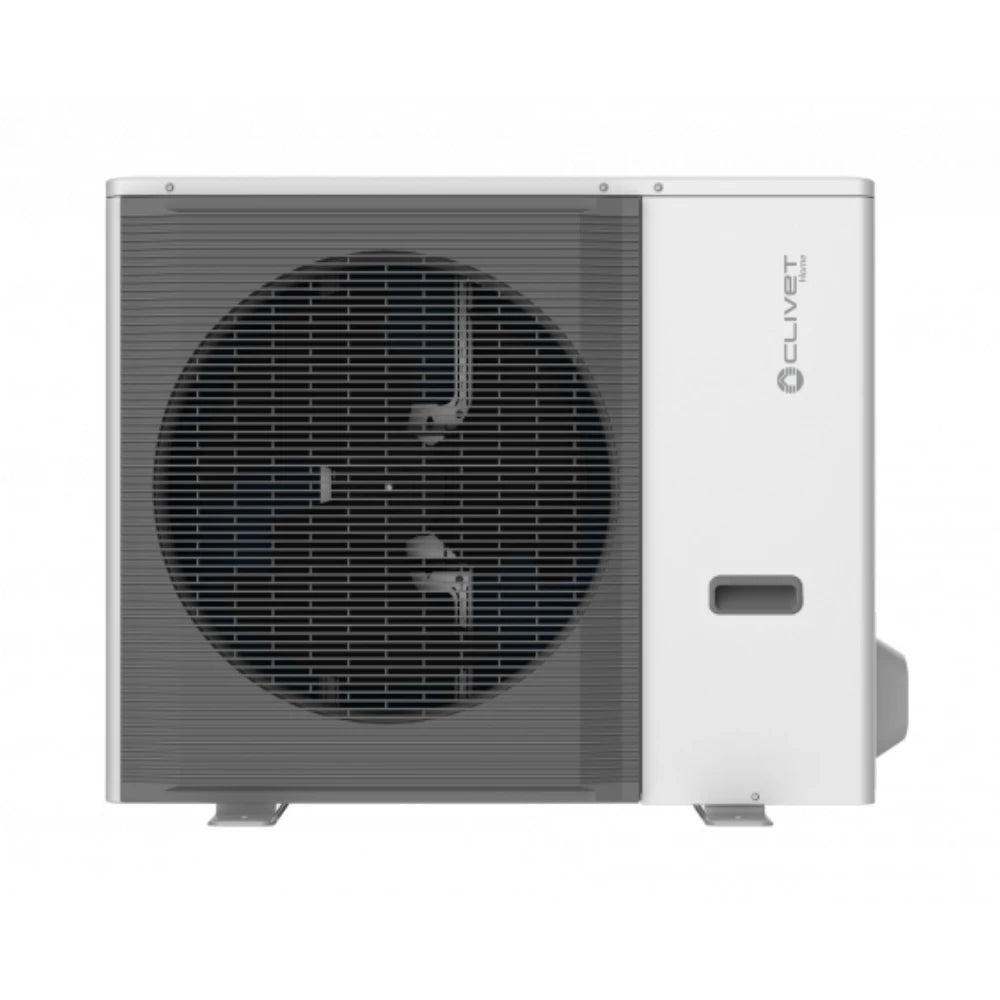

The indoor unit contains the hydraulic components (pump, expansion tank, etc.), while the outdoor unit contains the heat exchanger and compressor – this allows for flexible installation and easy maintenance.
Wide operating range:
Reliable operation between -25 °C and +35 °C; maximum supply water temperature of 65 °C even without a domestic hot water tank.
Quiet operation:
Outdoor unit sound pressure level as low as 42–53 dB(A), indoor unit only 26 dB(A) – ideal for residential areas.
Modern control:
Control is available via application, weekly timer, and Modbus protocol; fully smart home compatible.
Compatible with external DHW tanks:
The system can be connected to any suitably sized and designed hot water storage tank if required.
Recommendation
The Clivet MISAN split heat pump is recommended for customers looking for a modern, economical, and highly controllable heating-cooling solution without a DHW tank. It is ideal for low-temperature heating systems, such as underfloor heating, fan coils, or low-temperature radiators.
Specifications
Specifications
-
ManufacturerClivet
-
DesignDistributed
-
ApplicationFor heating and cooling
-
Rated heating capacity (A7/W35)16.8 kW
-
COP (A7/W35)4.55
-
Rated cooling capacity (A35/W18)16.4 KW
-
EER (A35/W18)3.65
-
Energy efficiency (35°C supply)A+++
-
Energy efficiency (55°C supply)A++
-
Energy efficiency (hot water production)-
-
SCOP (W35)4.89
-
SCOP (W55)3.48
-
Noise level (heating) - outdoor66 dB(A)
-
Integrated hot water tankNone
-
Electric heating element-
-
RefrigerantR32
-
Max. supply temperature65 °C
-
Power consumption (A7/W35) - heating-
-
Power consumption (A35/W18) - cooling-
-
Operating range (heating)-25 °C ↔ 35 °C
-
Operating range (cooling)-5 °C ↔ 43 °C
-
Outdoor unit height866 mm
-
Outdoor unit width1042 mm
-
Outdoor unit depth444 mm
-
Outdoor unit total weight62 kg
-
Outdoor unit power supply3 phases
-
Outdoor unit fuse-
-
Indoor unit height604 mm
-
Indoor unit width547 mm
-
Indoor unit depth389 mm
-
Indoor unit total weight60 kg
-
Indoor unit power supply-
-
Indoor unit fuse-
