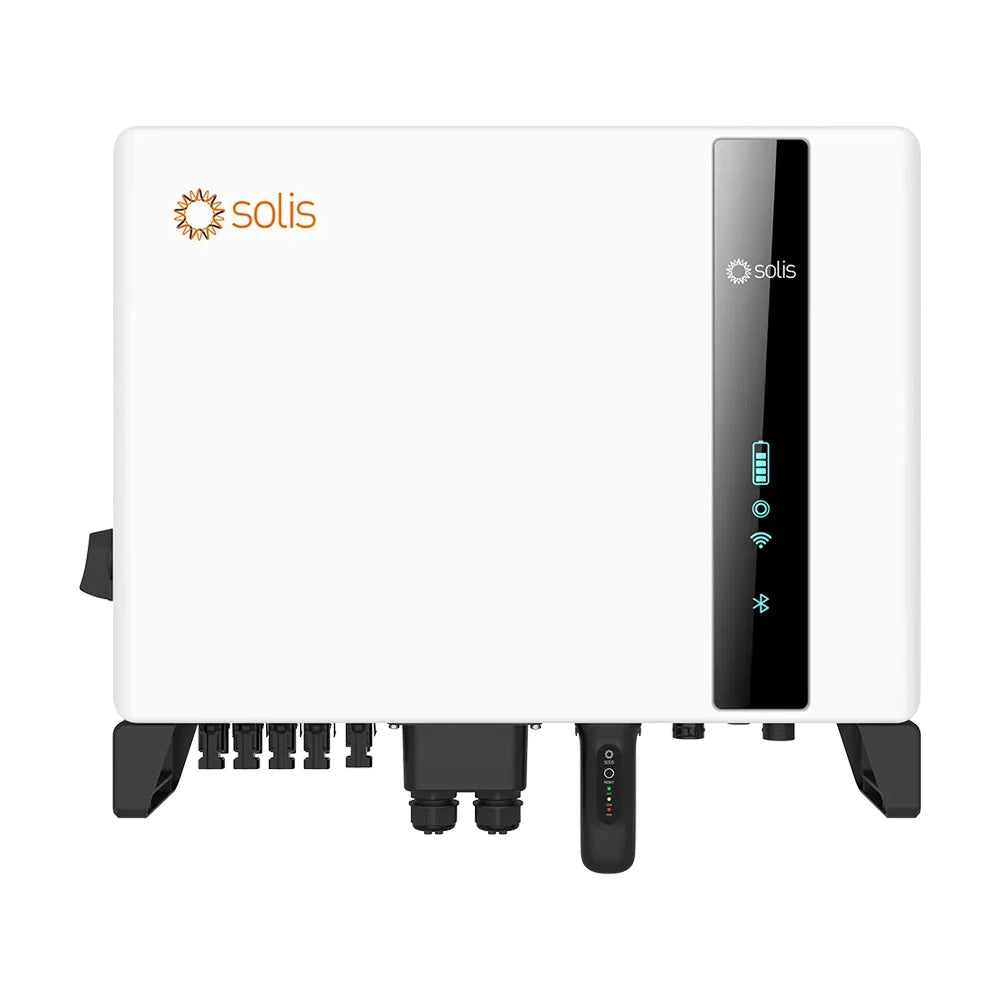

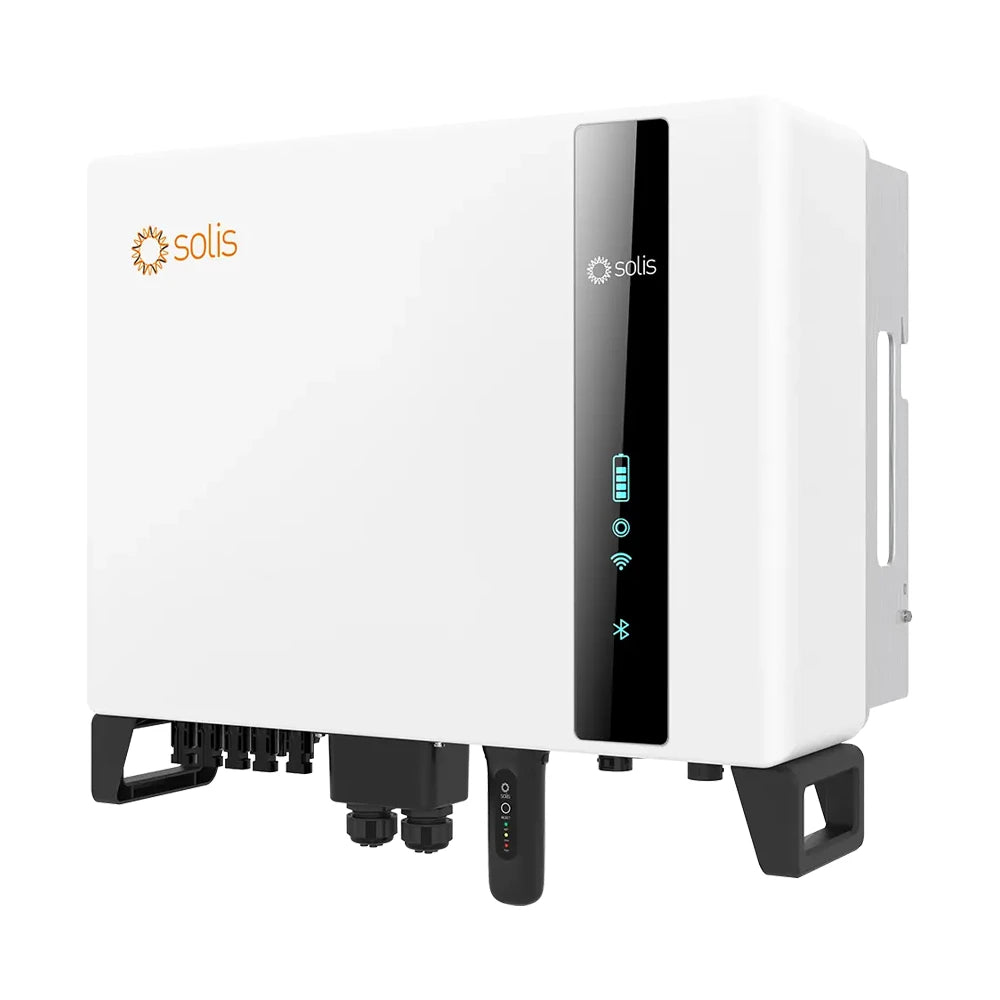

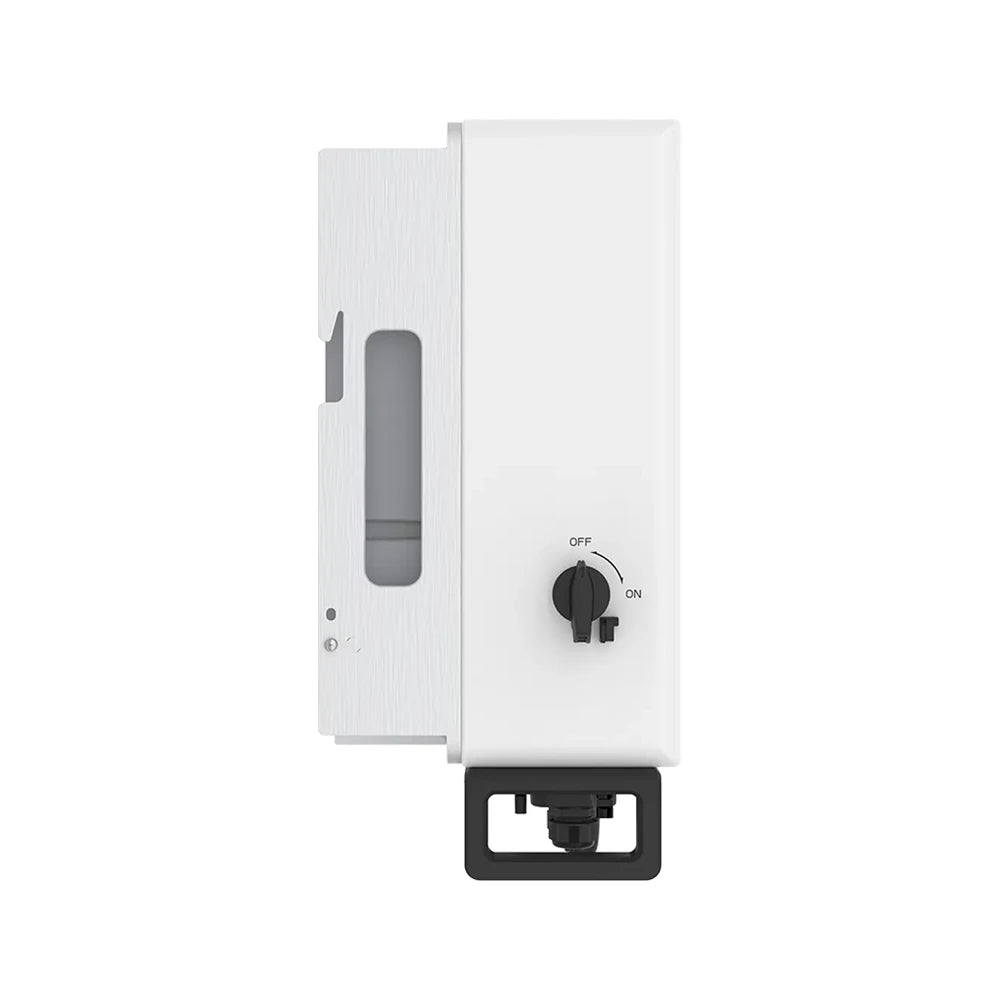

Solis S6 hybrid asymmetric hybrid inverter 5kW, 3 phase

The Solis S6-EH3P(3-10)KH-EU is a state-of-the-art three-phase hybrid inverter designed for residential and small commercial energy storage systems. The inverter allows the connection of solar panels and high-voltage lithium-ion batteries, ensuring daytime energy consumption, battery charging, and nighttime supply. It is characterized by high efficiency, intelligent energy management, and outstanding compatibility, making it an ideal choice for maximizing self-consumption.

Main Features

Flexibility and high performance:

• Available in several power versions (3–10 kW nominal power).
• Support 2/3/4 MPPT inputs for solar arrays with different orientations.
• Up to 50 A/10 kW charging and discharging power to meet high energy demands.
• Compatible with high-voltage lithium-ion batteries from many manufacturers (voltage range 120-600 V).

Reliable operation and protection:

• Automatic UPS function with <10 ms transfer time in case of power failure.
• It also supports peak load balancing and unequal phase loading.
• System with extensive protection (overcurrent, short circuit, overvoltage, reverse polarity protection).
• Enhanced battery protection for longer life.

Efficiency and energy optimization:

• Max. efficiency: up to 97.9%, EU efficiency: 97.5%.
• Excellent PV–battery charging efficiency: up to 98.45%.

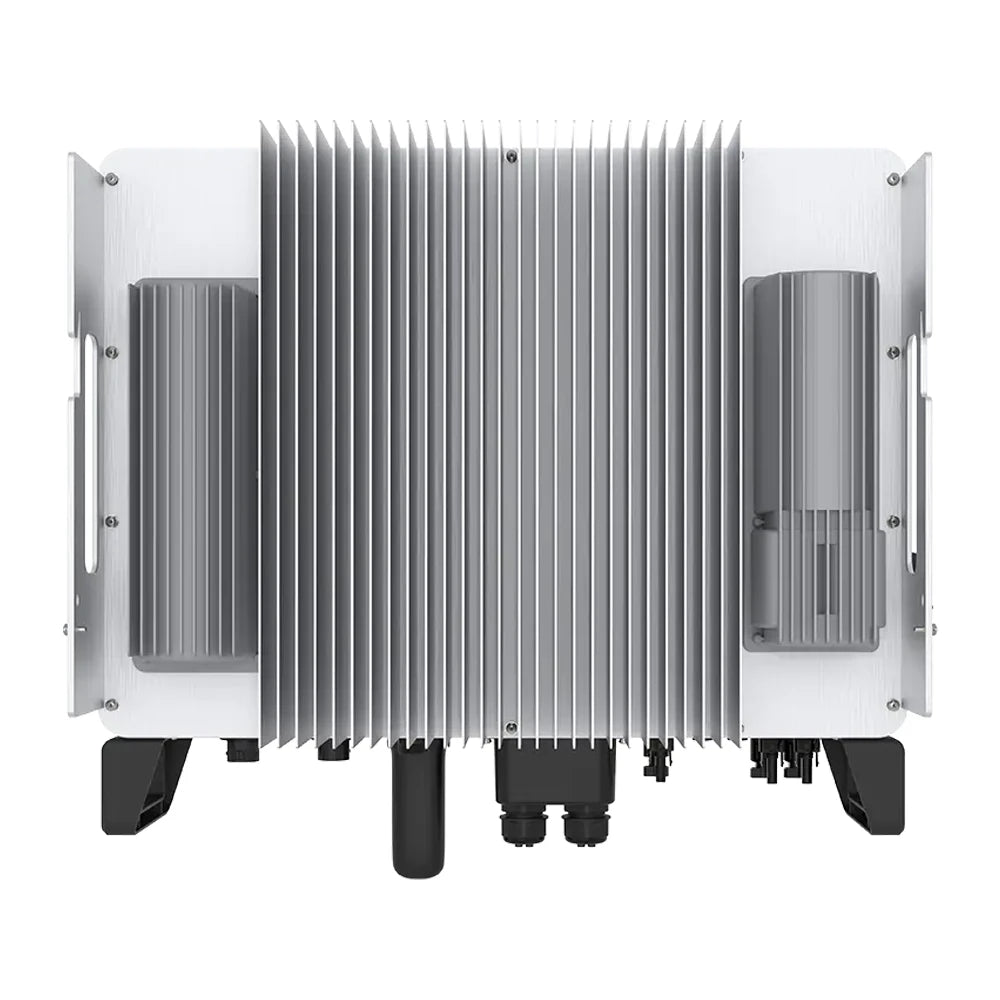

• Naturally cooled design, low noise level (<46.9 dB), IP66 protection for outdoor installation.

Installation and control:

• Pre-assembled battery, gauge and CAN wiring for faster installation.
• LED display, Bluetooth and optional Wi-Fi/Cellular/LAN connections.
• Remote monitoring: SolisCloud platform and mobile application.

Recommendation

The Solis S6-EH3P(3-10)KH-EU inverter is an ideal choice for residential or small business users looking for a reliable, intelligent and high-performance hybrid solution for their energy storage system. Its high efficiency, wide battery compatibility and advanced protection features make it a long-term, future-proof investment.
