BYD Battery-Box Premium HVS/HVM Combiner Box
Regular price
161.401 Ft
Unit price
/
Unavailable
Description
Description

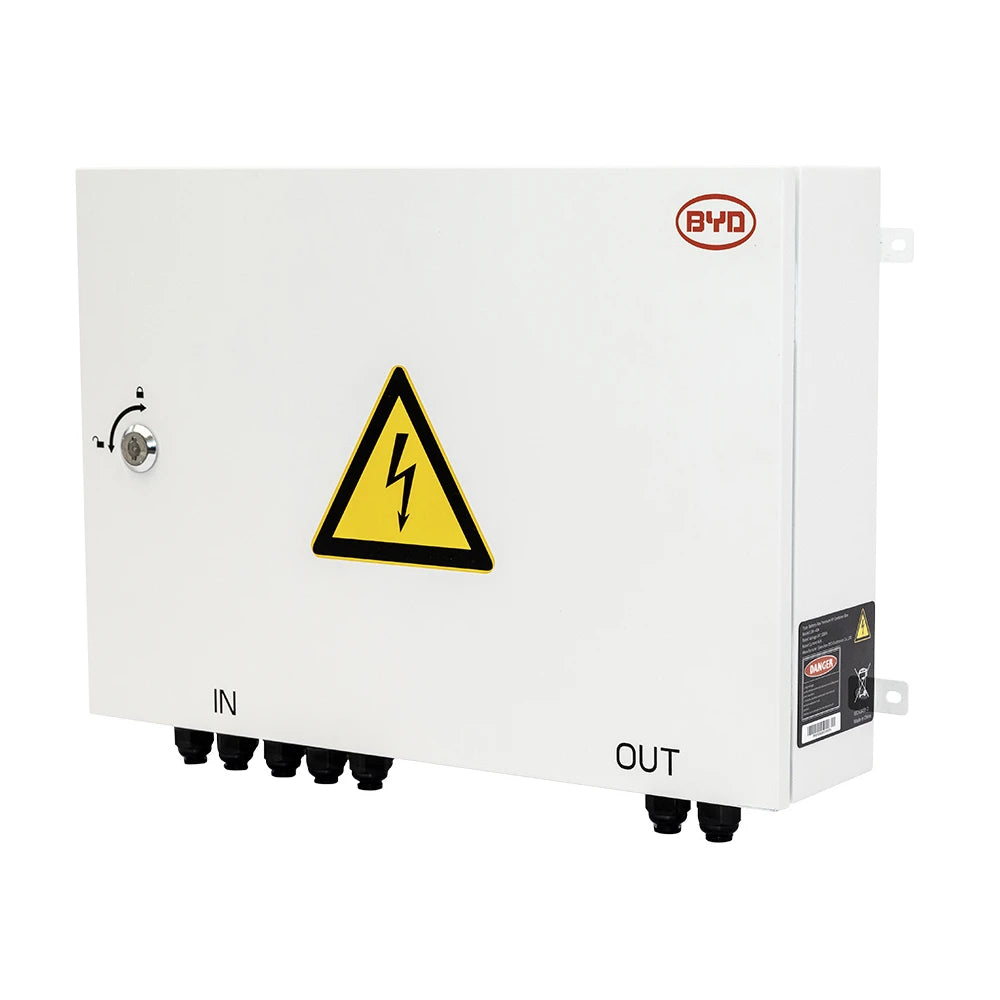

The BYD Battery-Box Premium HVS/HVM Combiner Box is a practical and safe solution for parallel connection of BYD Battery-Box Premium HVS and HVM battery towers. The system allows combining 2 or 3 battery towers with a single DC cable to the inverter, simplifying the installation process and increasing energy efficiency.
Important features
- With the Combiner Box, up to 3 Battery-Box Premium HVS or HVM towers can be connected in parallel.
- It ensures simple and reliable design of DC cabling connections.
- A single DC cable is required for the inverter, reducing installation complexity.
- Only compatible with BYD Battery-Box Premium HVS and HVM batteries.
- For proper operation, towers containing the same amount of modules can be connected.
- HVS and HVM systems cannot be combined with each other.
- Battery towers and modules must be at the same state of charge (SOC) when installed.
Technical data
- Maximum number of towers: 3 Battery-Box Premium HVS or HVM
- Maximum input current per tower: 35 A
- Maximum output current: 40 A
- Maximum operating voltage: 1000 V DC
- Dimensions (H x W x D): 350 x 540 x 120 mm
- Weight: 9.7 kg
- Protection rating: IP55 (dust and water resistant, suitable for outdoor use)
- DC input cable entries: 6 × M20 × 1.5
- DC output cable entries: 2 × M20 × 1.5
- DC conductor cross-section: 6 mm² - 16 mm²
- Grounding wire cross-section: 10 mm² - 16 mm²
Advantages
- Easy expansion and installation: Thanks to parallel connection, greater energy storage capacity can be achieved.
- Safe and stable operation: Premium quality design ensures long-term and reliable performance.
- High energy efficiency: Through optimized cabling and low losses.
Recommendations
The BYD Battery-Box Premium HVS/HVM Combiner Box is the ideal choice for those who want to integrate multiple Battery-Box batteries into one system and are looking for a reliable, easy-to-install, long-term stable solution. Thanks to its modular design, it can be easily adapted to the needs of the specific application, whether it is residential, commercial or industrial energy storage systems.
