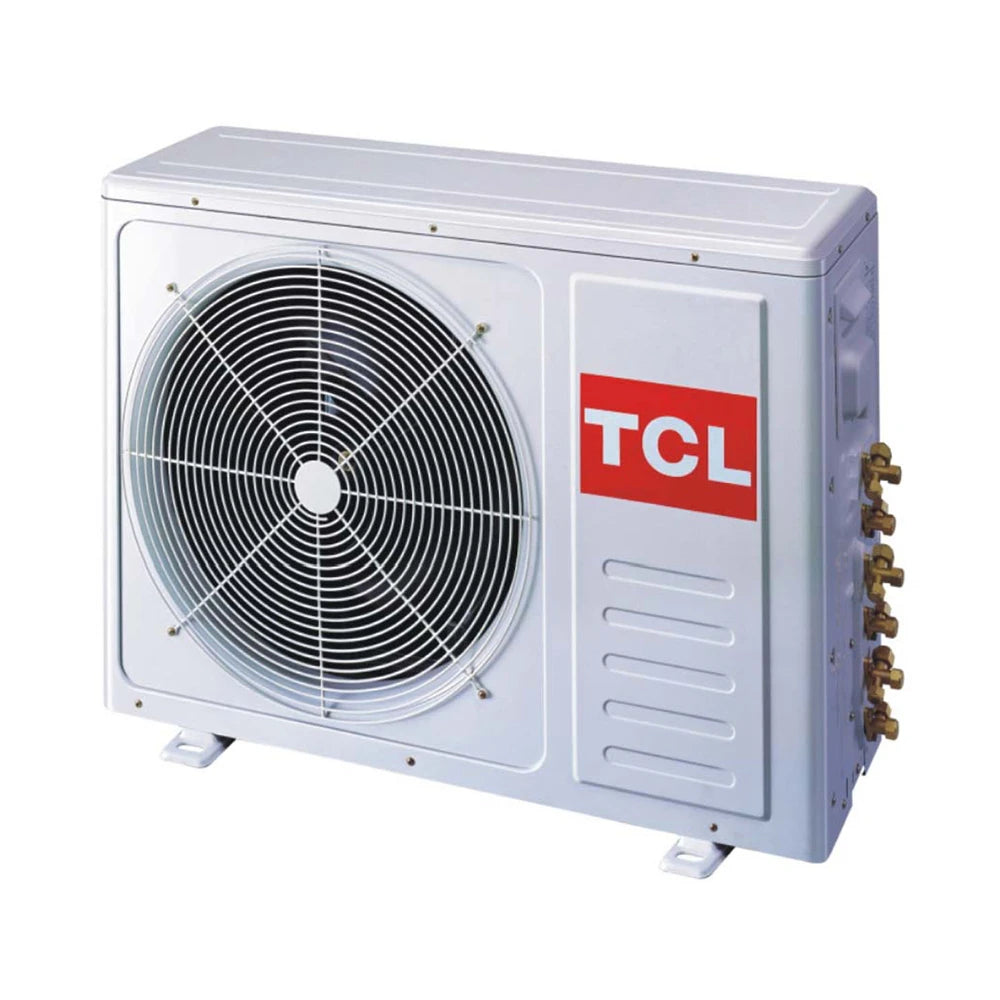

TCL multi-split air conditioner outdoor unit 9.4kW - with drip tray heater (max. 4 indoor units)

TCL Multi split outdoor units are an ideal choice for homes and smaller commercial spaces where only one outdoor unit can be placed, but several indoor zones require air conditioning. Up to four indoor units can be connected to a single outdoor unit – in wall-mounted, cassette, or ducted designs.

The following variants are available:

• TCL multi-split outdoor unit 5.2 kW – with drip tray heating (max. 2 indoor units)
• TCL multi-split outdoor unit 7.9 kW (max. 3 indoor units)
• TCL multi-split outdoor unit 9.4 kW – with drip tray heating (max. 4 indoor units)

All three models offer energy-efficient, reliable operation – even in winter cold down to -20 °C. The TCL multi-split system provides long piping possibilities and smart control over a wide voltage range.

Key features:

• Multiple indoor units: Up to 2–4 indoor units can be connected to one outdoor unit.
• Flexible indoor unit choice: Compatible with wall-mounted, cassette, and ducted units.
• Energy efficiency: SEER/SCOP value: up to 6.1 / 4.0 | Energy class: A++ / A+
• Operation at extreme temperatures: Heating down to -20 °C, cooling up to +60 °C outdoor temperature.
• Blue Fin and Gold Fin coatings: Inhibit corrosion, extend the lifespan of heat exchangers.
• Drip tray heating and built-in condensate pump: Reliable operation even in freezing weather.
• Built-in refrigerant leak detector: Safer operation with error code display.
• Smart control (WiFi, voice control): Controllable via the TCL Home application.
• Turbo mode, ECO mode, automatic defrost: Maximum comfort, minimal energy consumption.
• Silent mode, night mode, timer, self-diagnosis: User-friendly operation in all environments.

Recommendation:

TCL multi-split outdoor air conditioning units are ideal for condominiums, family homes, or offices where multiple rooms need cooling or heating, but the placement options for outdoor units are limited. With a flexible selection of indoor units and outstanding efficiency, this solution offers excellent value for money.
