Solplanet  |  SKU: SOLPLANET-ASW-50K-LT-G3

Solplanet ASW 50K-LT-G3 On-Grid Inverter 50kW - 3-phase

758.494 Ft
Tax included

You can also pay in EUR (€)

Do you have a question?

Product related question? Contact us:

Monday - Friday: 08:00 - 16:00

+36 20 220 3049 | +36 70 513 3558

info@energiamegujitas.hu

Payment and shipping

Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.

Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

  • Small package: HUF 3,790
  • Large package: HUF 6,490
  • Heat pump: free shipping
  • Solar panel and battery: individual shipping fee (based on size, weight, and quantity)

Description

The 45-60 kW versions of the Solplanet ASW LT-G3 series are three-phase, grid-tied string inverters for higher-power solar systems. These models can be used in on-grid designs without battery energy storage, where significant PV-side power management is required.

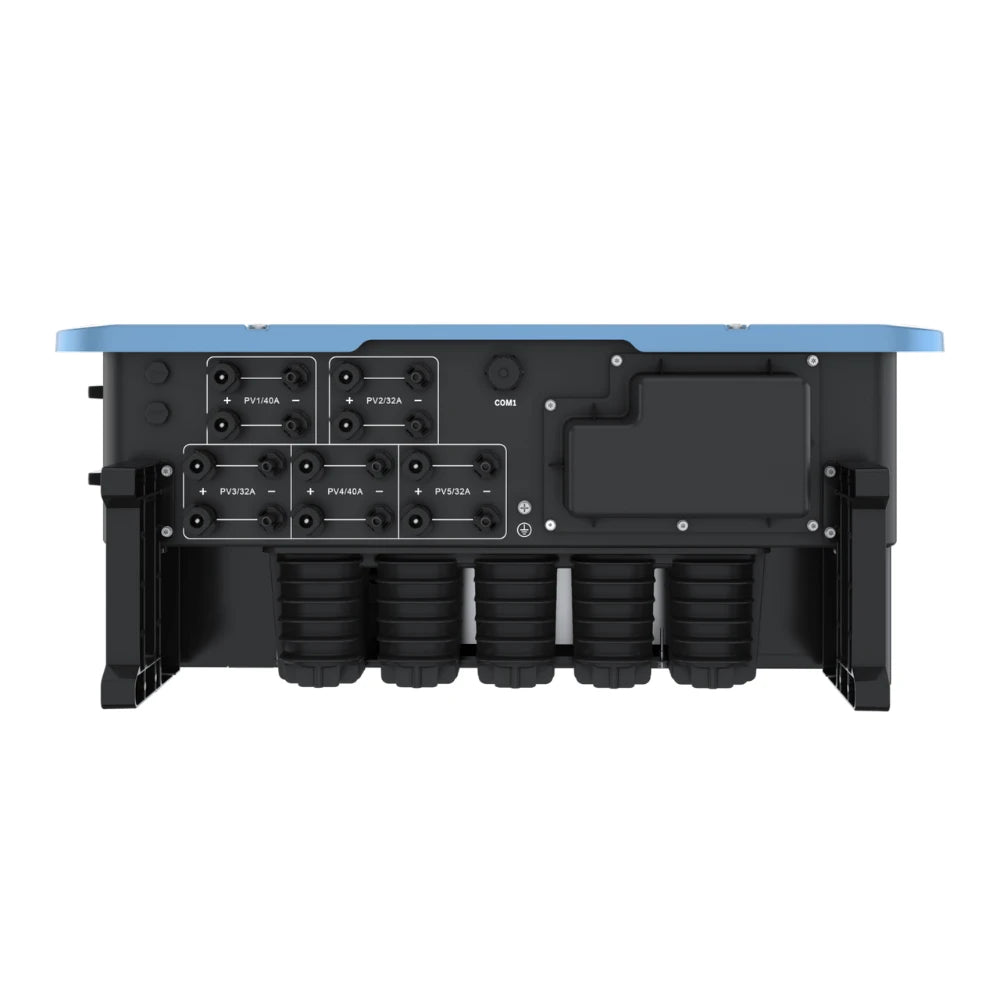

Depending on the model, the inverters have 4 or 5 independent MPP trackers. The MPP voltage range is 200–1000 V, and the maximum DC input voltage is 1100 V. The multi-MPPT design can be advantageous for larger roof areas, PV arrays with multiple orientations, or different string configurations.

The series supports 150% PV oversizing, allowing for a larger solar array than the inverter's rated AC power within the manufacturer's limits. The maximum PV array power ranges from 67.5–90 kWp, depending on the model. The devices support a maximum input current of 20 A per string, and the maximum input current per MPPT branch can be 32–40 A.

ShadeSol shade management can help mitigate production losses due to partial shading. Built-in DC switches, as well as Type II AC and DC overvoltage protection, support a safer system design without additional accessories.

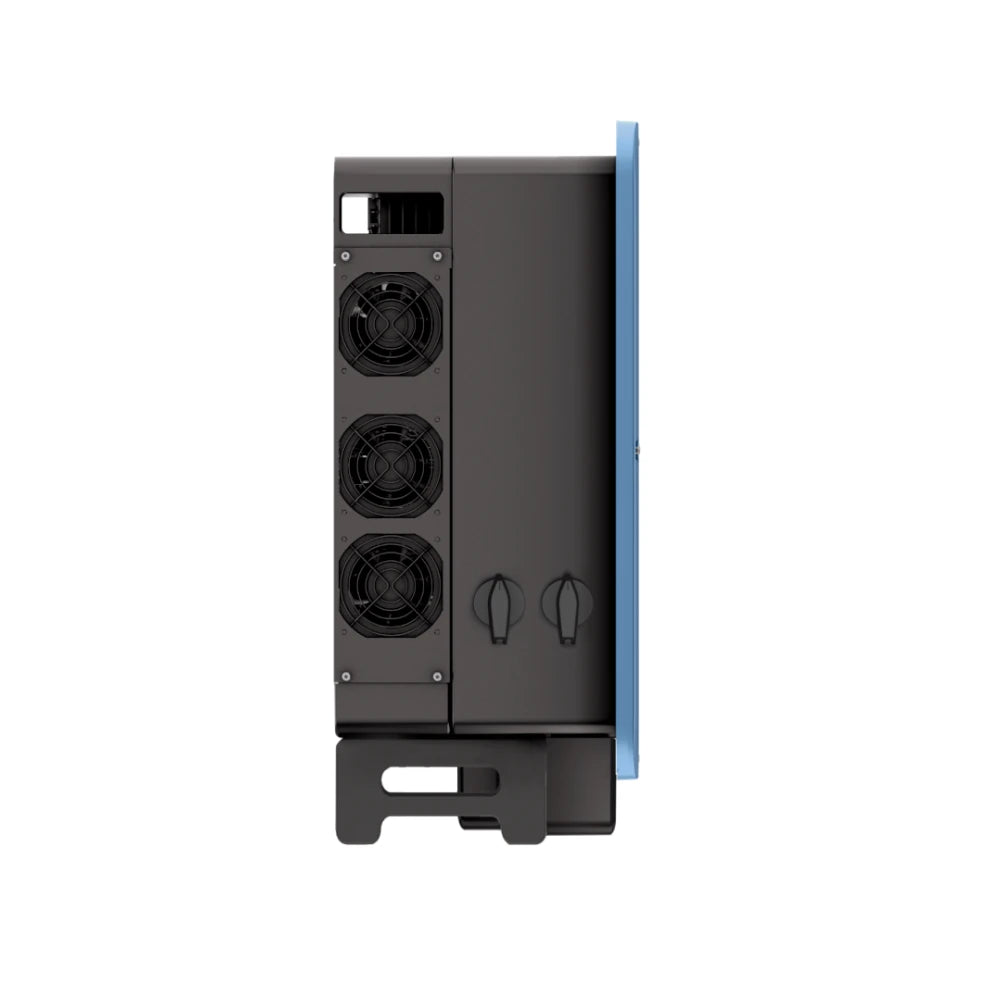

The IP66-rated enclosure makes the inverter suitable for outdoor installation. Cooling is performed by an active system, adapted for higher power operation. Communication is available as a basic function via RS485 and Wi-Fi, and optionally via LAN and 4G connections.

Key features in brief:

  • Three-phase, grid-tied string inverters
  • For higher-power solar systems
  • Power range: 45–60 kW
  • For on-grid systems without battery storage
  • 4 or 5 independent MPP trackers, depending on the model
  • Maximum PV array power: 67.5–90 kWp
  • MPP voltage range: 200–1000 V
  • Maximum DC input voltage: 1100 V
  • Maximum input current of 20 A per string
  • Maximum input current: 32–40 A per MPPT branch
  • Supports 150% PV oversizing
  • Maximum efficiency: 98.6%, European efficiency: 98.3%
  • IP66 protection for outdoor installation
  • Active cooling
  • ShadeSol shade management
  • Built-in DC switches
  • Type II AC/DC overvoltage protection
  • RS485 / Wi-Fi / optional LAN / optional 4G communication

The Solplanet ASW LT-G3 45–60 kW series can be used for larger three-phase solar systems where a multi-MPPT PV design, higher PV-side power, and reliable grid-connected operation are required.
