Description
Description
The Solis S6-EH3P-NV-YD-L series of three-phase, low-voltage hybrid inverters are available in 8, 10, 12, and 15 kW power ratings. The units can be used for grid-tied, battery-powered, and backup power supply systems.
The inverters work with lithium-ion or lead-acid batteries with a voltage range of 40–60 V. The maximum charge and discharge current is 180–290 A, depending on the model. Battery communication is via CAN or RS485 connection.
Three-phase asymmetric operation allows power distribution per phase. Up to 50% of the inverter's rated power can be used on a single phase. The system supports DC and AC coupling, generator connection, and the parallel operation of up to six inverters.
In the event of a power outage, the backup power output switches over in less than 10 ms. In off-grid mode, the inverter can provide twice the rated power for 10 seconds.

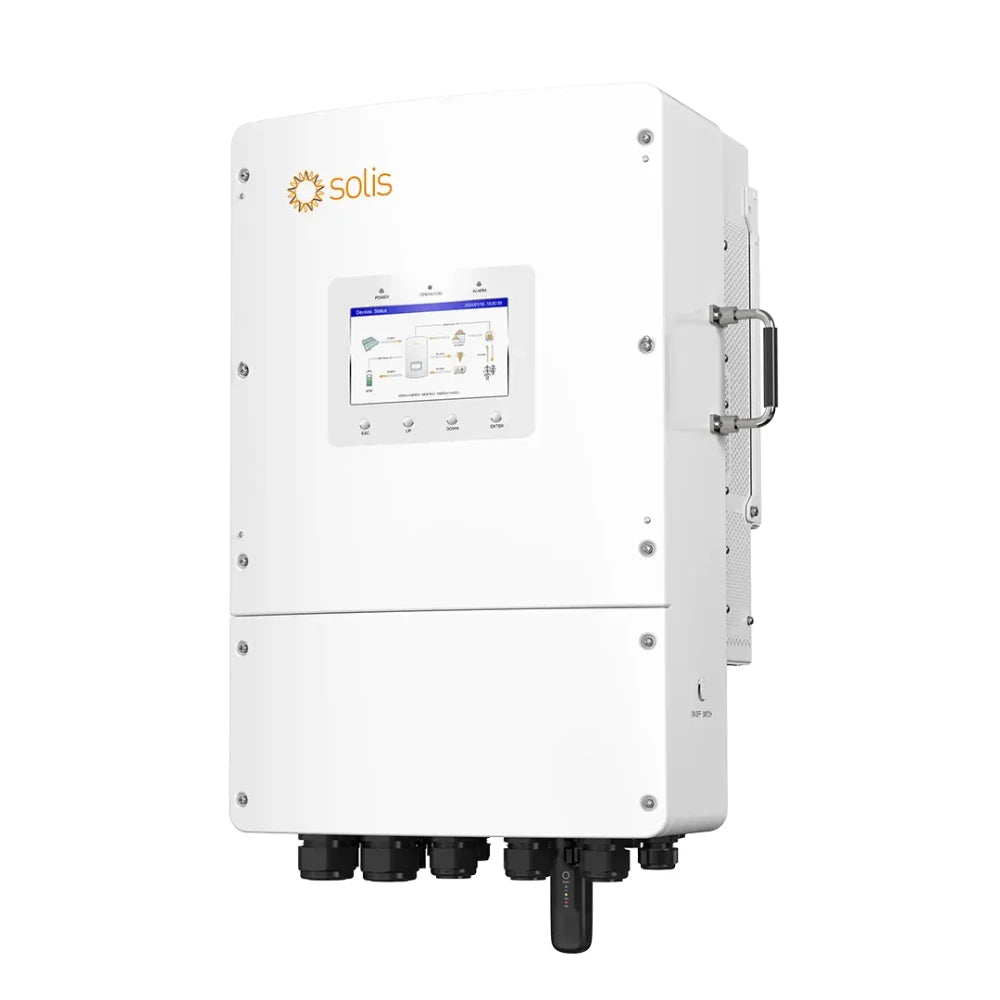

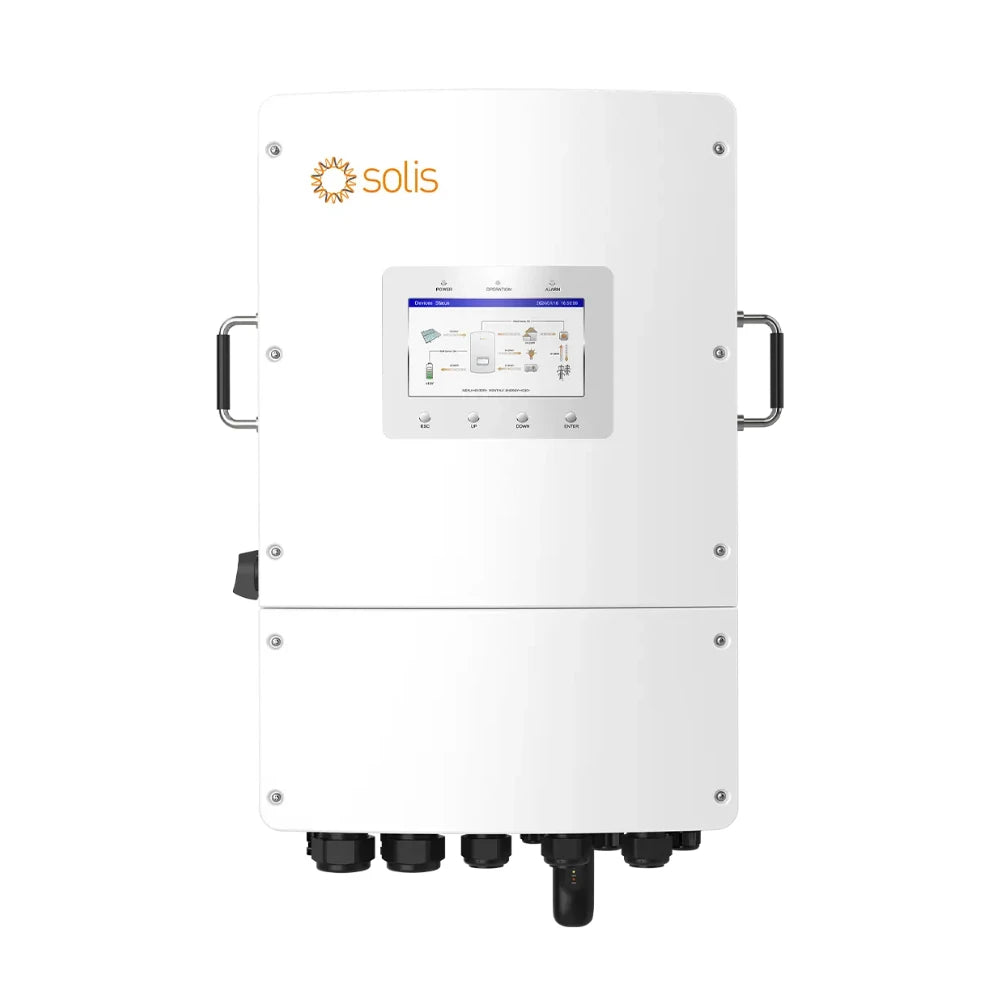

The IP66-rated units feature multiple built-in safety functions and optional AFCI 2.0 arc fault protection. For local control, a 7-inch LCD display is available, and for remote monitoring, Wi-Fi, LAN, Bluetooth, and SolisCloud connectivity are provided.
Key Features
Power range: 8–15 kW
Design: three-phase, asymmetric hybrid inverter
Battery voltage: 40–60 V
Battery type: lithium-ion or lead-acid
Charge and discharge current: 180–290 A
Power per phase: up to 50% of rated power
System coupling: DC and AC coupling
Generator connection: supported
Parallel capability: up to 6 inverters
Switchover time: less than 10 ms
Backup power peak output: double power for 10 seconds
Maximum efficiency: 97.5%
Protection rating: IP66
Display: 7-inch LCD
Remote monitoring: Wi-Fi, LAN, Bluetooth, and SolisCloud
Arc fault protection: optional AFCI 2.0
