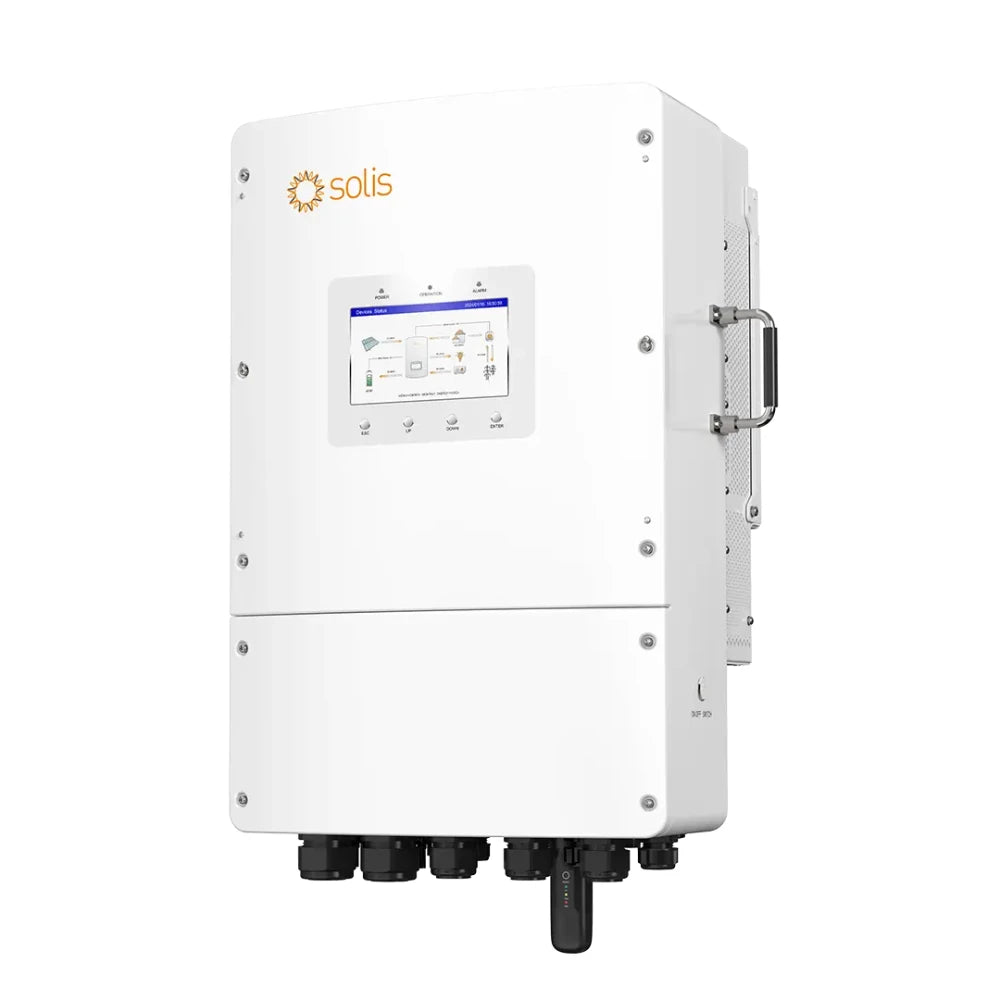

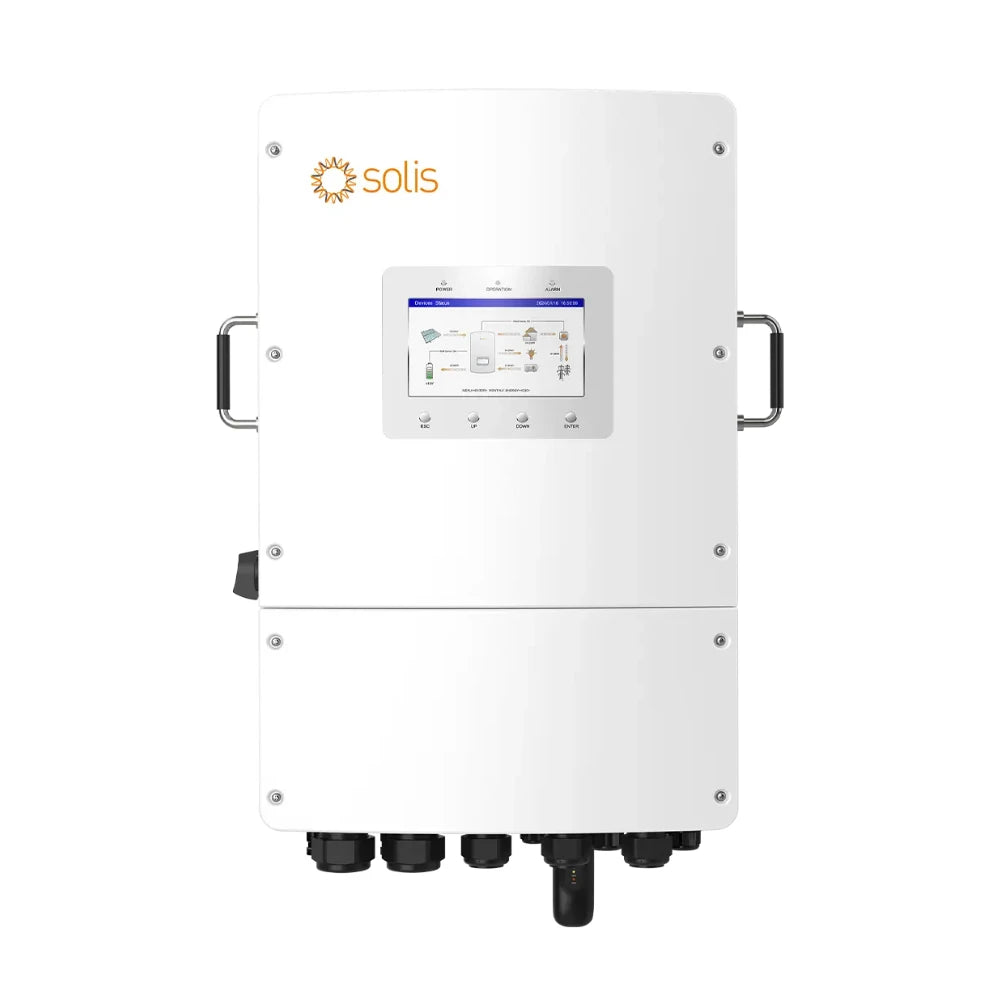

Solis S6-EH3P12K02-NV-YD-L Asymmetric Hybrid Inverter 12kW - 3-phase, Low Voltage (LV)
Solis S6-EH3P12K02-NV-YD-L Asymmetric Hybrid Inverter 12kW - 3-phase, Low Voltage (LV) is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.
Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
Solis S6-EH3P12K02-NV-YD-L Asymmetric Hybrid Inverter 12kW - 3-phas...
Description
Description
The Solis S6-EH3P-NV-YD-L series of three-phase, low-voltage hybrid inverters are available with capacities of 8, 10, 12, and 15 kW. These devices can be used for grid-connected, battery-powered, and backup power supply systems.
The inverters operate with 40–60 V lithium-ion or lead-acid batteries. The maximum charge and discharge current ranges from 180–290 A, depending on the model. Battery communication is via CAN or RS485 connection.
Three-phase asymmetric operation allows power to be distributed phase by phase. Up to 50% of the inverter's rated power can be used on a single phase. The system supports DC and AC coupling, generator connection, and the parallel operation of up to six inverters.
In the event of a power outage, the backup power output switches over in less than 10 ms. In island mode, the inverter can provide double its rated power for 10 seconds.
The IP66-rated devices feature multiple built-in safety functions and optional AFCI 2.0 arc fault protection. For local operation, there is a 7-inch LCD display, and for remote monitoring, Wi-Fi, LAN, Bluetooth, and SolisCloud connectivity are available.
Key Features
Power range: 8–15 kW
Design: Three-phase, asymmetric hybrid inverter
Battery voltage: 40–60 V
Battery type: Lithium-ion or lead-acid
Charge and discharge current: 180–290 A
Power per phase: Up to 50% of rated power
System coupling: DC and AC coupling
Generator connection: Supported
Parallelability: Up to 6 inverters
Switchover time: Less than 10 ms
Backup power peak output: Double power for 10 seconds
Maximum efficiency: 97.5%
Protection class: IP66
Display: 7-inch LCD
Remote monitoring: Wi-Fi, LAN, Bluetooth, and SolisCloud
Arc fault protection: Optional AFCI 2.0
