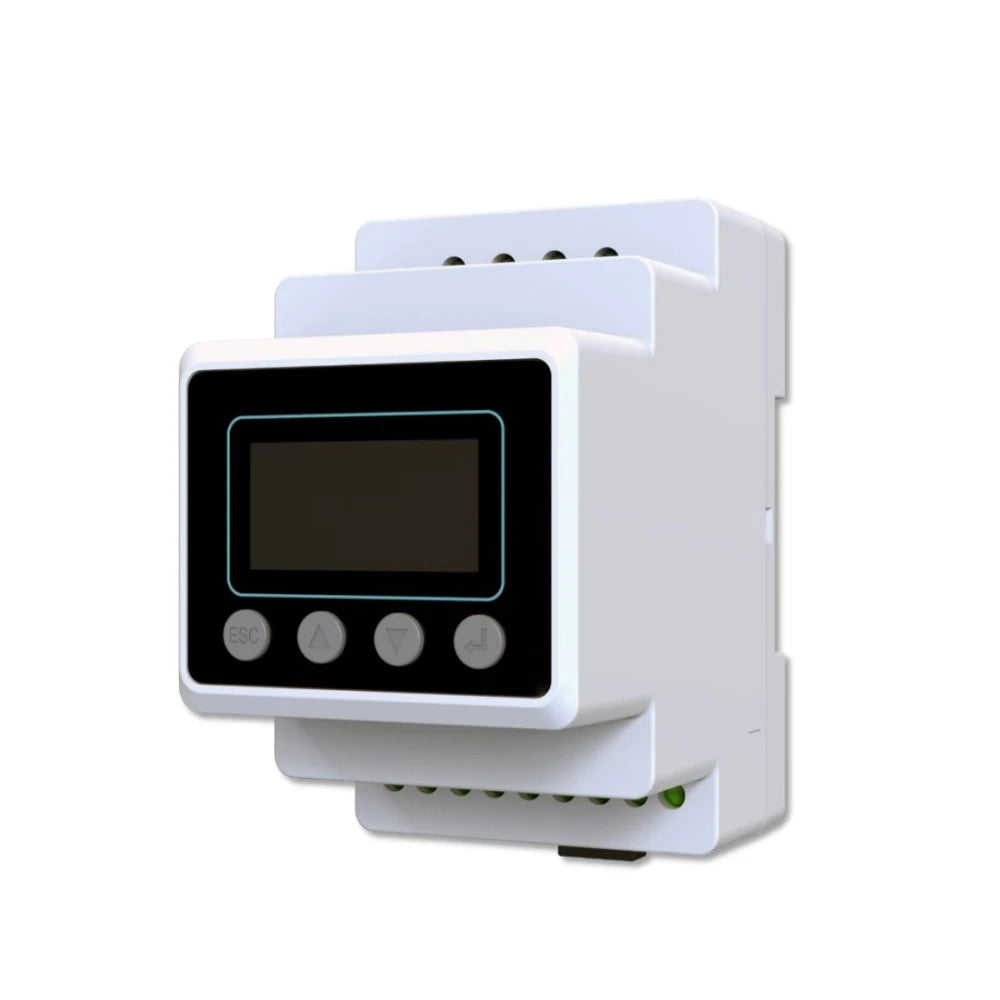

Solinteg RMK-5A Smart Meter (3PH) - without current transformer
Description
Description
Solinteg RMM and RMK Smart Meter units are suitable for three-phase Solinteg inverter systems. These devices are used for consumption metering, system monitoring, and export limitation. They are designed for DIN rail mounting, feature an OLED display, and are intended for indoor installation.
The main difference between the RMM and RMK models lies in their communication options. The RMM versions operate via RS485 Modbus RTU connection. In addition to RS485, the RMK models also support WiFi/LAN communication, making them suitable for systems where network connectivity is required at the meter unit.
The series is available in 5A, 120A, and 300A versions. The 5A versions can be used with external current transformers with a 5A secondary output. The 120A and 300A models are equipped with factory-matched current transformers, with 120A / D16 mm or 300A / D35 mm CT designs.
The meters operate on 3L/N/PE 230/400 V mains at 50/60 Hz frequency. The accuracy of current and voltage measurement is 0.5%. The active and reactive power, as well as the energy class, are rated Class 0.5S.
Key features at a glance:
- Three-phase Solinteg Smart Meter units
- For consumption metering, export limitation, and system monitoring
- RMM: Modbus RTU / RS485 communication
- RMK: Modbus RTU / RS485 + WiFi/LAN communication
- 5A version for external current transformers with 5A secondary output
- 120A / D16 mm or 300A / D35 mm current transformer version
- For 3L/N/PE 230/400 V, 50/60 Hz mains
- OLED display, 35 mm DIN rail mountable design
- IP20 protection, for indoor use
- Measurement accuracy: 0.5%, energy class: Class 0.5S
The Solinteg RMM / RMK Smart Meter series can be used for measurement, export limitation, and consumption data transfer tasks in Solinteg inverter systems.
