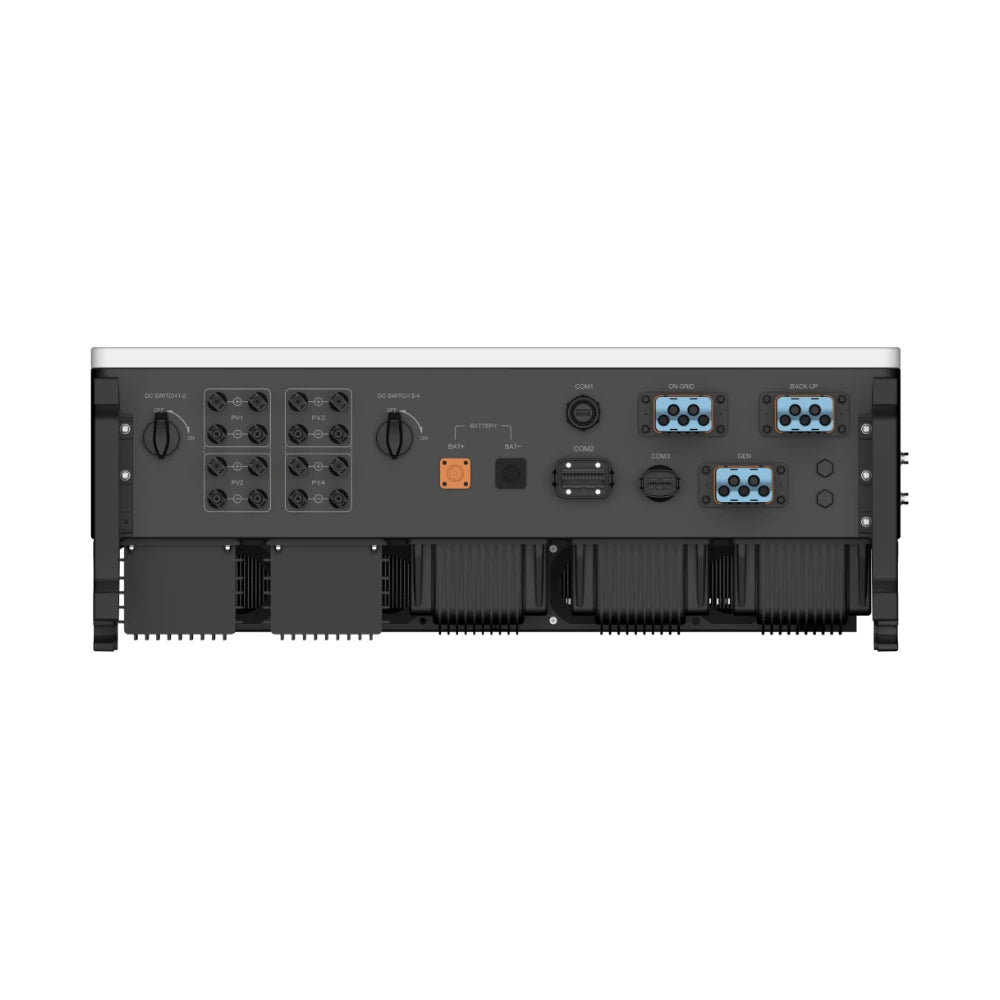

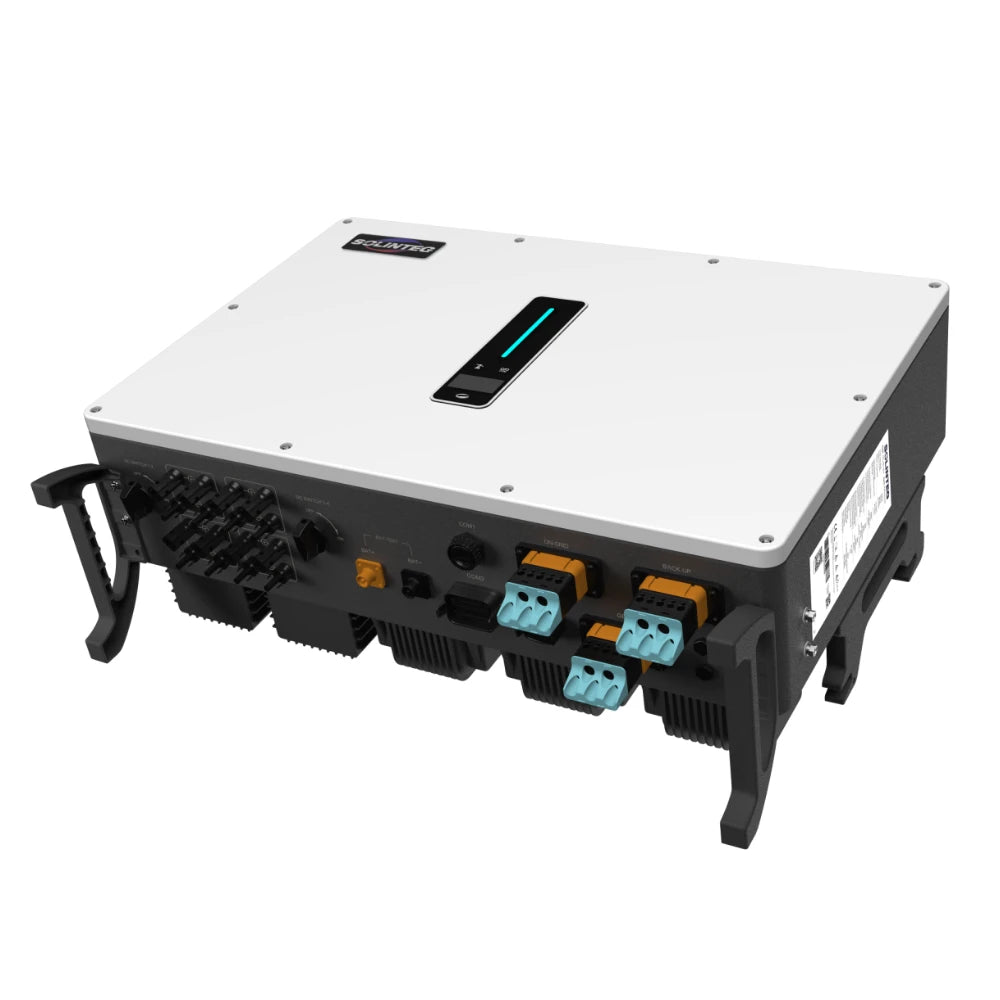

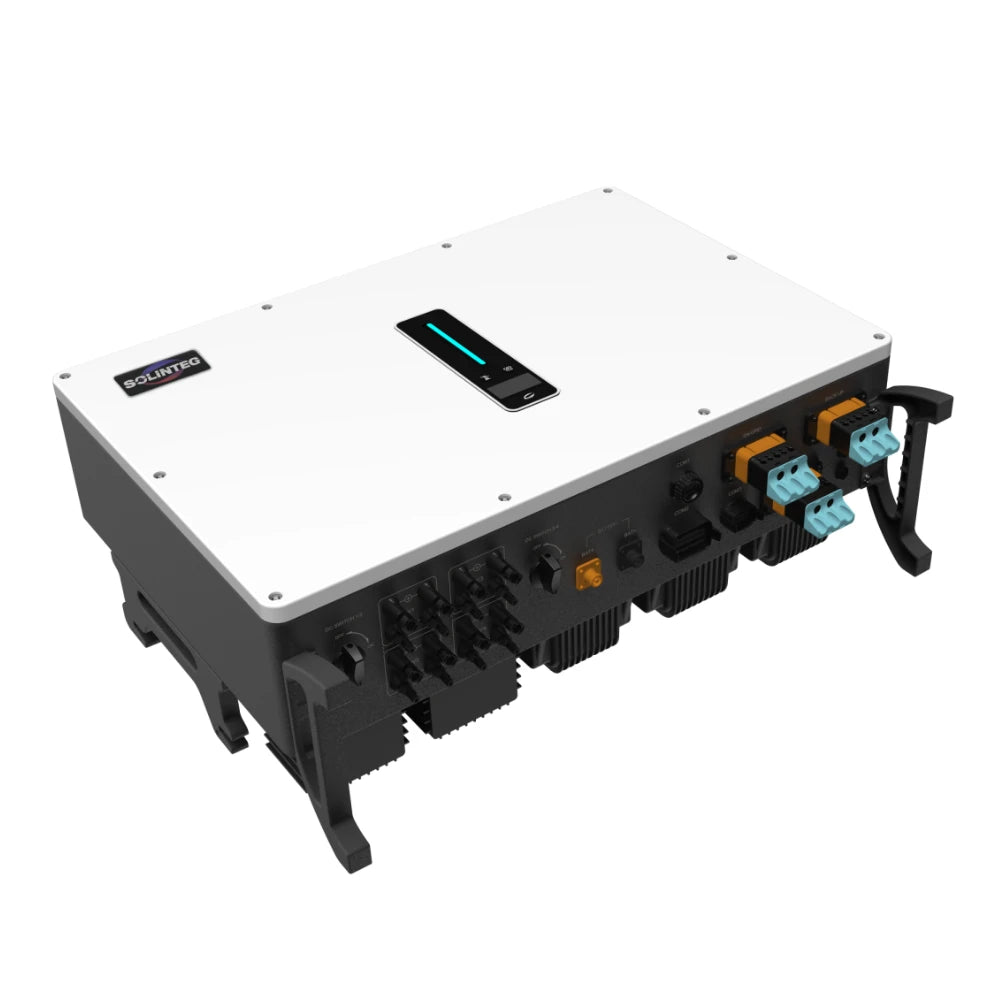

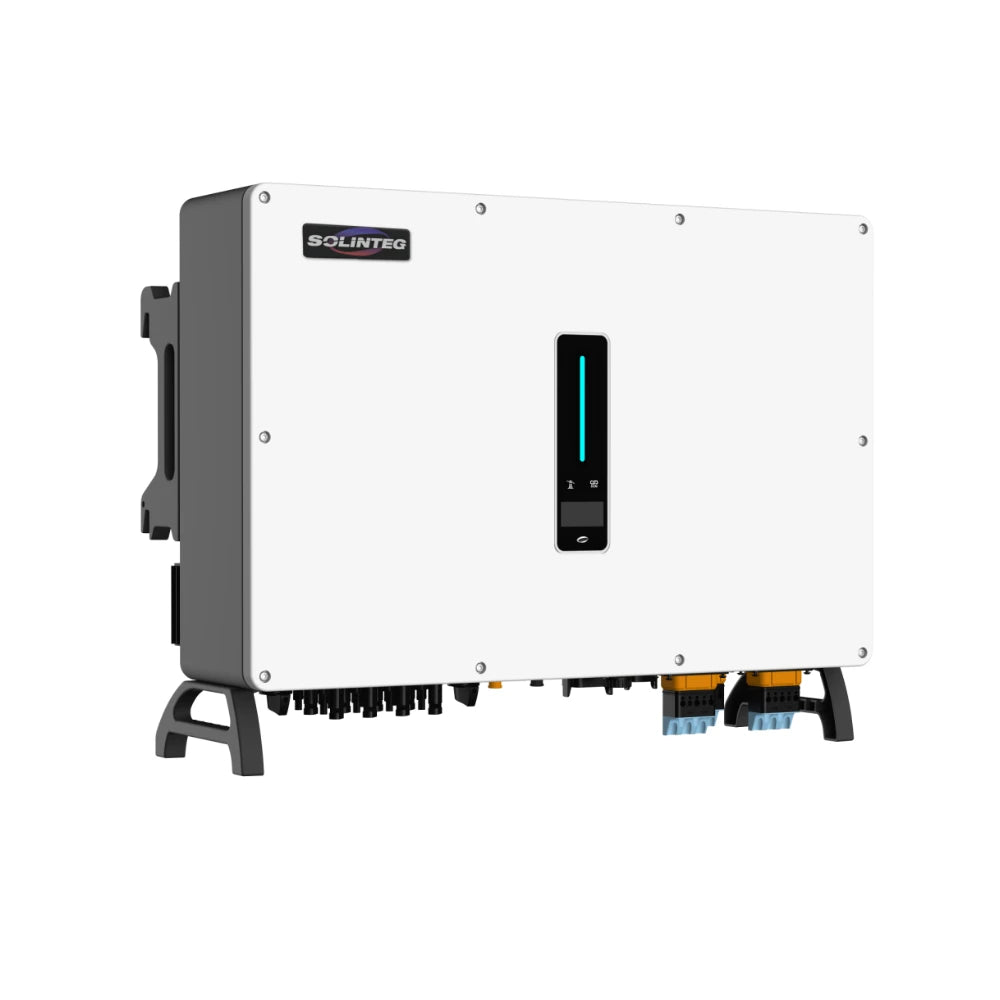

Solinteg MHT-25K-100 Asymmetric Hybrid Inverter 25kW - 3 Phase
Description
Description
The Solinteg MHT-25–50K-100 series is a family of three-phase hybrid inverters designed for higher-power solar PV systems. The 25, 30, 40, and 50 kW versions are suitable for buildings where high-voltage battery energy storage is required in addition to solar power generation.
The inverters operate with lithium batteries and BMS communication. The battery-side voltage range is 135–750 V, and the maximum charge and discharge current is 100 A. This higher current capacity makes the series suitable for serving significant battery capacities and higher consumption demands.
On the solar side, there are 4 MPP trackers, with 2 DC inputs per tracker. The MPPT voltage range is 200–850 V, and the maximum input current is 30 A per tracker. The 150% DC oversizing allows for a larger solar array to be configured compared to the inverter's nominal AC power.
The series supports 100% asymmetric output, which can help manage different phase loads in three-phase systems. In the event of a power outage, the backup output can be used to supply a separate consumer circuit. The switching time is less than 20 ms.
The devices have a maximum efficiency of 98.8% and a European efficiency of 98.3%. The IP65-rated casing allows for both outdoor and indoor installation, and cooling is provided by an intelligent fan system.
Key features at a glance:
- Three-phase hybrid inverters in the 25–50 kW power range
- 25, 30, 40, and 50 kW power versions
- For larger solar and battery systems
- Supports high-voltage lithium batteries with BMS communication
- Battery voltage range: 135–750 V
- Maximum charge and discharge current: 100 A
- 4 MPP trackers, 2 DC inputs per tracker
- MPPT voltage range: 200–850 V
- Maximum input current: 30 A per tracker
- Supports 150% DC oversizing
- 100% asymmetric output
- Backup output with less than 20 ms switching time
- Maximum efficiency: 98.8%, European efficiency: 98.3%
- IP65 protection, intelligent fan cooling
The Solinteg MHT-25–50K-100 series can be used in three-phase solar PV systems where higher PV power, battery energy storage, asymmetric load management, and backup power supply need to be handled within a single system.
