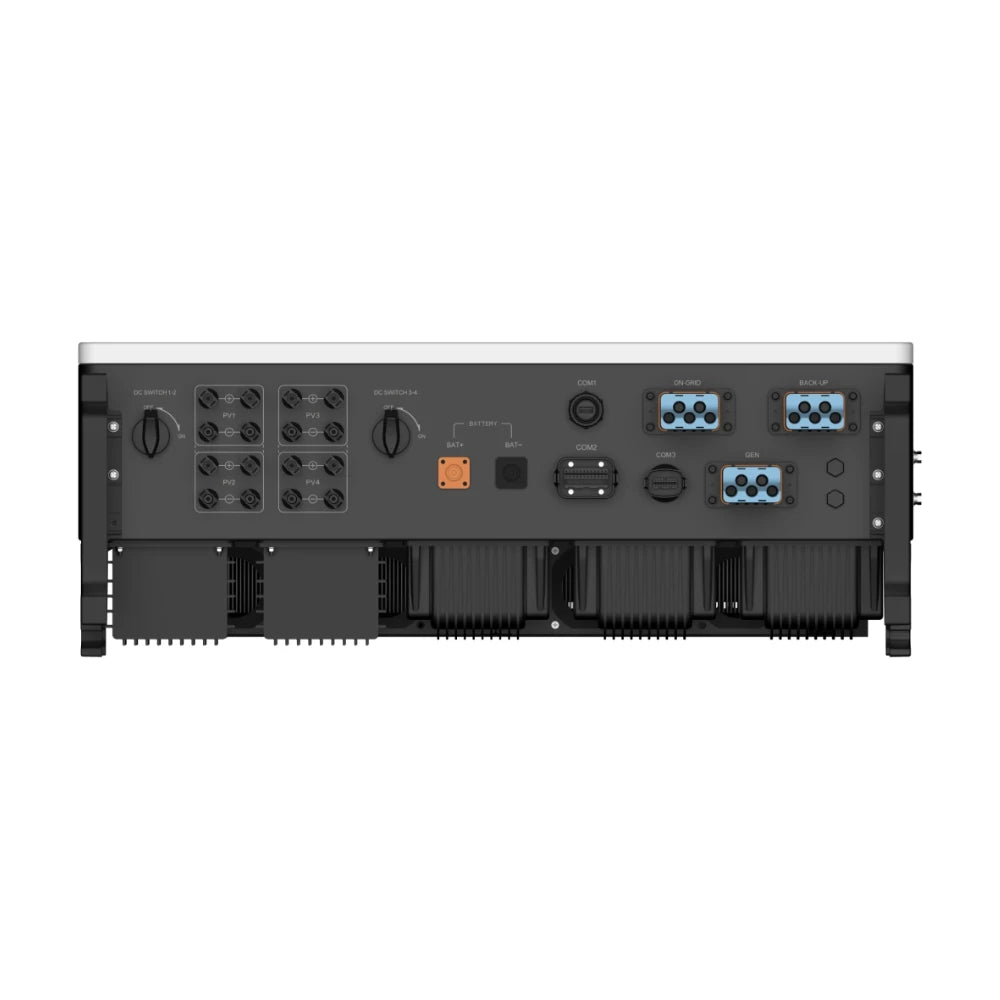

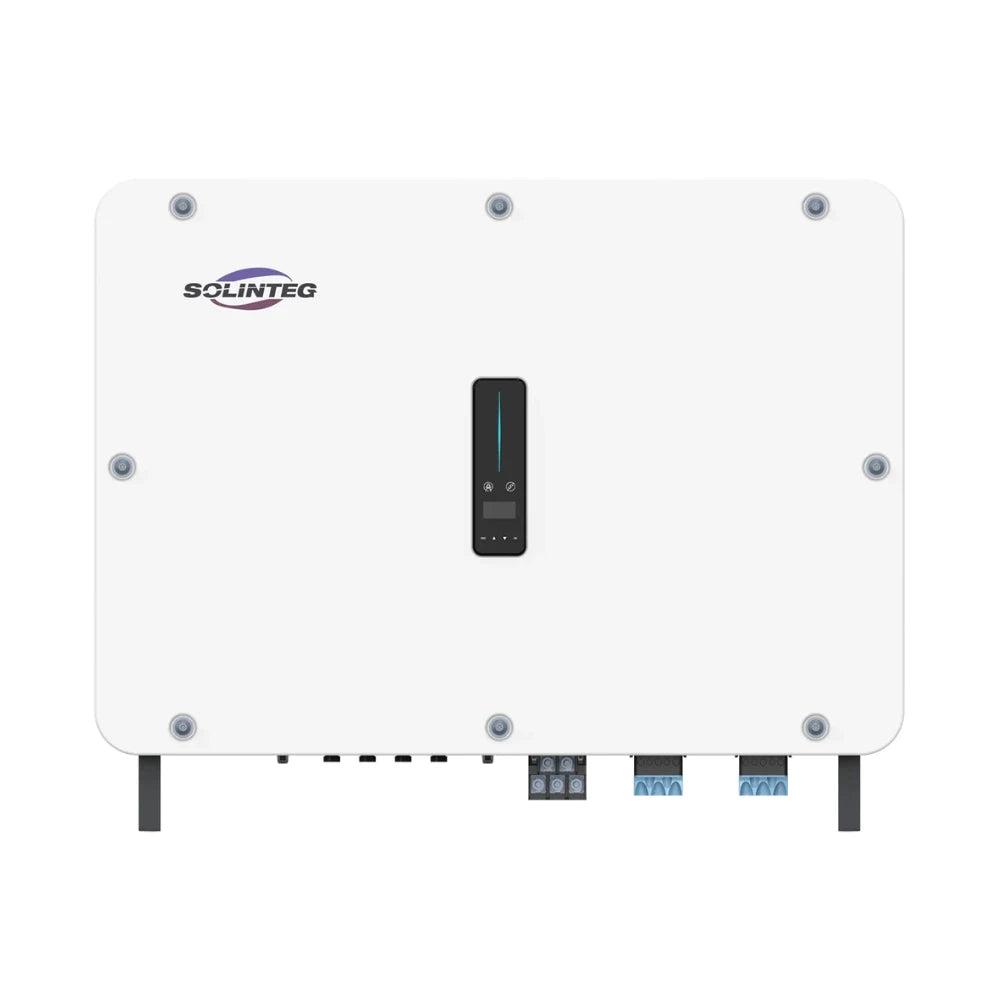

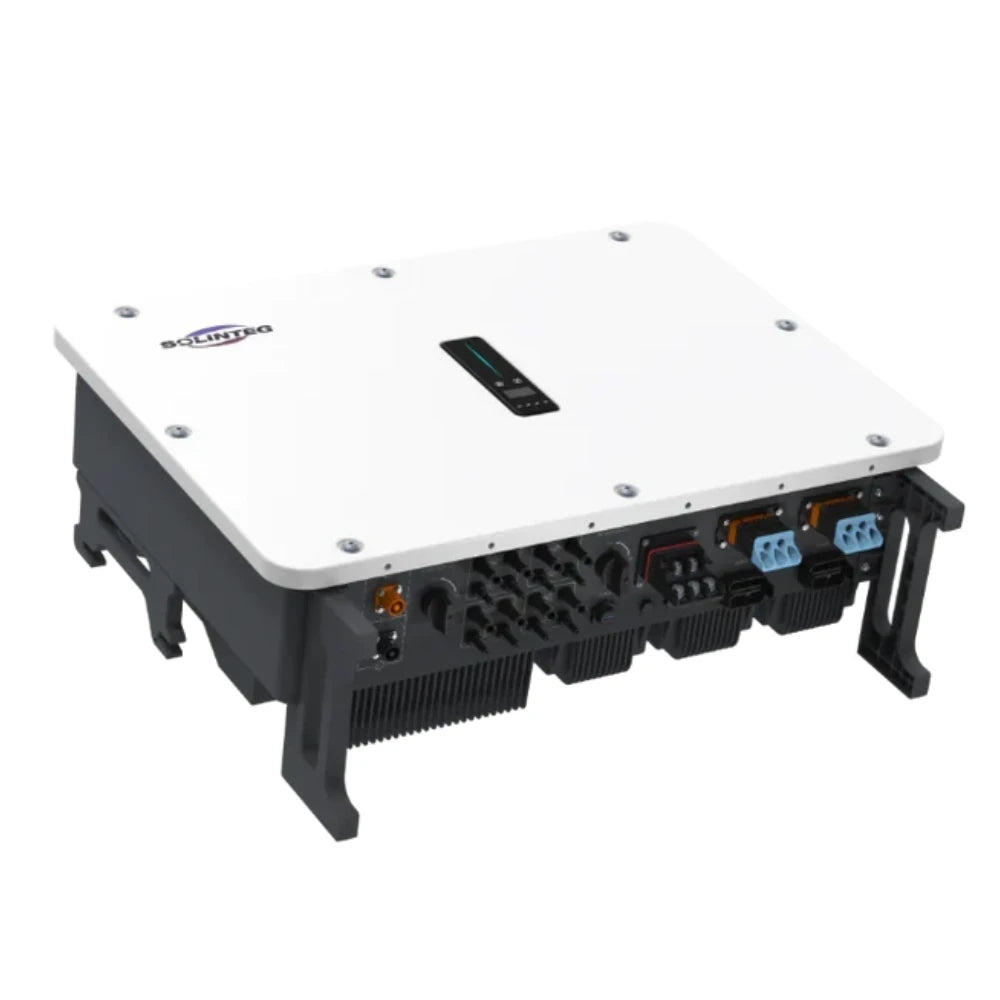

Solinteg M2HT-50K-150 Asymmetric Hybrid Inverter 50kW - 3 Phase
Solinteg M2HT-50K-150 Asymmetric Hybrid Inverter 50kW - 3 Phase is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.
Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
Solinteg M2HT-50K-150 Asymmetric Hybrid Inverter 50kW - 3 Phase
Description
Description
The Solinteg M2HT-25–50K-150 series is a family of three-phase hybrid inverters designed for higher-power solar PV systems. The 25, 30, 40, and 50 kW versions can be used in buildings where high-voltage battery energy storage is required in addition to solar PV generation.
The inverters operate with lithium batteries in the voltage range of 150–840 V. The maximum charging and discharging current is 150 A, making the series suitable for handling larger battery capacities and higher energy demands. This can be particularly advantageous in systems where energy storage is not just a supplementary function but a crucial part of the system.
On the solar PV side, 4 MPP trackers are available, with 2 strings per tracker. The MPPT voltage range is 200–950 V, and the maximum input current is 40 A per MPPT. The 200% DC oversizing allows for a larger PV array to be connected compared to the inverter's nominal AC power.
The series supports 100% asymmetric loading, which can help manage differing phase loads in three-phase systems. The devices are also capable of backup operation, with a switching time between on-grid and off-grid modes of less than 10 ms. A 150% peak load capacity is available for 10 seconds for short durations.
Support for generator connection allows for a more flexible system design in locations where a backup power source is important. The IP66-rated housing provides enhanced environmental protection, and cooling is provided by an intelligent fan system. Operation is monitored via LED and OLED displays, and system communication is facilitated by CAN and RS485 connections.
Key features in brief:
- Three-phase hybrid inverters in the 25–50 kW power range
- 25, 30, 40, and 50 kW power variants
- For higher-power solar PV and battery systems
- Support for high-voltage lithium batteries
- Battery voltage range: 150–840 V
- Maximum charging and discharging current: 150 A
- 4 MPP trackers, 2 strings per tracker
- MPPT voltage range: 200–950 V
- Maximum input current: 40 A per MPPT
- Support for 200% DC oversizing
- Support for 100% asymmetric loading
- Backup output with less than 10 ms switching time
- 150% peak load capacity for 10 seconds
- Support for generator connection
- IP66 protection, intelligent fan cooling
- LED and OLED display, CAN / RS485 communication
The Solinteg M2HT-25–50K-150 series can be used for three-phase solar PV systems where high PV power, high battery charging and discharging current, asymmetric load management, and backup power supply need to be managed within a single system.
