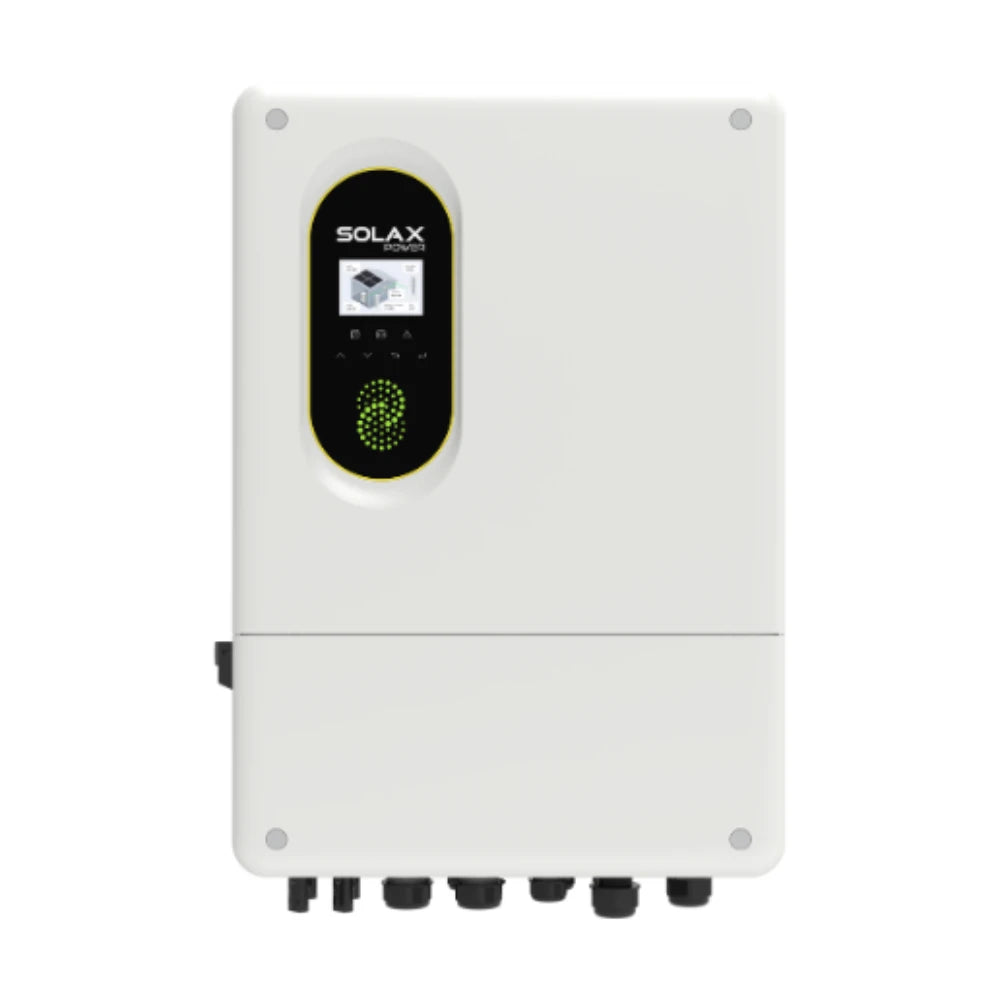

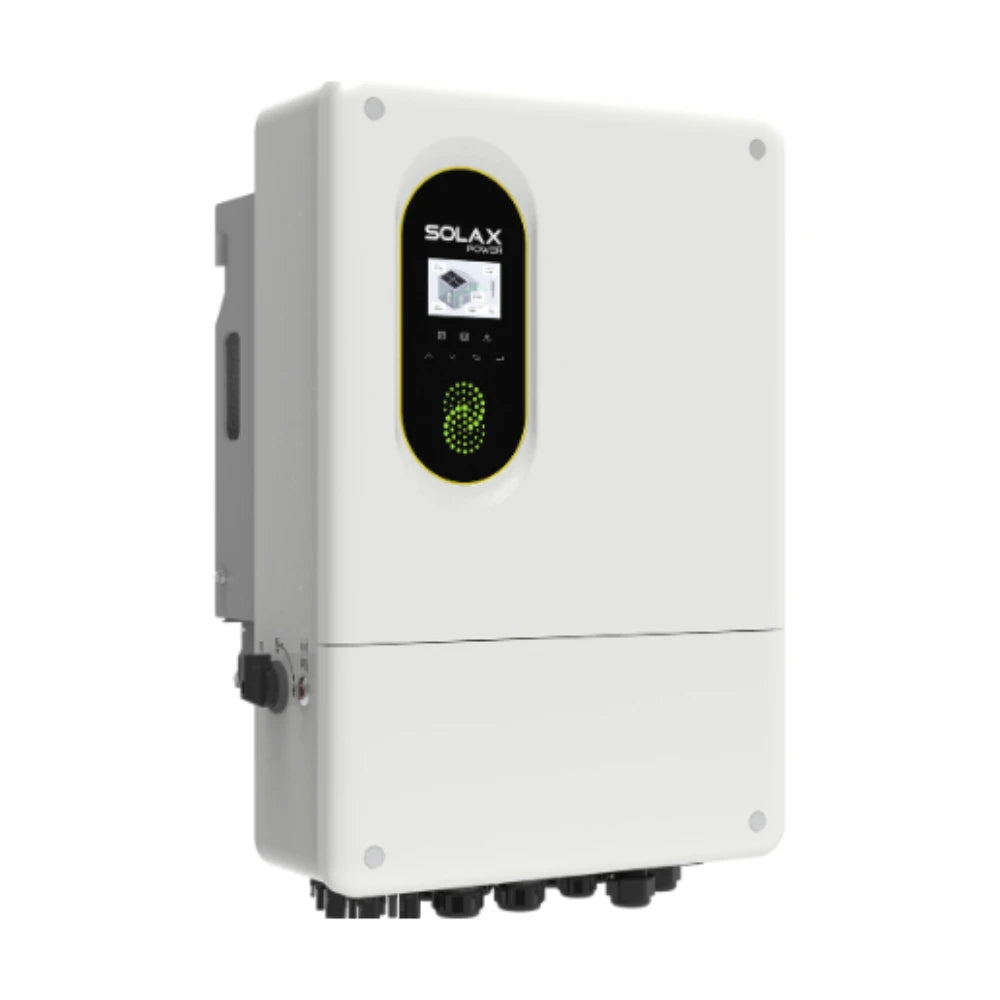

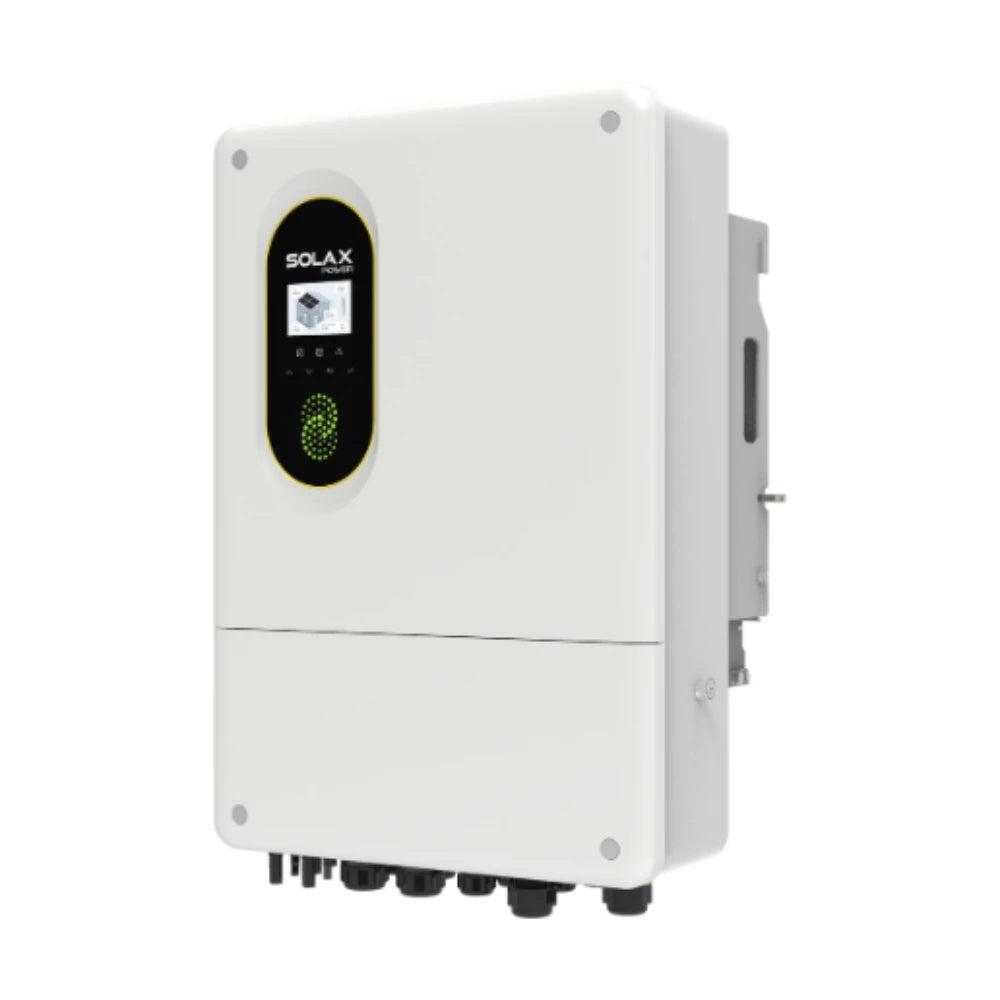

SolaX X3-NEO-5K-LV Asymmetric Hybrid Inverter 5kW - 3-Phase (LV)
Description
Description
The SolaX X3-NEO-LV series of three-phase hybrid inverters are available in 5, 8, 10, 12, 15, and 20 kW power ratings. The devices are designed for low-voltage battery-based solar systems.
The inverters can be used with LFP lithium iron phosphate batteries with a voltage range of 40–60 V, as well as compatible lead-acid batteries. The maximum charging and discharging current ranges from 125–350 A, depending on the model.
The two MPPT trackers allow for the management of solar panel arrays with different orientations. PV power can be oversized up to 200% of the inverter's nominal power. The maximum PV input voltage is 1000 V.
In the event of a power outage, the EPS output switches over in less than 3 ms. In off-grid mode, the inverter can provide twice its nominal power for 10 seconds. Up to three inverters can be connected in parallel in both on-grid and off-grid systems.
The IP65-rated devices feature AC and DC side Type II surge protection, residual current detection, and overheating protection. AFCI arc fault protection is optionally available.
Key Features
Power range: 5–20 kW
Design: three-phase, asymmetric hybrid inverter
Battery voltage: 40–60 V
Battery type: LFP and compatible lead-acid
Charging and discharging current: 125–350 A
Number of MPPTs: 2
PV oversizing: up to 200%
Maximum PV voltage: 1000 V
EPS switching: less than 3 ms
EPS peak power: twice the power for 10 seconds
Parallel capability: up to 3 inverters
Maximum efficiency: 97.6%
Protection class: IP65
Protection: AC/DC Type II SPD, optional AFCI
