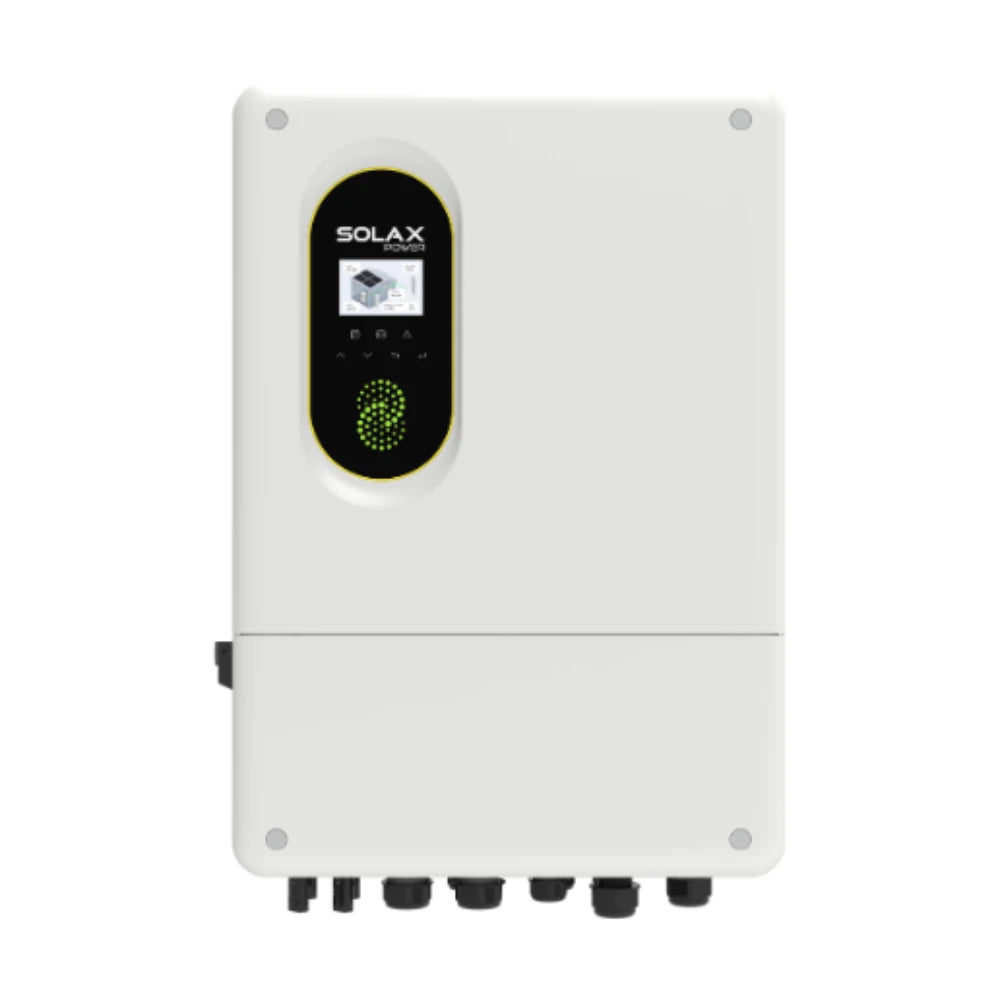

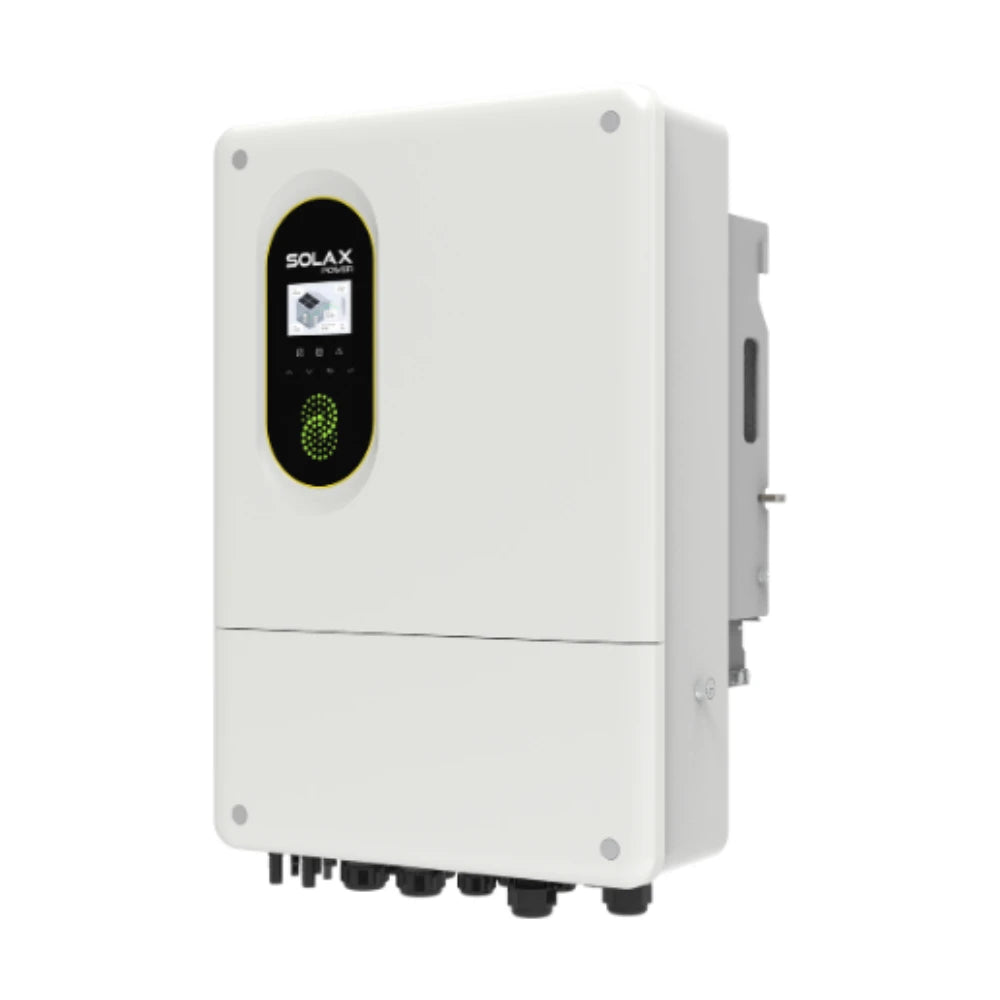

SolaX X3-NEO-20K-LV Asymmetric Hybrid Inverter 20kW - 3 Phase (LV)
Description
Description
The SolaX X3-NEO-LV series of three-phase hybrid inverters are available with power ratings of 5, 8, 10, 12, 15, and 20 kW. The devices are designed for low-voltage battery-based solar systems.
The inverters can be used with LFP lithium iron phosphate batteries between 40–60 V, as well as compatible lead-acid batteries. The maximum charge and discharge current is 125–350 A, depending on the model.
The two MPPT trackers allow for handling solar panel arrays with different orientations. The PV side power can be oversized up to 200% of the inverter's rated power. The maximum PV input voltage is 1000 V.
In case of a power outage, the EPS output switches over in less than 3 ms. In off-grid mode, the inverter can provide twice its rated power for 10 seconds. In grid-tied and off-grid systems, up to three inverters can be connected in parallel.
The IP65-rated devices feature AC and DC side Type II surge protection, residual current detection, and overheating protection. AFCI arc fault protection is optionally available.
Key features
Power range: 5–20 kW
Design: three-phase, asymmetrical hybrid inverter
Battery voltage: 40–60 V
Battery type: LFP and compatible lead-acid
Charge and discharge current: 125–350 A
Number of MPPTs: 2
PV oversizing: up to 200%
Maximum PV voltage: 1000 V
EPS switchover: less than 3 ms
EPS peak power: twice the power for 10 seconds
Parallelability: up to 3 inverters
Maximum efficiency: 97.6%
Protection class: IP65
Protection: AC/DC Type II SPD, optional AFCI
