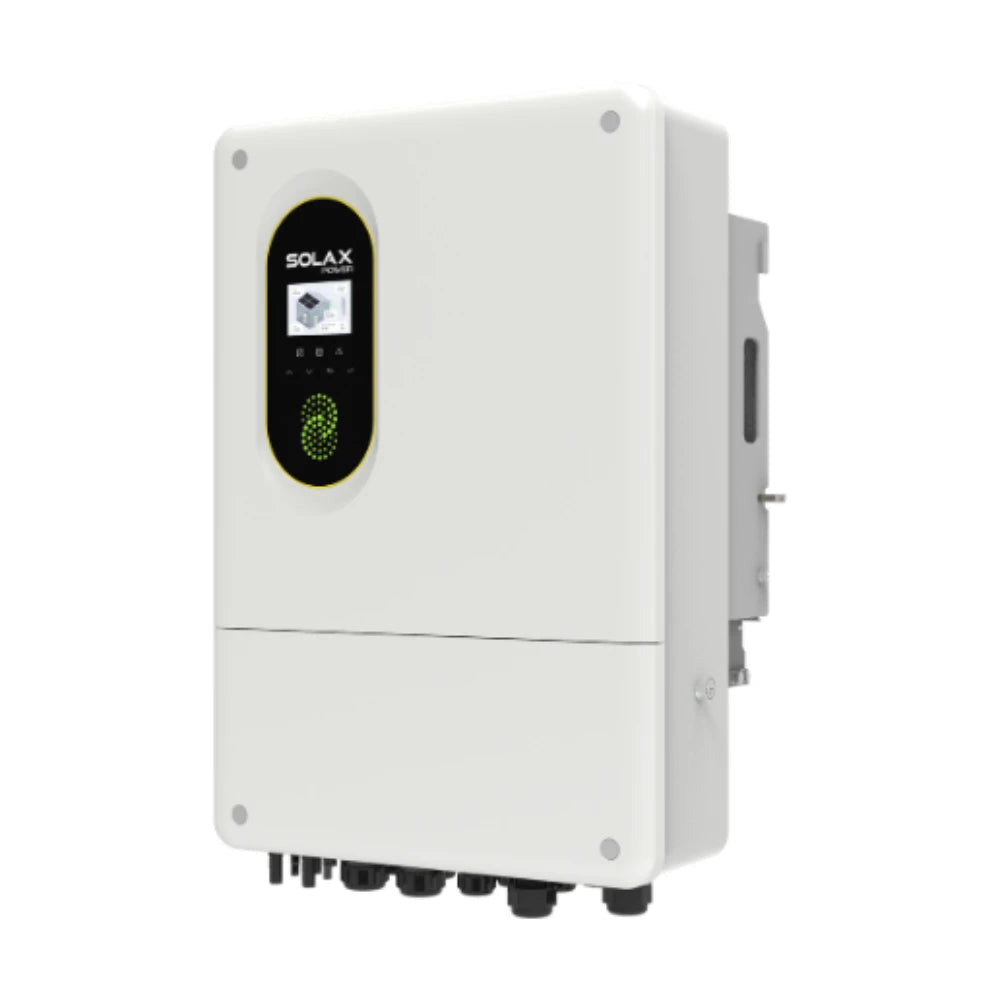

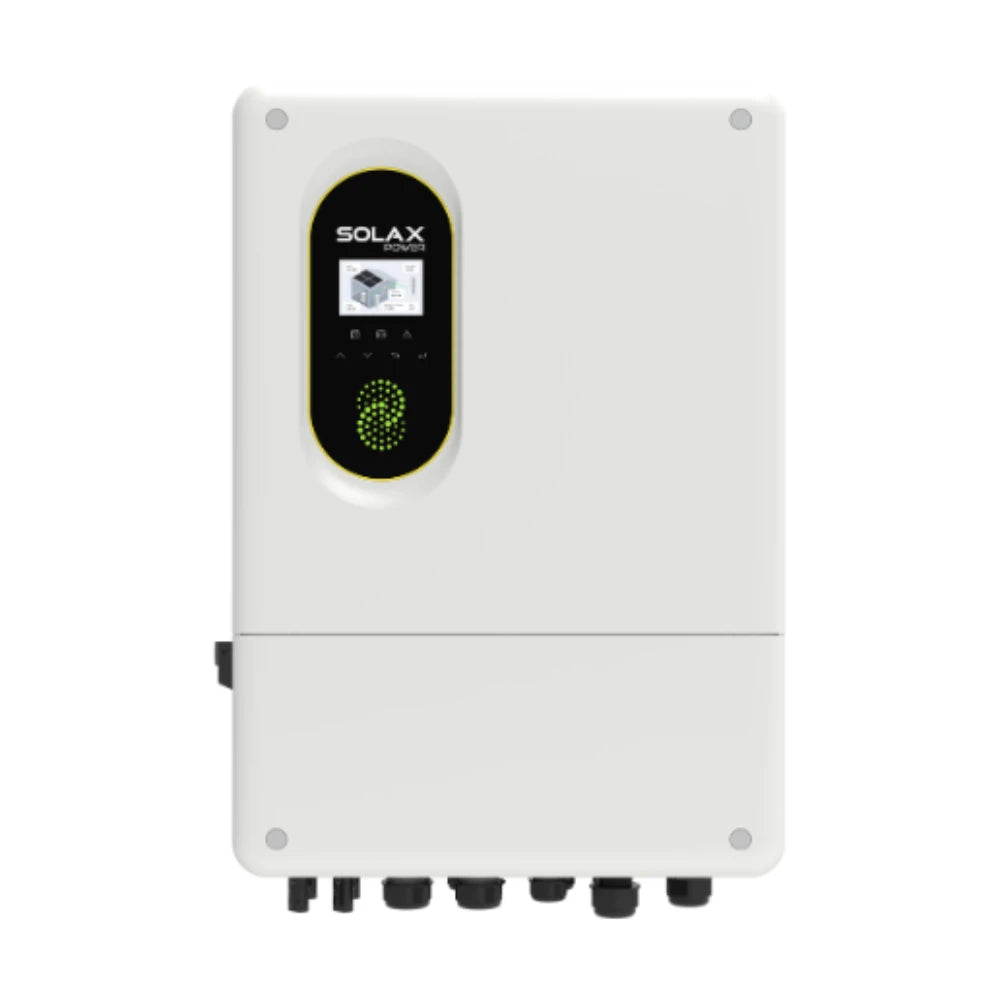

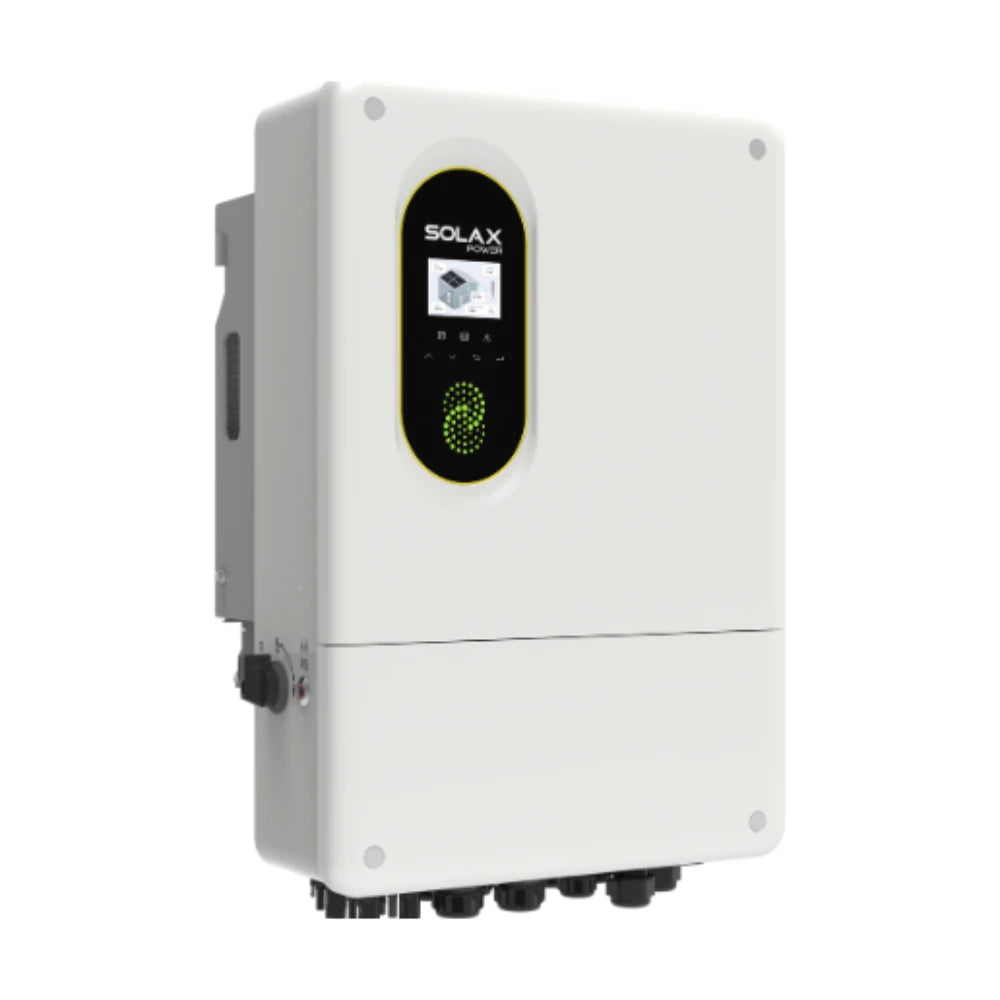

SolaX X3-NEO-12K-LV Asymmetric Hybrid Inverter 12kW - 3 Phase (LV)
Description
Description
The SolaX X3-NEO-LV series of three-phase hybrid inverters are available with power ratings of 5, 8, 10, 12, 15, and 20 kW. These devices are designed for low-voltage battery-based solar systems.
The inverters can be used with LFP (lithium iron phosphate) batteries with a voltage range of 40–60 V, as well as compatible lead-acid batteries. The maximum charge and discharge current ranges from 125–350 A, depending on the model.
The two MPPT (Maximum Power Point Tracking) trackers allow for the management of solar arrays with different orientations. The solar-side power can be oversized up to 200% of the inverter's rated power. The maximum PV input voltage is 1000 V.
In case of a power outage, the EPS output switches over in less than 3 ms. In off-grid mode, the inverter can provide twice its rated power for 10 seconds. Up to three inverters can be connected in parallel in both on-grid and off-grid systems.
The IP65-rated devices feature AC and DC Type II surge protection, residual current detection, and overheating protection. AFCI (Arc Fault Circuit Interrupter) protection is optionally available.
Key features
Power range: 5–20 kW
Design: Three-phase, asymmetric hybrid inverter
Battery voltage: 40–60 V
Battery type: LFP and compatible lead-acid
Charge and discharge current: 125–350 A
Number of MPPTs: 2
PV oversizing: up to 200%
Maximum PV voltage: 1000 V
EPS switchover: less than 3 ms
EPS peak power: twice the rated power for 10 seconds
Parallel capability: up to 3 inverters
Maximum efficiency: 97.6%
Protection class: IP65
Protection: AC/DC Type II SPD, optional AFCI
