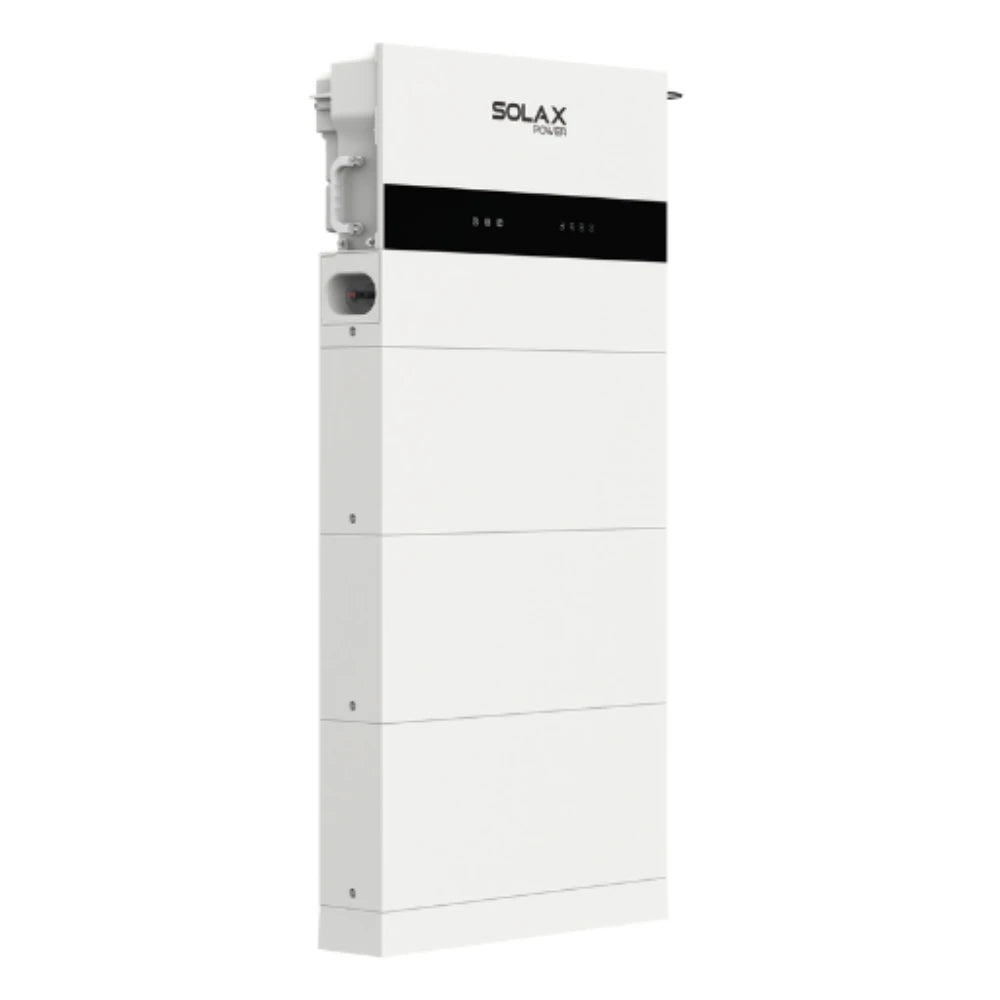

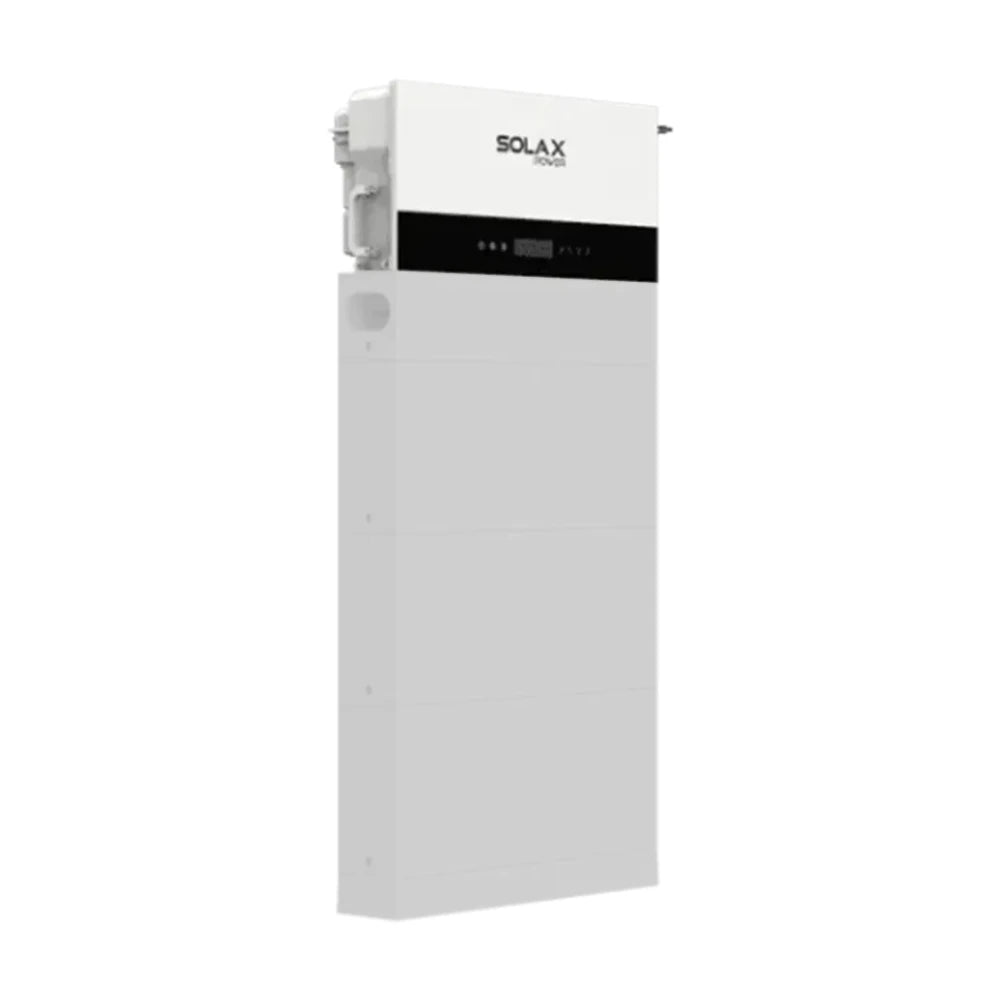

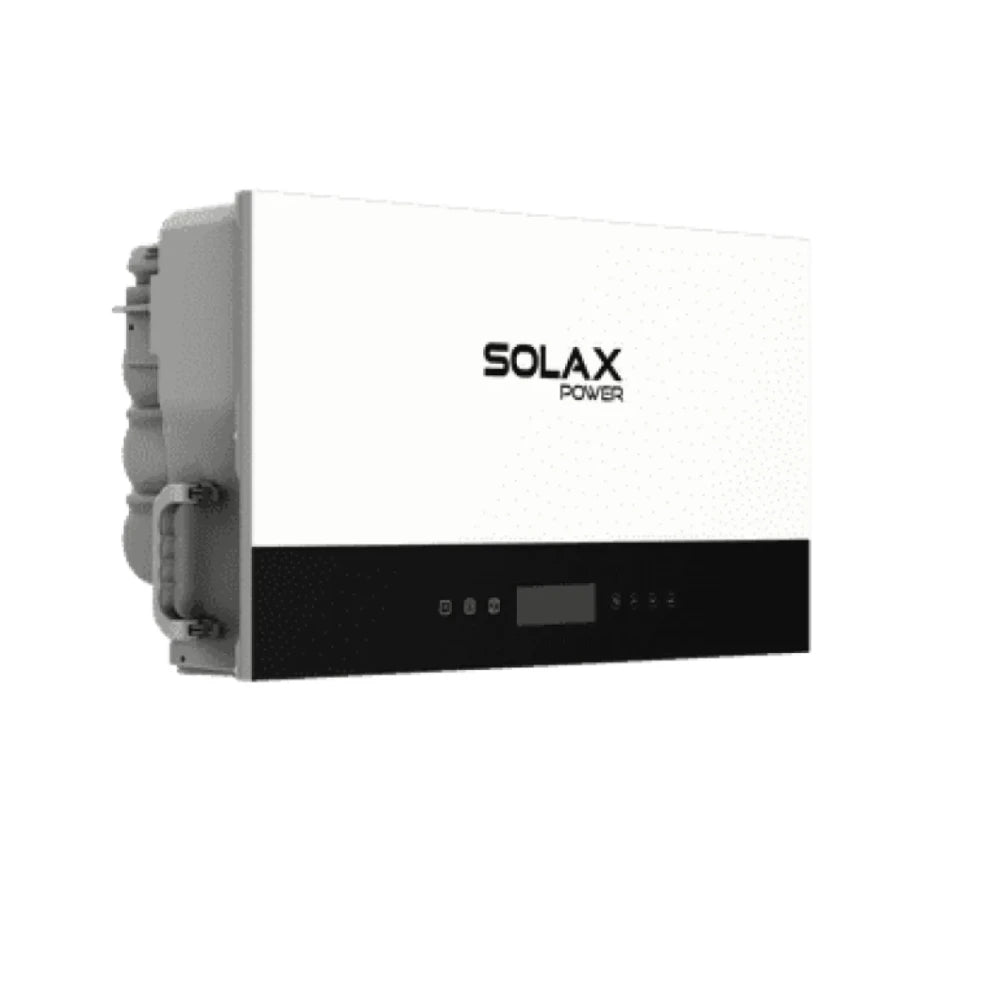

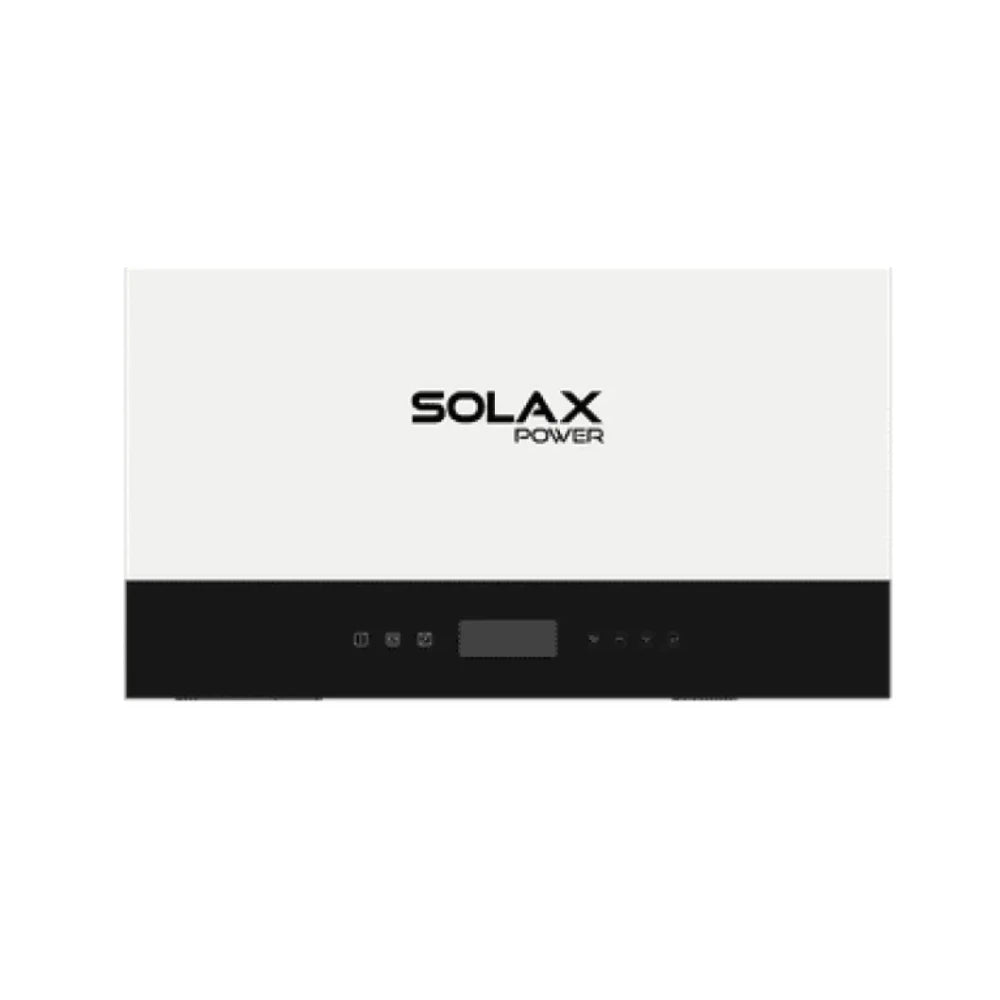

SolaX X3-IES-8K hybrid AIO inverter 8kW - 3 phase
Description
Description
SolaX X3-IES series three-phase hybrid inverters are available with power ratings of 5, 6, 8, 10, 12, and 15 kW. The AIO design allows the inverter and the modular battery system to be installed as a unified, stackable system.
The devices operate with high-voltage lithium batteries ranging from 80–800 V, with a maximum charge and discharge current of 50 A. One battery module has a nominal capacity of 5.1 kWh, and the system can be expanded with 1–6 modules, providing a total capacity of 5.1–30.7 kWh.
The two MPPT trackers enable flexible solar panel array design. The inverters support up to 200% PV oversizing, and the maximum PV input voltage is 1000 V.
In the event of a power outage, the EPS output switches over in less than 10 ms. In battery mode, the inverter can provide double its rated power for 10 seconds.
The IP66 rated devices feature natural cooling, AC and DC side Type II surge protection, residual current detection, and overheating protection. AFCI arc fault protection is optionally available.
Key Features
Power range: 5–15 kW
Design: three-phase, AIO hybrid system
Battery voltage: 80–800 V
Battery type: high-voltage lithium battery
Storage capacity: 5.1–30.7 kWh
Number of battery modules: 1–6 pcs
Charge and discharge current: max. 50 A
Number of MPPTs: 2
PV oversizing: up to 200%
Maximum PV voltage: 1000 V
EPS switchover: less than 10 ms
EPS peak power: double power for 10 seconds
Maximum efficiency: 98%
Cooling: natural
Protection class: IP66
Protection: AC/DC Type II SPD, optional AFCI
