SolaX X3-IES-5K hybrid AIO inverter 5kW - 3 phase
Description
Description

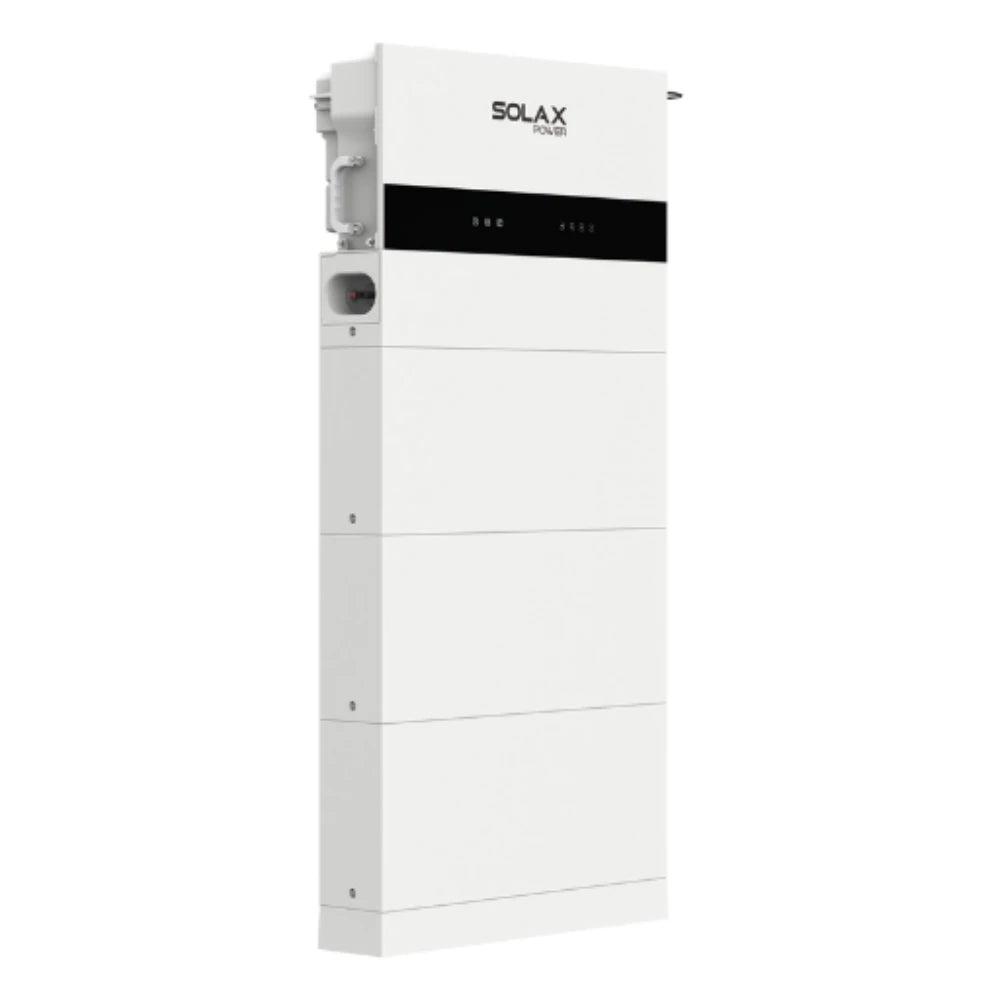

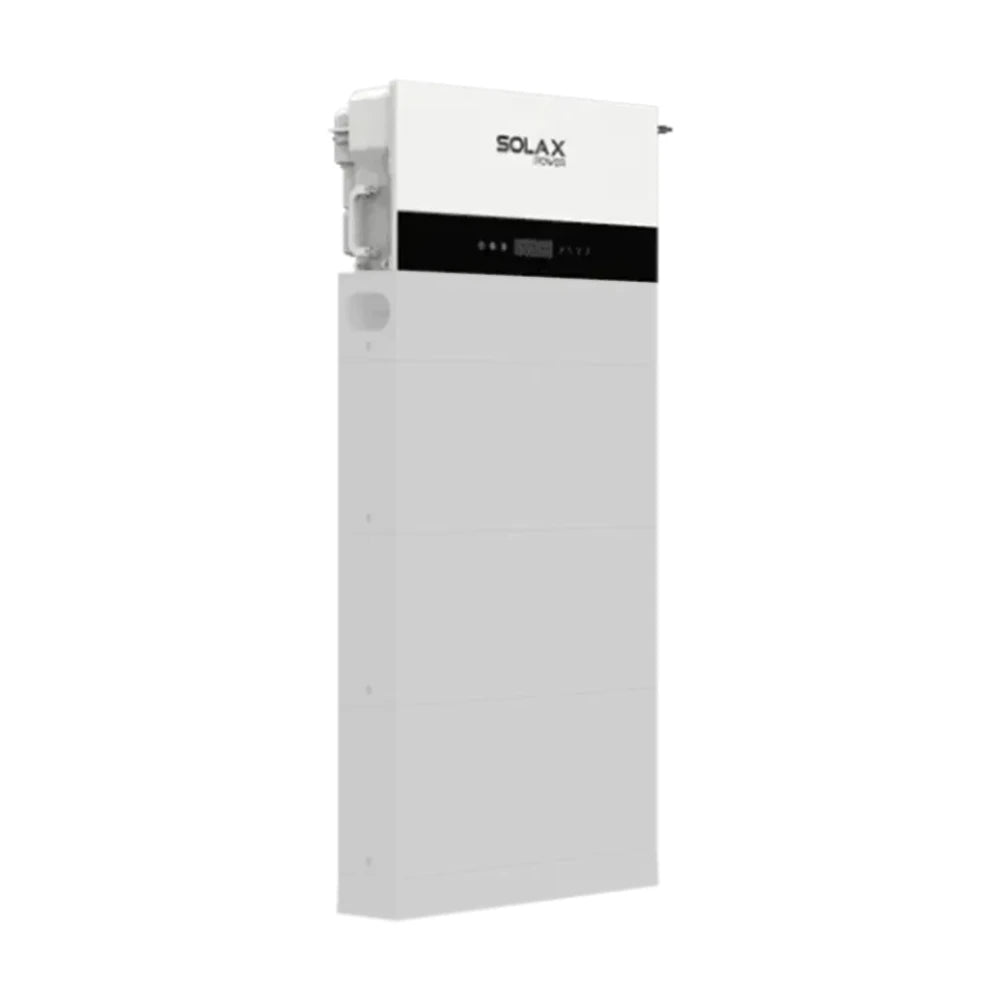

The SolaX X3-IES series of three-phase hybrid inverters are available in 5, 6, 8, 10, 12 and 15 kW power ratings. The AIO design allows the inverter and modular battery system to be installed as a unified, stackable system.
The units operate with high-voltage lithium batteries ranging from 80-800 V, with a maximum charge and discharge current of 50 A. The nominal capacity of one battery module is 5.1 kWh, and the system can be expanded with 1-6 modules, for a total capacity of 5.1-30.7 kWh.
The two MPPT trackers allow for flexible solar panel array design. The inverters support up to 200% PV oversizing, and the maximum PV-side input voltage is 1000 V.
In the event of a power outage, the EPS output switches over in less than 10 ms. In battery mode, the inverter can provide double its nominal power for 10 seconds.
The IP66-rated units feature natural cooling, AC and DC side Type II surge protection, residual current detection, and overheating protection. AFCI arc fault protection is optionally available.
Key Features
Power range: 5–15 kW
Design: three-phase, AIO hybrid system
Battery voltage: 80–800 V
Battery type: high-voltage lithium battery
Storage capacity: 5.1–30.7 kWh
Number of battery modules: 1–6 units
Charge and discharge current: up to 50 A
Number of MPPTs: 2
PV oversizing: up to 200%
Maximum PV voltage: 1000 V
EPS switchover: less than 10 ms
EPS peak power: double power for 10 seconds
Maximum efficiency: 98%
Cooling: natural
Protection class: IP66
Protection: AC/DC Type II SPD, optional AFCI
