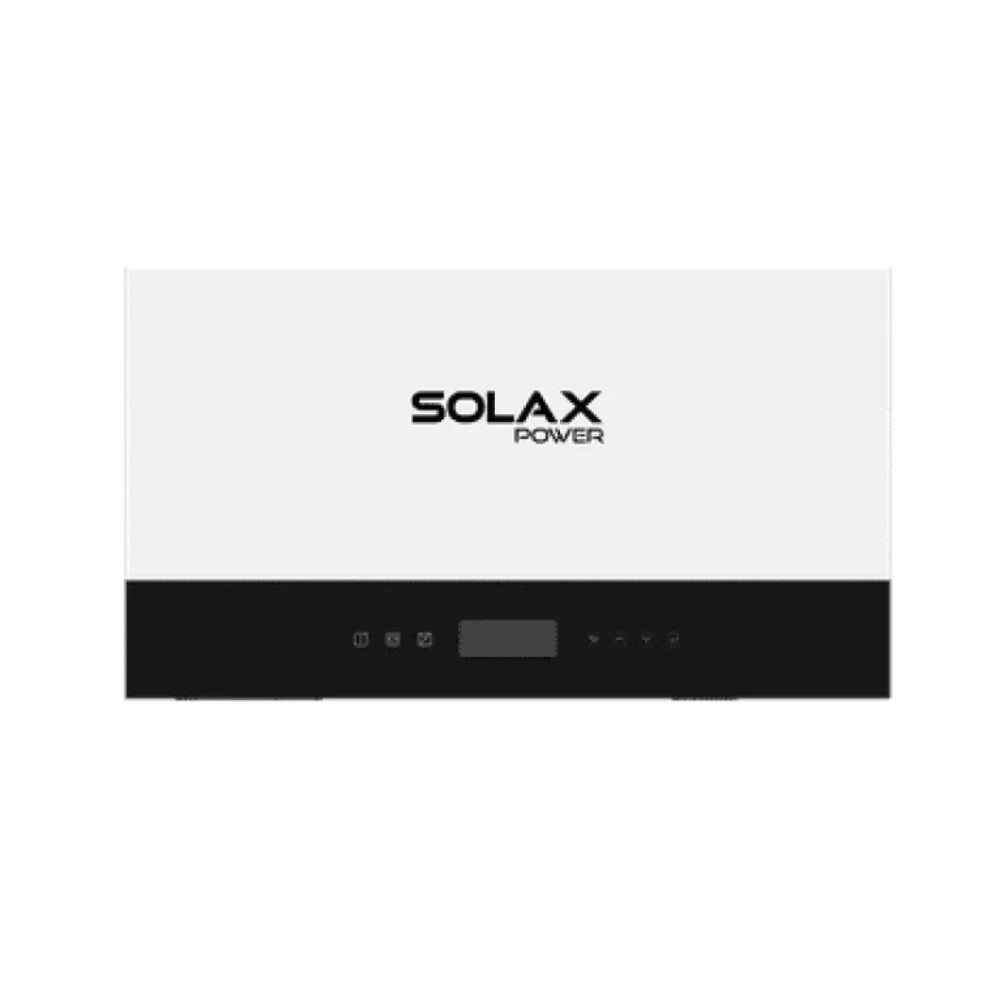

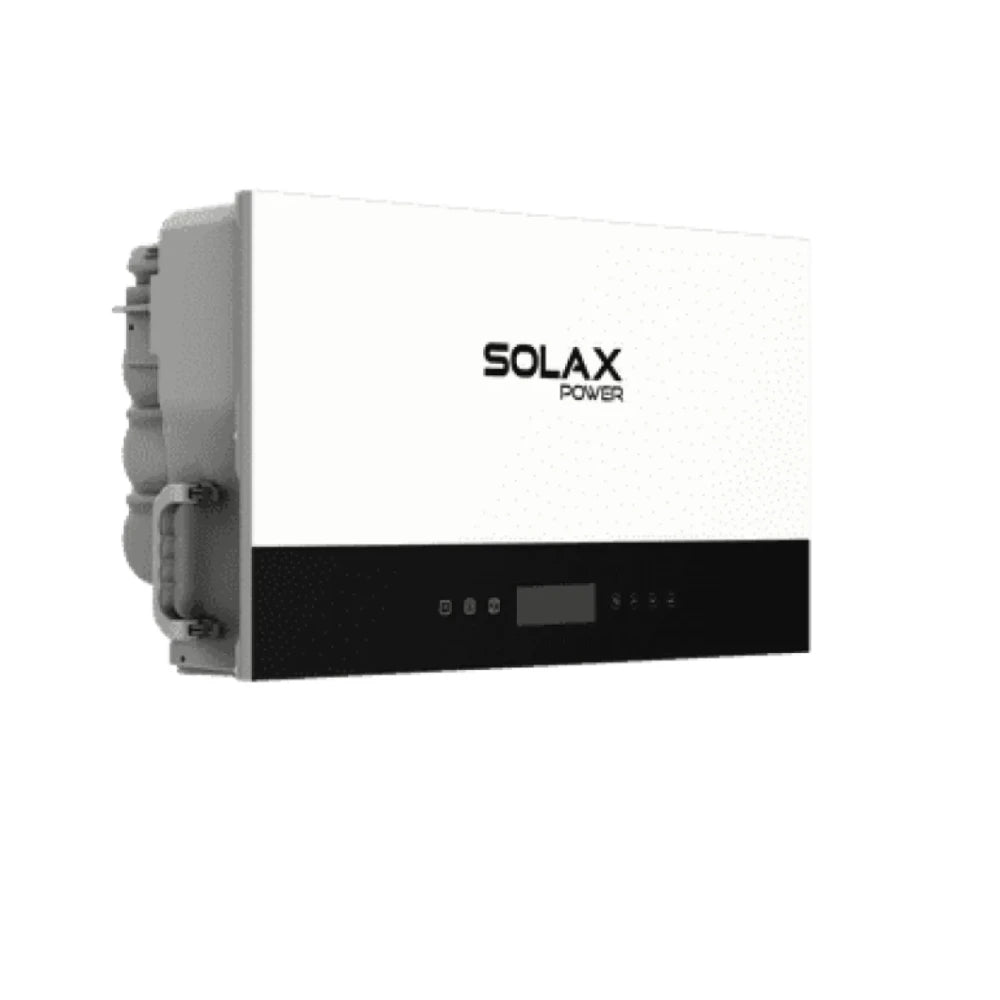

SolaX X1-IES-5K AIO Hybrid Inverter 5kW - 1 Phase HV
Description
Description

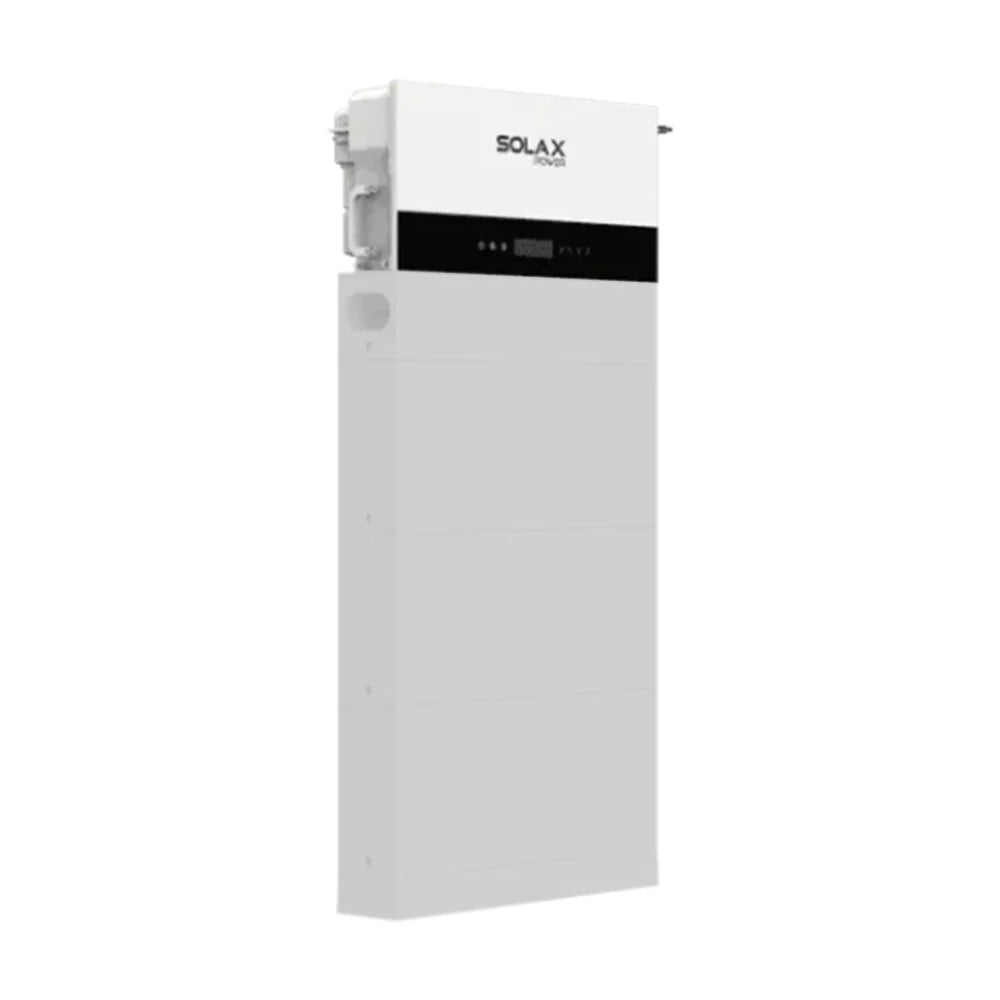

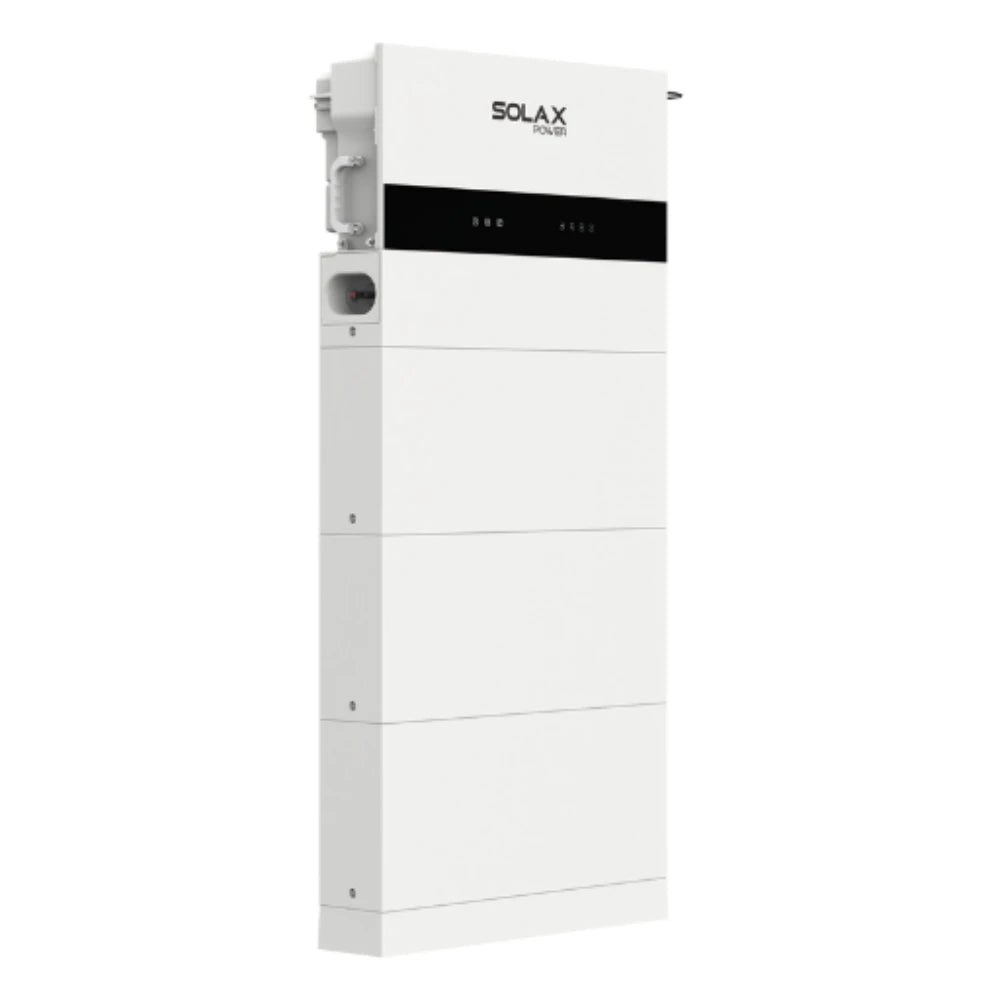

SolaX X1-IES series single-phase, high-voltage hybrid inverters are available with power ratings from 2.5 to 8 kW. Thanks to the AIO design, the inverter and the modular battery system can be installed as a single, space-saving unit.
The devices operate with an LFP battery system between 80–480 V, with a maximum charge and discharge current of 50 A. One battery module has a capacity of 5.1 kWh, which can be expanded up to 20.4 kWh with a maximum of four modules.
The inverters support up to 200% oversizing on the solar panel side. The maximum PV input voltage is 600 V, and depending on the model, two or three MPPTs are available.
In the event of a power outage, the EPS output switches over in less than 10 ms. In battery mode, the inverter can provide double the rated power for 10 seconds.
The system supports intelligent load control, wireless power meter, and microgrid operation. The IP66 rated devices feature multiple built-in safety functions and optional AFCI arc fault protection.
Key features
Power range: 2.5–8 kW
Design: single-phase, AIO hybrid system
Battery voltage: 80–480 V
Battery type: LFP
Storage capacity: 5.1–20.4 kWh
Number of battery modules: 1–4 pcs
Charge and discharge current: max. 50 A
Number of MPPTs: 2 or 3 depending on model
PV oversizing: up to 200%
Maximum PV voltage: 600 V
EPS switching: less than 10 ms
EPS peak power: double power for 10 seconds
Maximum efficiency: 97.6%
Cooling: natural
Protection: IP66
Safety: AC/DC Type II SPD, optional AFCI
