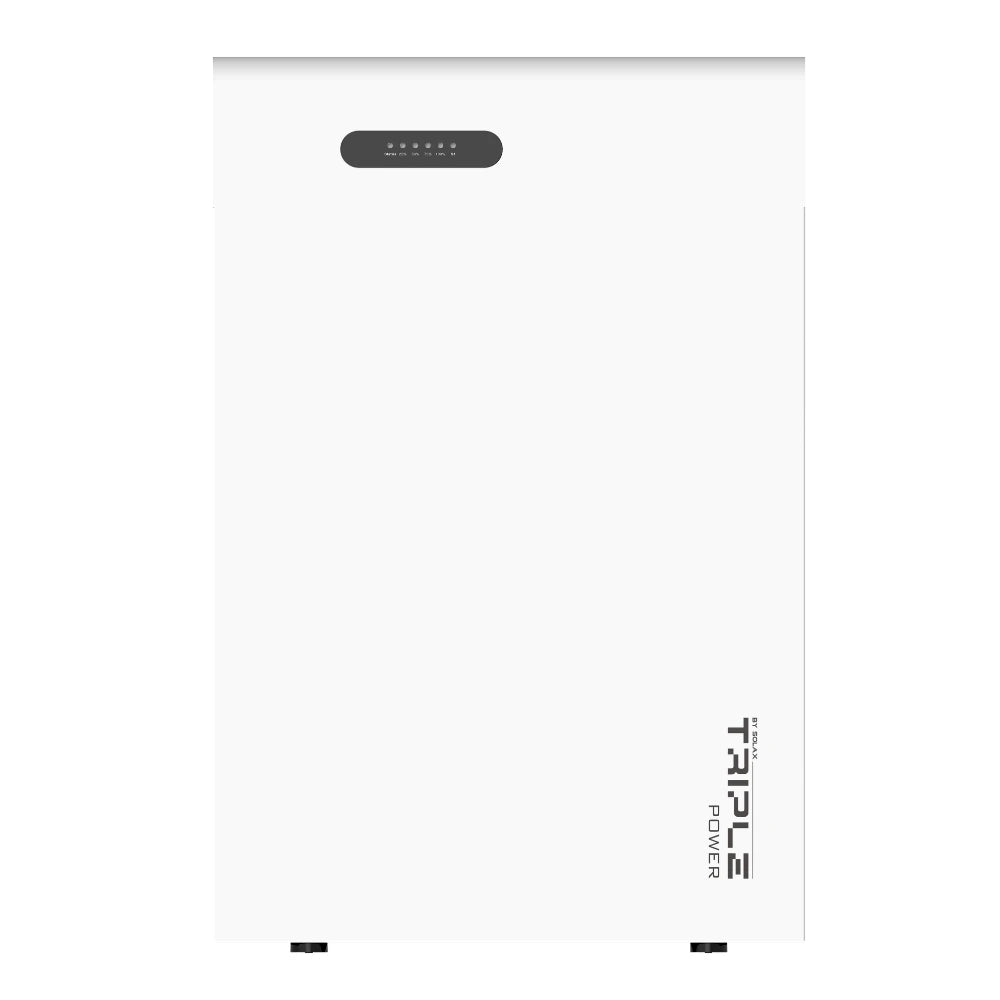

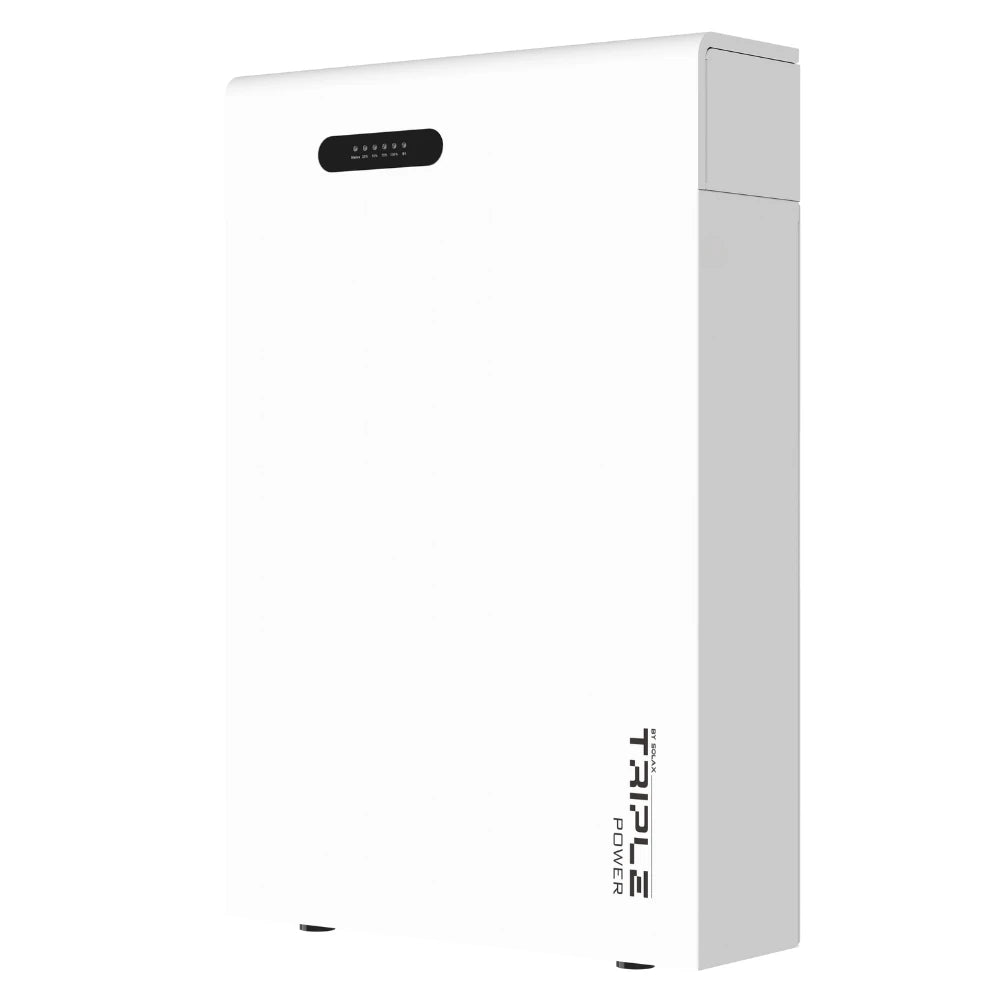

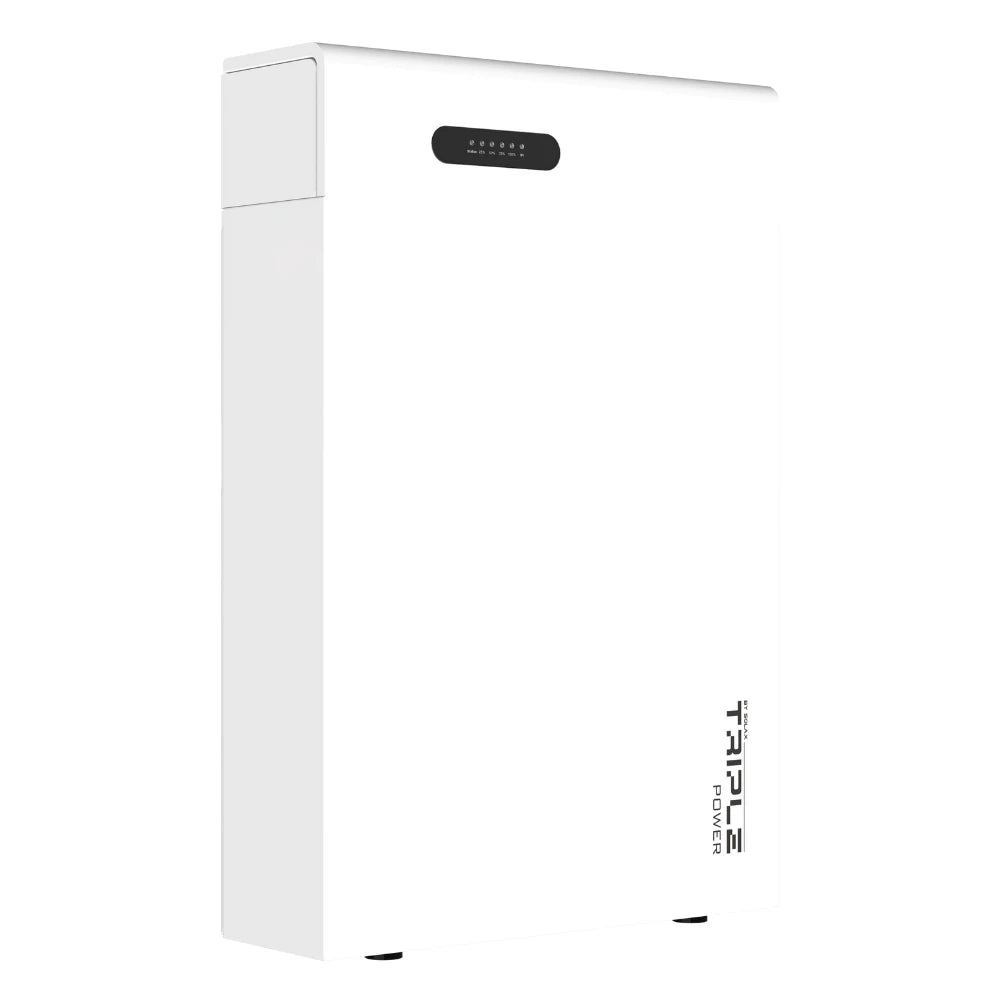

SolaX H5.8 V3 Battery Module 5.8kWh - Heated (Master)
SolaX H5.8 V3 Battery Module 5.8kWh - Heated (Master) is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.
Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
SolaX H5.8 V3 Battery Module 5.8kWh - Heated (Master)
Description
Description
The SolaX H5.8 V3 Master is the control module for the T-BAT H 5.8 V3 high-voltage battery system. The unit includes a LiFePO₄ battery with a nominal capacity of 5.8 kWh and an integrated BMS (Battery Management System).
With a discharge depth of 95%, 5.5 kWh of usable energy content is available. The module's nominal voltage is 115.2 V, and its operating range is 100–130 V.
The Master can only be used independently with a compatible SolaX inverter that has an appropriate battery-side voltage range. For higher minimum battery voltages, additional Slave modules need to be connected.
Up to five Slave modules can be connected to one Master, expanding the battery system's nominal capacity to 34.6 kWh. Thanks to the built-in heating, the system can be used in temperatures between –30 and +55 °C.
The IP66-rated module is suitable for both indoor and outdoor installation, mounted on a wall or floor.
Key Features
Nominal Energy: 5.8 kWh
Usable Energy: 5.5 kWh
Cell Technology: LiFePO₄
Design: Heated Master module with integrated BMS
Nominal Voltage: 115.2 V
Operating Voltage Range: 100–130 V
Maximum Power: 4 kW
Depth of Discharge: 95%
Expandability: Up to 5 Slave modules
Maximum Nominal Capacity: 34.6 kWh
Operating Temperature: –30 to +55 °C
Installation: Wall or floor, indoor and outdoor
Dimensions: 474 × 715 × 150 mm
Weight: 61.5 kg
Protection Rating: IP66
Warranty: 10 years
