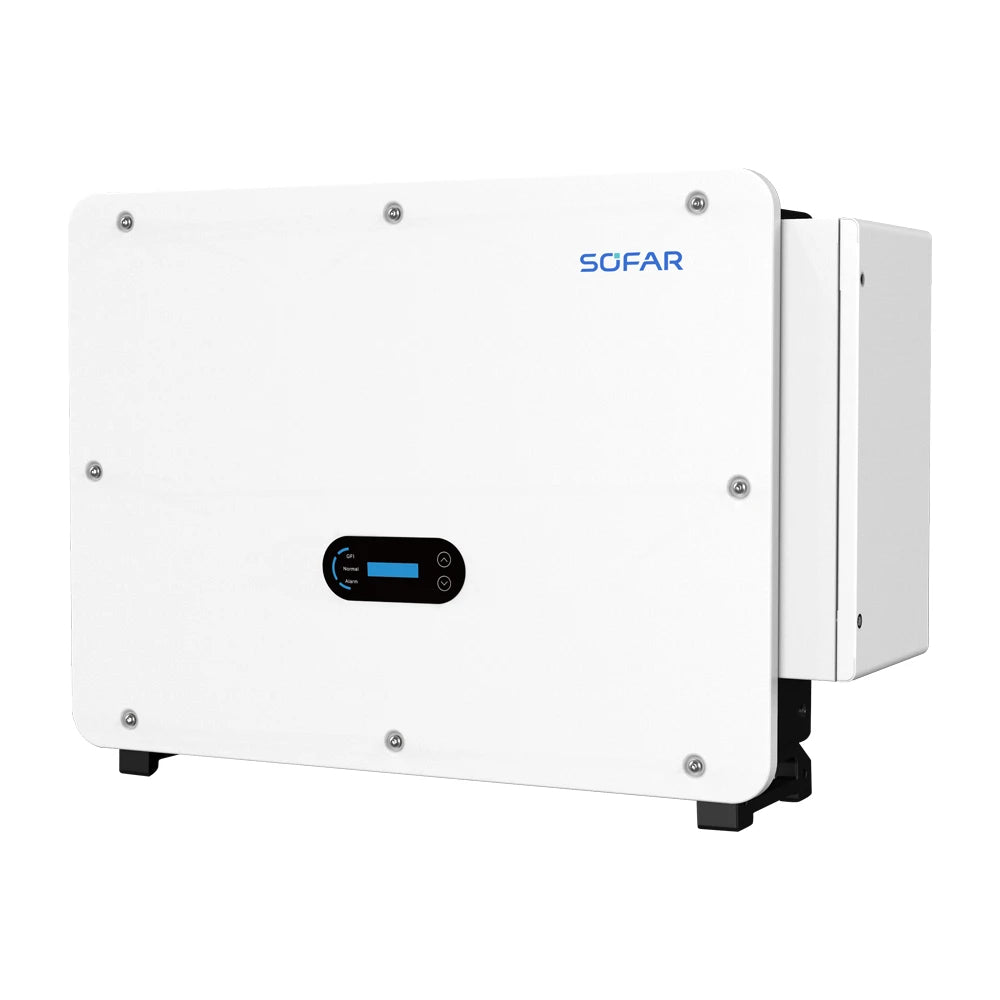

Sofar 110KTLX-G3 ongrid inverter 110kW - 3 phase

The SOFAR 100…125KTLX-G4 inverter series is SofarSolar’s ​​fourth generation high-performance solution designed for large-scale PV rooftop and ground-mounted systems. With up to 125 kW of power, 10 MPP tracking and 150% DC overload capability, this inverter is the perfect choice for commercial and industrial applications.

Main features

• Performance and efficiency :
  • Maximum efficiency : Up to 98.75% , which minimizes energy loss.
  • 150% DC overload capability : Provides greater flexibility for PV system design.
  • 10 MPP trackers : Maximum energy yield by independently monitoring and optimizing different strings.
• Protective functions :
  • Type II surge protection (SPD) on both DC and AC sides.
  • Built-in PID protection : Provides positive voltage to solar strings at night, reducing potential-induced power loss.
  • Arc Detection (AFCI) : Fire safety protection integrated.
  • Comprehensive protection : Reverse polarity, leakage current, ground fault and string fault detection.
• Environmental resistance :
  • IP66 protection : Complete dust and water resistance, optimized for outdoor use.
  • Operating temperature : -30°C to +60°C, able to operate even in extreme environmental conditions.
  • Maximum operating altitude : 4000 m (with derating above 3000 m).
• Compact and efficient design :
  • Light weight : Only 75 kg, easy to handle and install.
  • Dimensions : 970 x 695 x 325 mm.
  • Intelligent cooling : Forced air cooling for reliable operation.
• Data collection and monitoring :
  • Independent AC/DC power supply : 24-hour status monitoring.
  • WiFi-stick : Easy connection to the SOFAR monitoring portal.
  • IV Curve Scan Function : Quick diagnostics of system performance.
• Wide compatibility :
  • Support for 500W+ PV modules : Ideal for high-performance, next-generation solar panels.
  • Network compatibility : Easily configured to comply with power supply regulations in different countries.

Recommendations

The SOFAR 100…125KTLX-G4 inverter series is the perfect choice:

• For large PV systems, whether rooftop or ground installations.
• For those looking for outstanding efficiency and flexible installation options.
• For systems requiring advanced security and monitoring features.

This inverter series combines the latest technology and excellent performance, providing an ideal solution for large-scale commercial and industrial PV projects.
