Panasonic printed circuit board for M-generation equipment auxiliary functions, BI-BLOCK and ALL IN ONE
Panasonic printed circuit board for M-generation equipment auxiliary functions, BI-BLOCK and ALL IN ONE is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.
Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
Description
Description

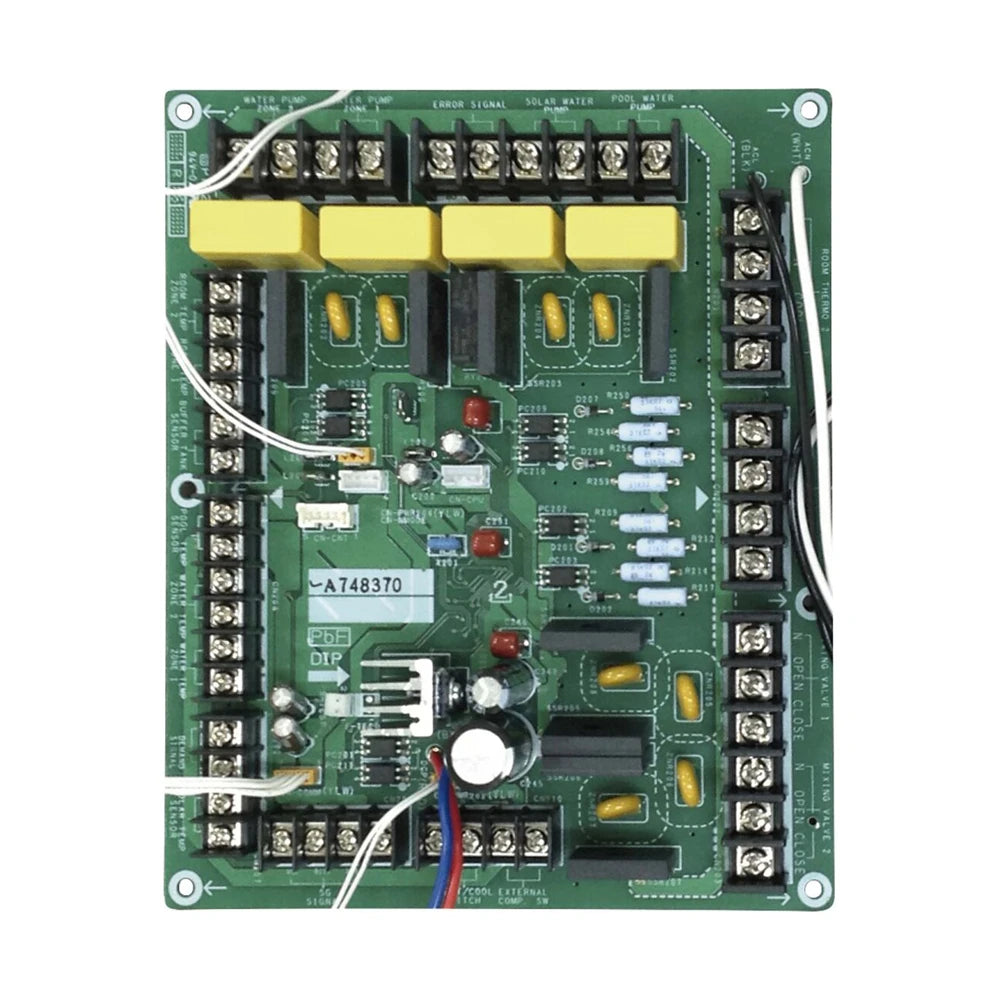

The Panasonic printed circuit board (CZ-NS6P) is an optional accessory designed for all Aquarea heat pump M generations, enabling extended control functions. This accessory board provides the system with more efficient and flexible operation.
Key features
The accessory board includes the following interfaces (clockwise, starting from the top left):
- Room thermostat 2
- Mixing valve 1
- Mixing valve 2
- Compressor shutdown
- Heating/cooling switch
- Smart Grid signal
- Solar temperature sensor
- Compressor current limitation (0-10 V input)
- Water temperature Zone 1
- Water temperature Zone 2
- Pool temperature sensor
- Room temperature sensor Zone 1
- Room temperature sensor Zone 2
- Circulation pump Zone 2
- Circulation pump Zone 1
- Error signal
- Solar circulation pump
- Pool circulation pump
Options
With this accessory, the following can be achieved:
- Control of two mixed heating circuits (additional circulation pump and mixing valve required).
- Control of a solar collector system.
- Power control (0–10 V input option).
- External heating/cooling switching option.
- Smart Grid inputs (SG Ready).
- Compressor shutdown (e.g., if required by the energy provider).
