Panasonic printed circuit board for additional functions of K and L generation equipment
Panasonic printed circuit board for additional functions of K and L generation equipment is backordered and will ship as soon as it is back in stock.
Do you have a question?
Do you have a question?
Product related question? Contact us:
Monday - Friday: 08:00 - 16:00
Payment and shipping
Payment and shipping
Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.
Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:
- Small package: HUF 3,790
- Large package: HUF 6,490
- Heat pump: free shipping
- Solar panel and battery: individual shipping fee (based on size, weight, and quantity)
Panasonic printed circuit board for additional functions of K and L...
Description
Description

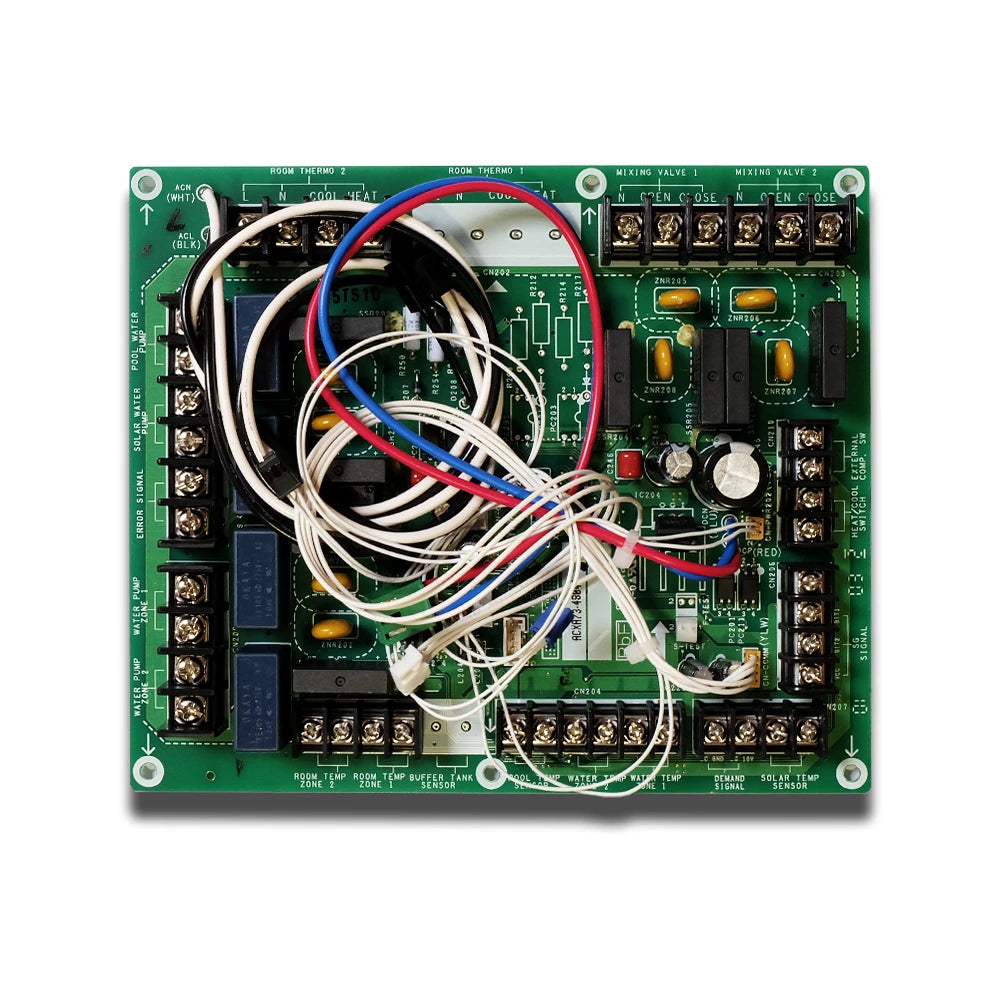

The Panasonic Aquarea CZ-NS5P is an optional accessory designed for all Aquarea heat pump K and L generations, enabling more advanced control functions. This expansion offers extensive connectivity options to enhance system flexibility and efficiency.
Key Features
-
Connectivity Options: The accessory includes several interfaces, including:
- 2 room thermostats
- 2 mixing valves
- 1 circulating pump
- 1 solar circulating pump
- Circulating pumps for Zone 1 and Zone 2
- Fault signal
- Zone 2 room temperature sensor
- Pool temperature sensor
- Water temperature for Zone 1 and Zone 2
- Compressor current limitation (0-10 V input)
- Solar temperature sensor
- Smart Grid signal
- Heating/cooling switch
- Compressor shutdown
Capabilities
With the CZ-NS5P accessory, the following can be achieved:
- Control of two mixed heating circuits (additional circulating pump and mixing valve required).
- Control of a solar thermal system.
- Power control (to 0–10 V input).
- External heating/cooling switching option.
- Smart Grid inputs (SG Ready).
- Compressor shutdown (e.g., if required by the energy provider).
The Panasonic Aquarea CZ-NS5P printed circuit board is an ideal solution for those who want to enhance the performance and functionality of their Aquarea heat pumps, ensuring efficient and flexible operation.
