Huawei LUNA2000-5-E1 battery module 5kWh
Description
Description

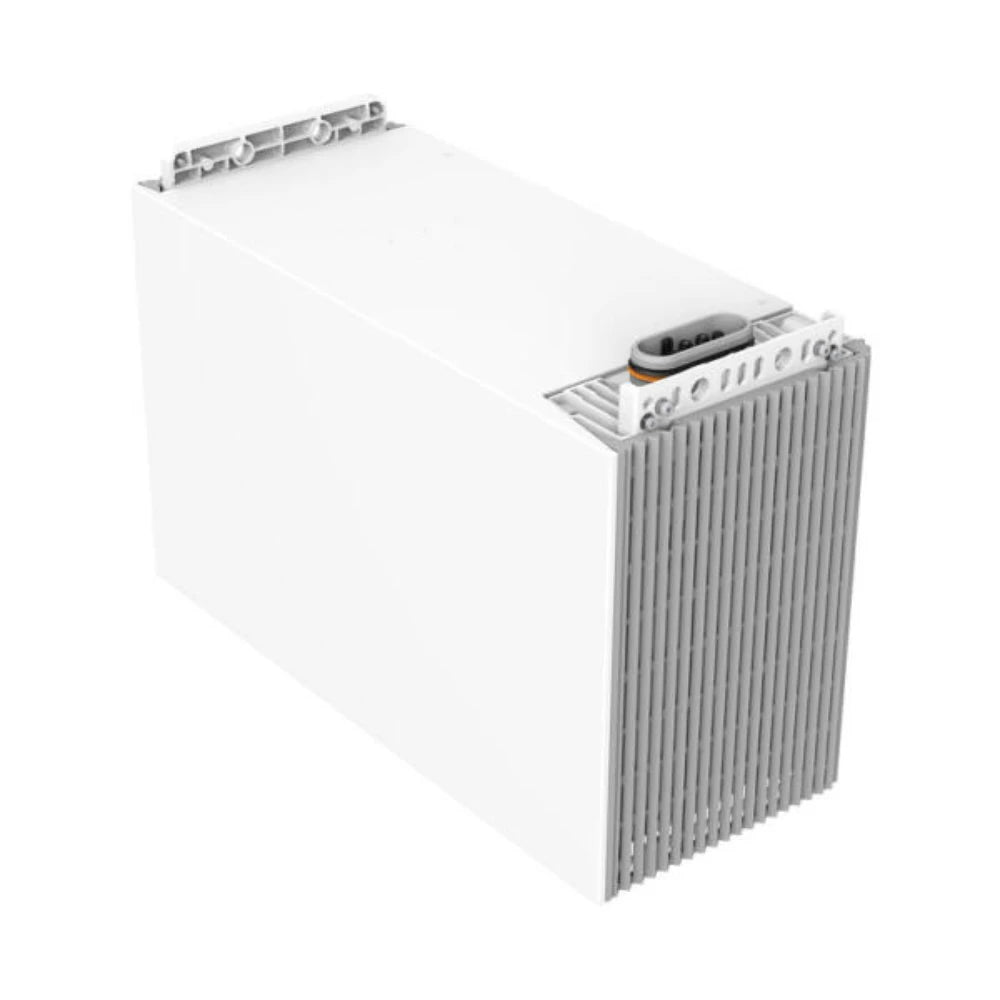

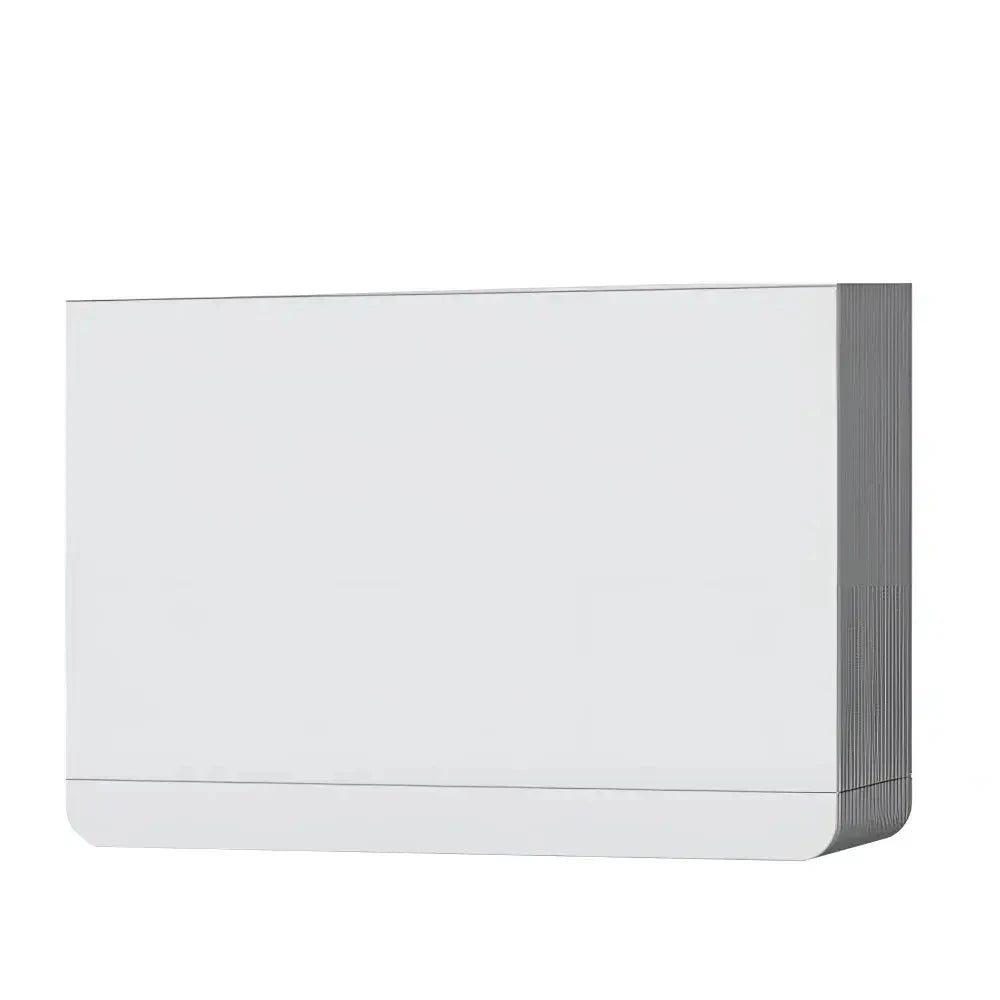

The Huawei LUNA2000-5-E1 is a 5 kWh battery module for the LUNA2000-S1 high-voltage energy storage system. It utilizes safe and long-lasting lithium iron phosphate cell technology and supports a 100% depth of discharge.
The battery module cannot be used on its own. A Huawei LUNA2000-10KW-C1 power module is required for the system to operate. Up to three battery modules can be connected to one power module.

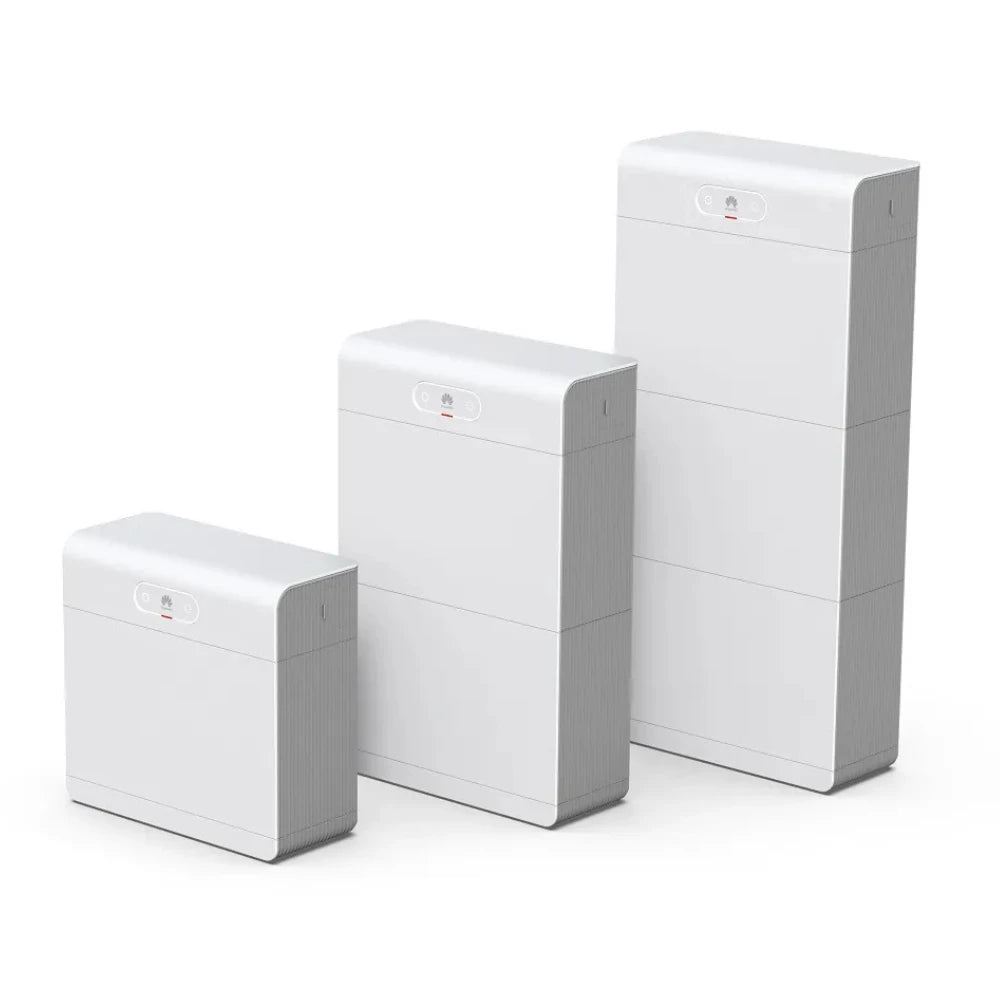

Thanks to its modular design, the storage capacity can be expanded later. The 5 kWh and 6.9 kWh LUNA2000-S1 battery modules can also be combined within the system.
When using a single 5 kWh module, the maximum charging and discharging power is 3.5 kW. The IP66 rated design allows for both indoor and outdoor installation.
Key features
Usable capacity: 5 kWh
Cell technology: lithium iron phosphate, LiFePO₄
Depth of discharge: 100%
Maximum charging and discharging power: 3.5 kW
Design: modularly expandable
Compatible power module: Huawei LUNA2000-10KW-C1
Connectable modules: up to 3 per power module
Combinability: 5 and 6.9 kWh modules
Dimensions: 590 × 255 × 360 mm
Weight: 68 kg
Operating temperature: between –20 and +55 °C
Protection class: IP66
Installation: indoors or outdoors
Cooling: natural convection
