GoodWe Smart Meter GM330 - 3-phase (external CT)
Description
Description

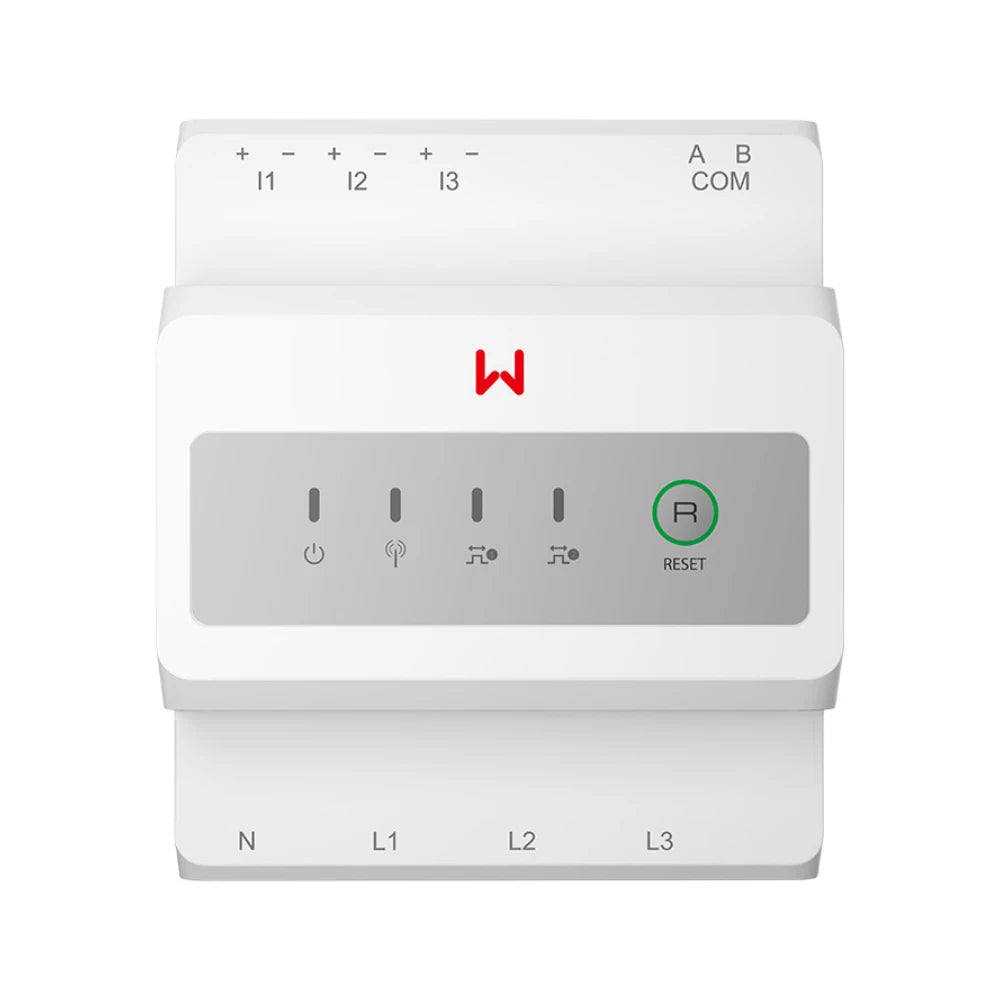

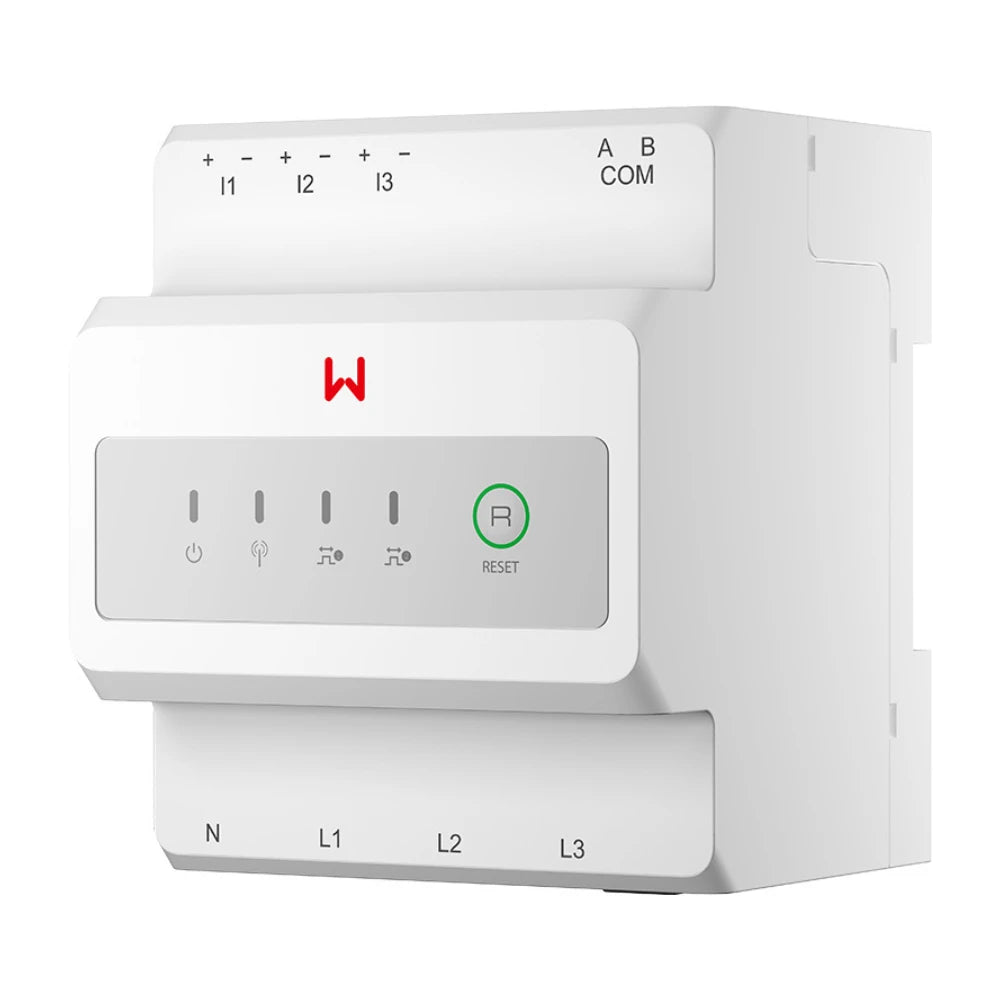

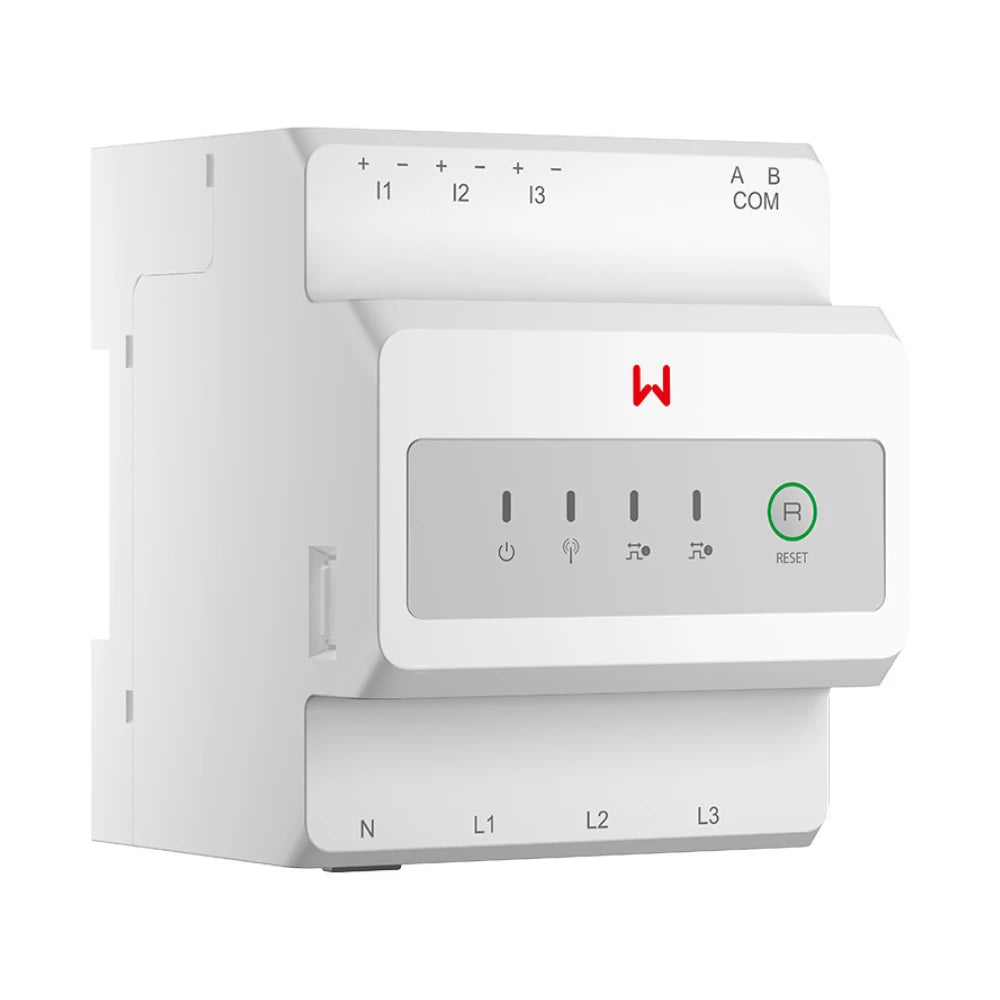

The GoodWe GM330 smart meter is a measuring unit for use with GoodWe inverter systems. It can be used for local consumption measurement, load monitoring, export limitation, and zero-feed applications.
The device operates with an external current transformer (CT) and supports nA:5A CT input. The measurement range is determined by the selected CT, allowing for flexible adaptation to systems with higher currents.
The GM330 can be used with three-phase, split-phase, and single-phase network types. The phase-to-phase voltage range is 172–817 V AC, and the phase-to-neutral voltage range is 100–472 V AC. It connects to the inverter via RS485 communication, with a maximum communication distance of 1000 meters.
The device is DIN rail mountable and has a 4-module housing. It has IP20 protection and is designed for indoor installation. Operating statuses are indicated by 4 LEDs and a reset button.
Key features summarized:
- GoodWe smart meter with external CT connection
- Suitable for three-phase, split-phase, and single-phase networks
- CT input: nA:5A
- Phase-to-phase voltage range: 172–817 V AC
- Phase-to-neutral voltage range: 100–472 V AC
- Accuracy: Class 0.5 for voltage, current, and active energy
- Reactive energy accuracy: Class 1
- RS485 communication, up to 1000 m distance
- DIN rail mountable, 4-module housing
- IP20 protection, 4 LED status indicators, and reset button
The GoodWe GM330 can be used with GoodWe inverter systems when external current transformer measurement, consumption monitoring, or feed-in limitation is required.
