GoodWe Smart Meter GM3000 - 3-phase (fixed 120A)
Description
Description

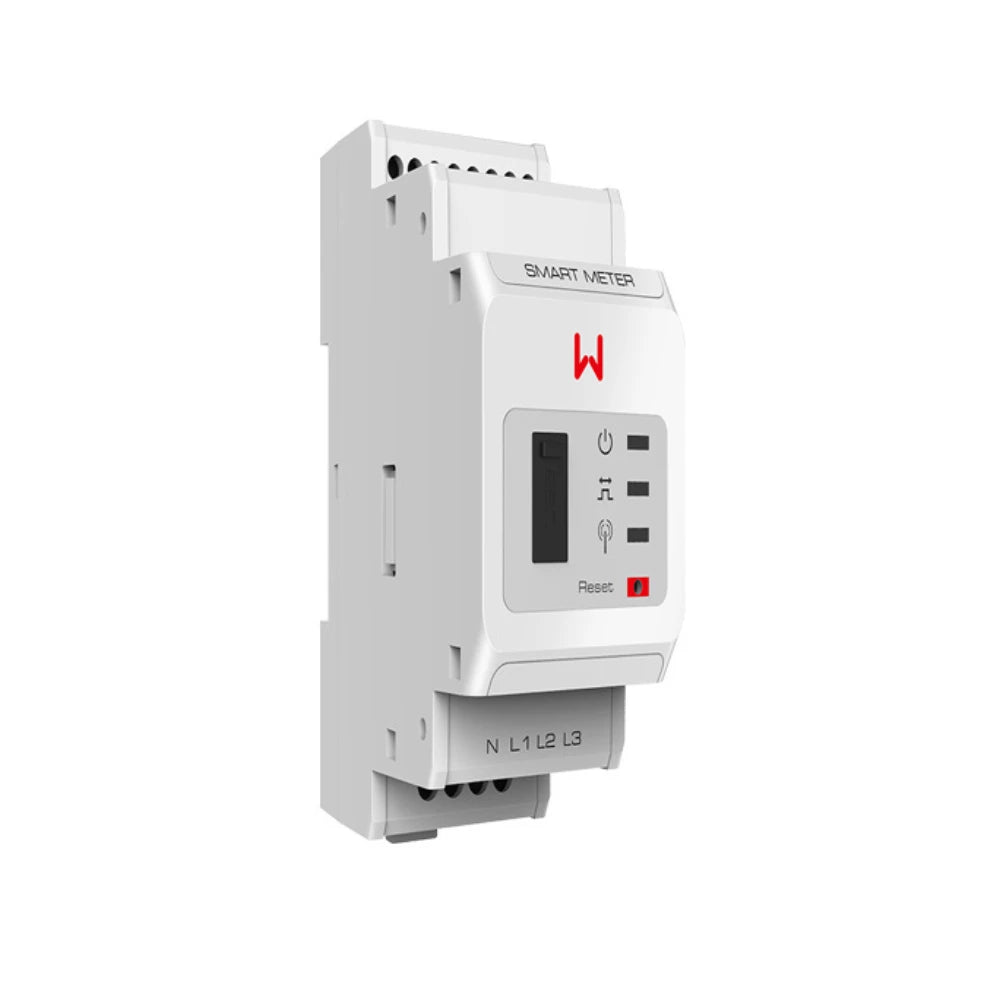

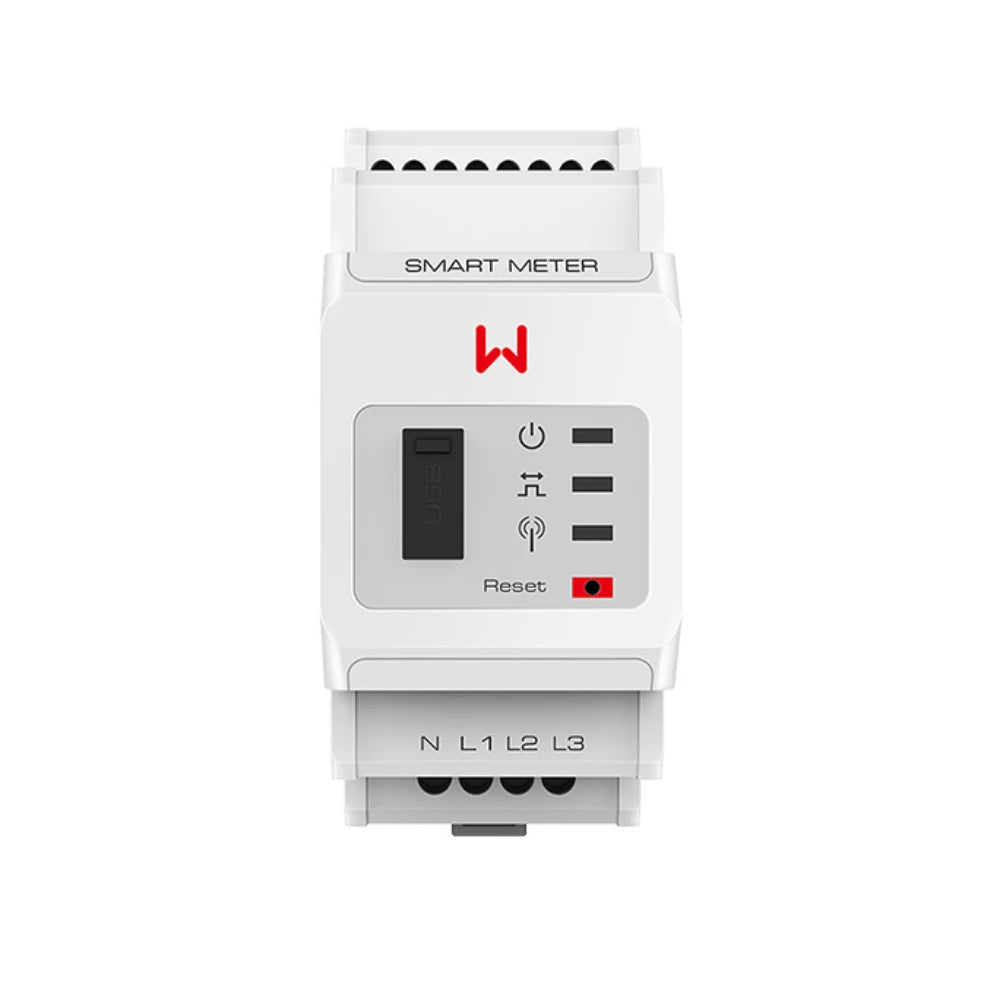

The GoodWe GM3000 three-phase smart meter can be used with GoodWe inverter systems. The device transmits measurement data for grid voltage, current, power, and energy to the inverter and the SEMS system.
The meter can be used on a 3L+N / 400 V AC three-phase network. It communicates with the inverter via an RS485 connection. The device operates with an external openable current transformer; for this version, the current transformer input is 120 A / 40 mA.
The GM3000 is DIN rail mountable, with IP20 protection. It is designed for indoor installation. The device has 3 LEDs to indicate the status of power supply, energy consumption, and communication. It also has a USB port and a reset button.
Measurement data includes voltage, current, active and reactive power, power factor, frequency, as well as active and reactive energy. Measurement accuracy is Class 1 / Class 2, depending on the data.
Key features at a glance:
Three-phase GoodWe smart meter for inverter systems
For 3L+N / 400 V AC networks
Fixed 120 A / 40 mA current transformer design
RS485 communication to the inverter
Measures voltage, current, active and reactive power
Calculates power factor, frequency, active and reactive energy
Measurement accuracy: Class 1 / Class 2, depending on data
IP20 protection, indoor installation
DIN rail mountable design
3 LED status indicators, USB port, and reset button
The GoodWe GM3000 can be used for measurement, consumption monitoring, and energy management tasks in three-phase GoodWe inverter systems.
