GoodWe Lynx D LX D5.0-10 Battery - 5kWh (HV)
Description
Description

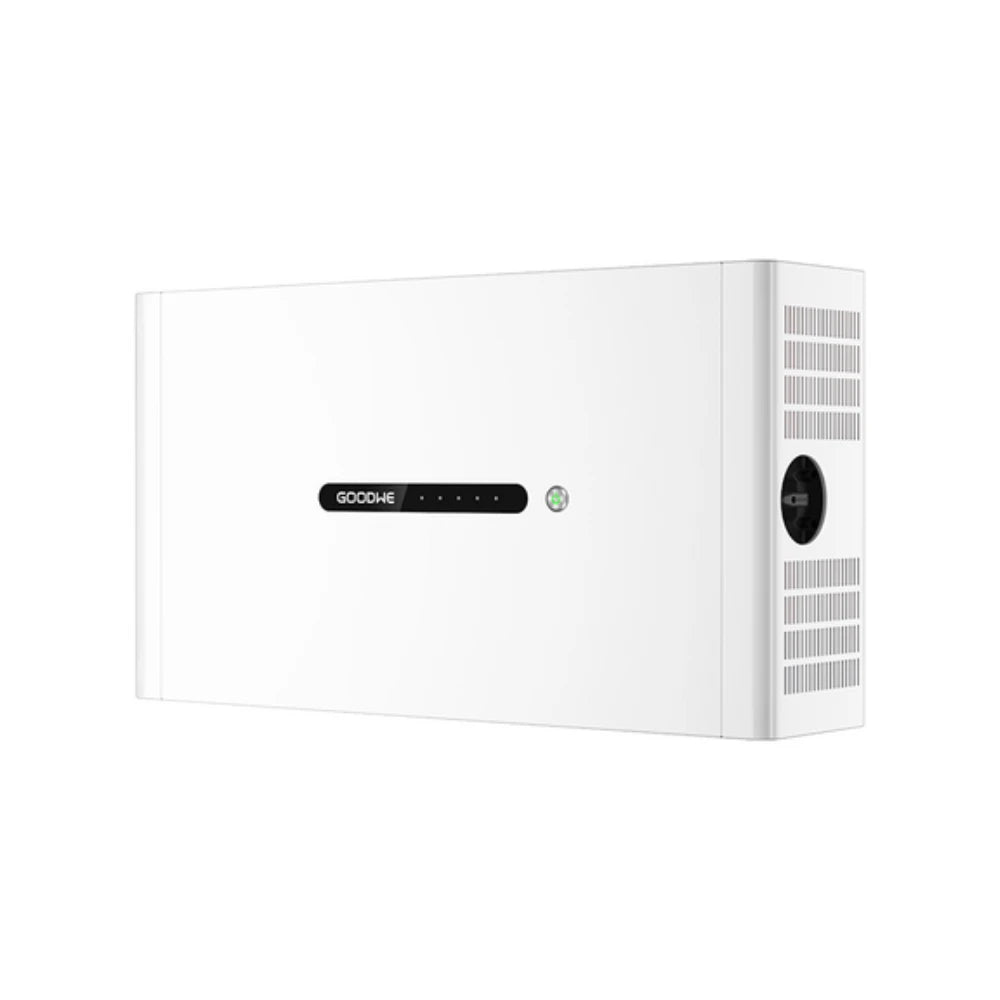

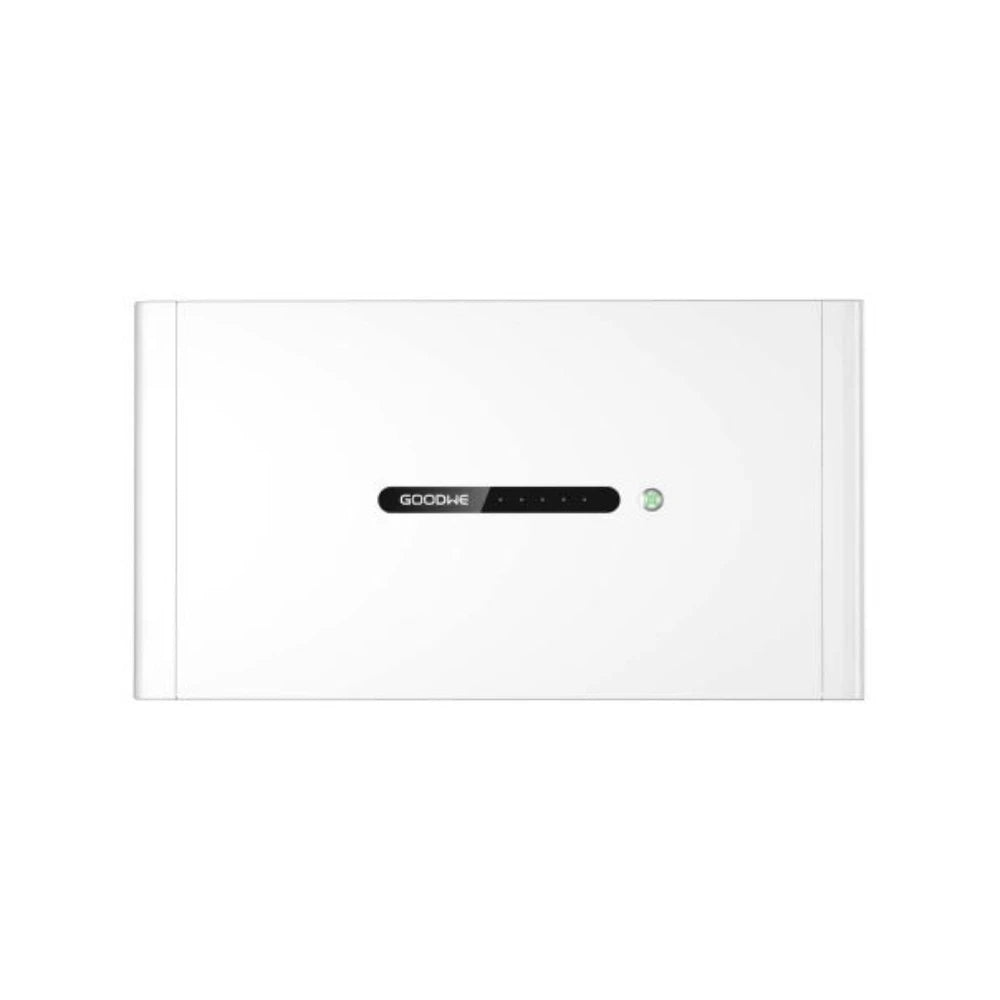

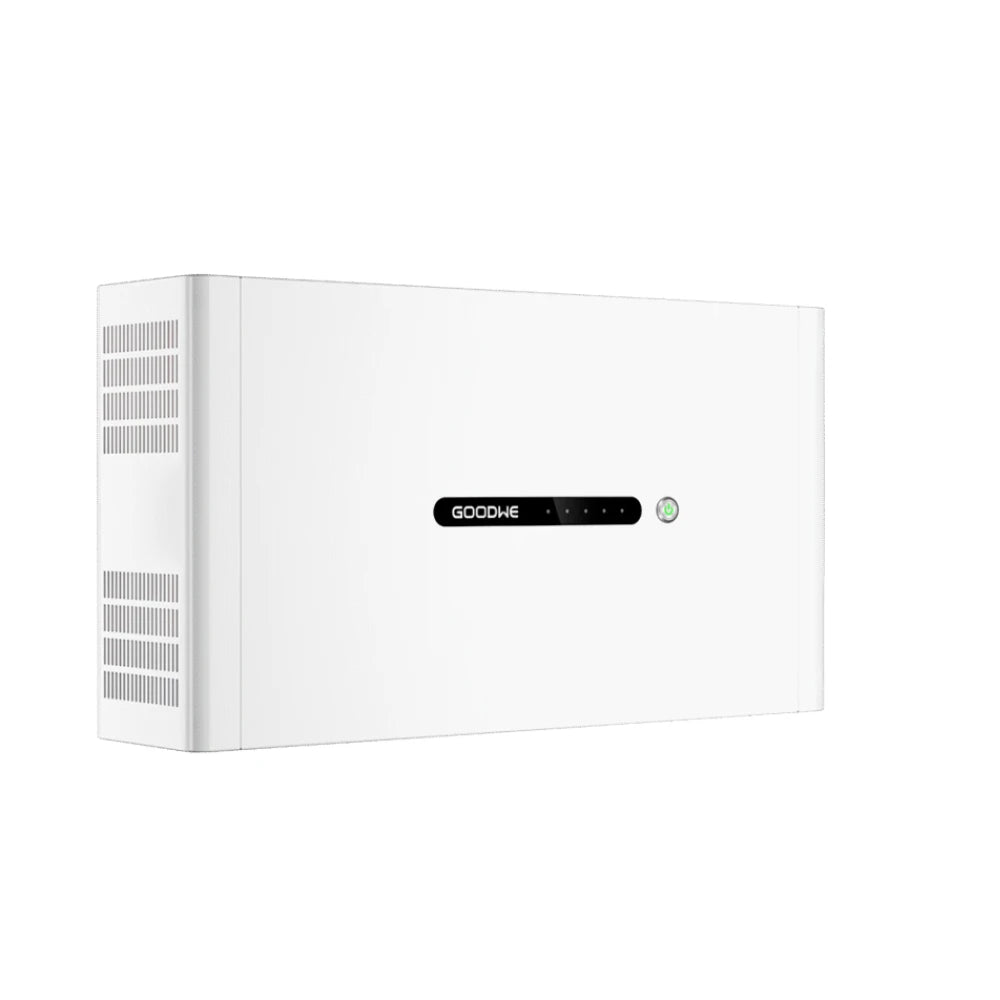

The GoodWe Lynx D LX D5.0-10 high-voltage LFP battery module can be used with GoodWe hybrid inverter systems. One module has an usable energy content of 5 kWh. The system can be expanded to a maximum of 8 modules, allowing for a total battery capacity of 40 kWh.
The module's nominal voltage is 435 V during charging and 380 V during discharging. The output voltage range is 320–480 V. The nominal power is 3 kW, with a short-term peak power of 5 kW for 10 seconds.
The Lynx D series features a stackable design. The modules have a self-recognition function, and according to the manufacturer's documentation, new and older modules can be combined during expansion. The system uses CAN communication and supports remote diagnostics, as well as updates via the inverter.
The device has IP66 protection. Installation can be floor-standing or wall-mounted, based on the system design and manufacturer's specifications.
Key features at a glance:
- High-voltage LFP / LiFePO4 battery module for GoodWe hybrid systems
- Usable energy: 5 kWh per module
- System expansion: up to 8 modules, total 40 kWh
- Output voltage range: 320–480 V
- Nominal power: 3 kW; peak power: 5 kW for 10 seconds
- Stackable design, self-recognizing modules
- Combination of new and older modules supported for expansion
- CAN communication, remote diagnostics, and updates via inverter
- IP66 protection, floor-standing or wall-mounted design
The GoodWe Lynx D LX D5.0-10 battery module is a high-voltage, modularly expandable energy storage solution for GoodWe hybrid systems.
