GoodWe GW22K-HCA-20 EV Charger 22kW - cabled (14A)
Description
Description

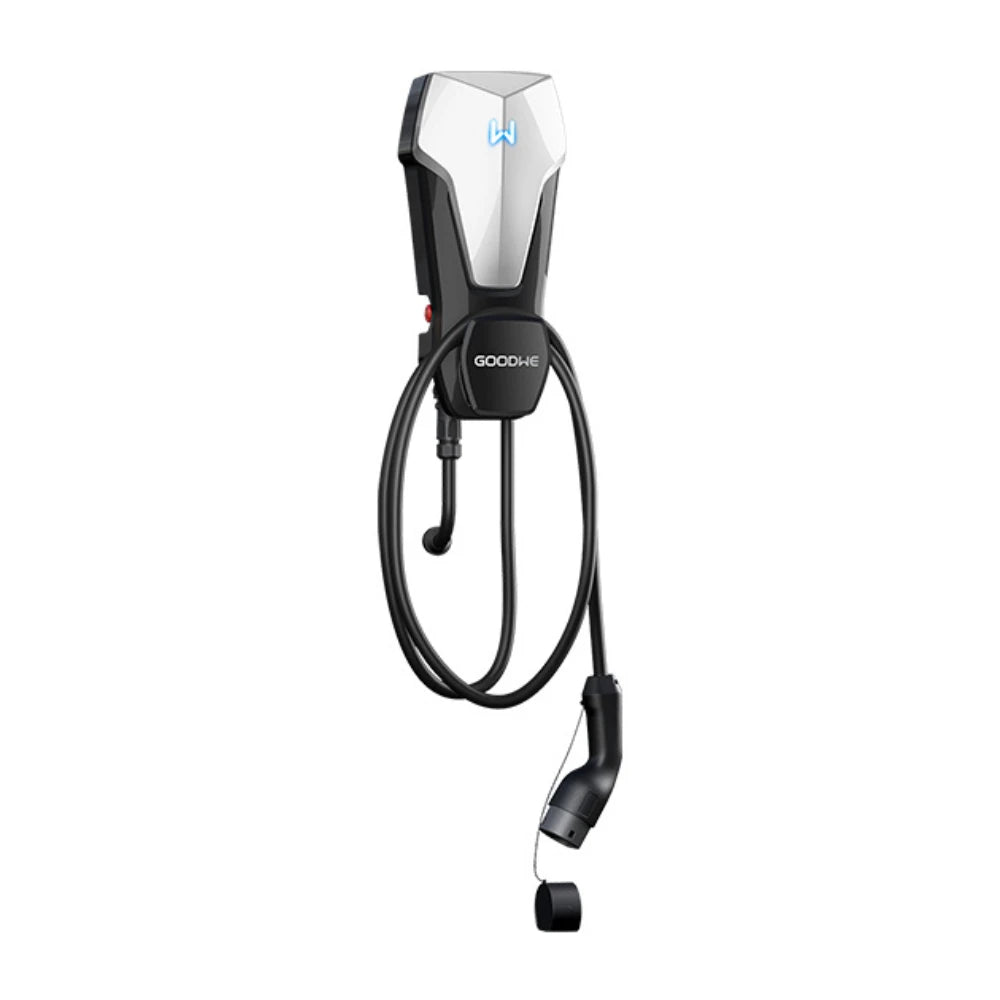

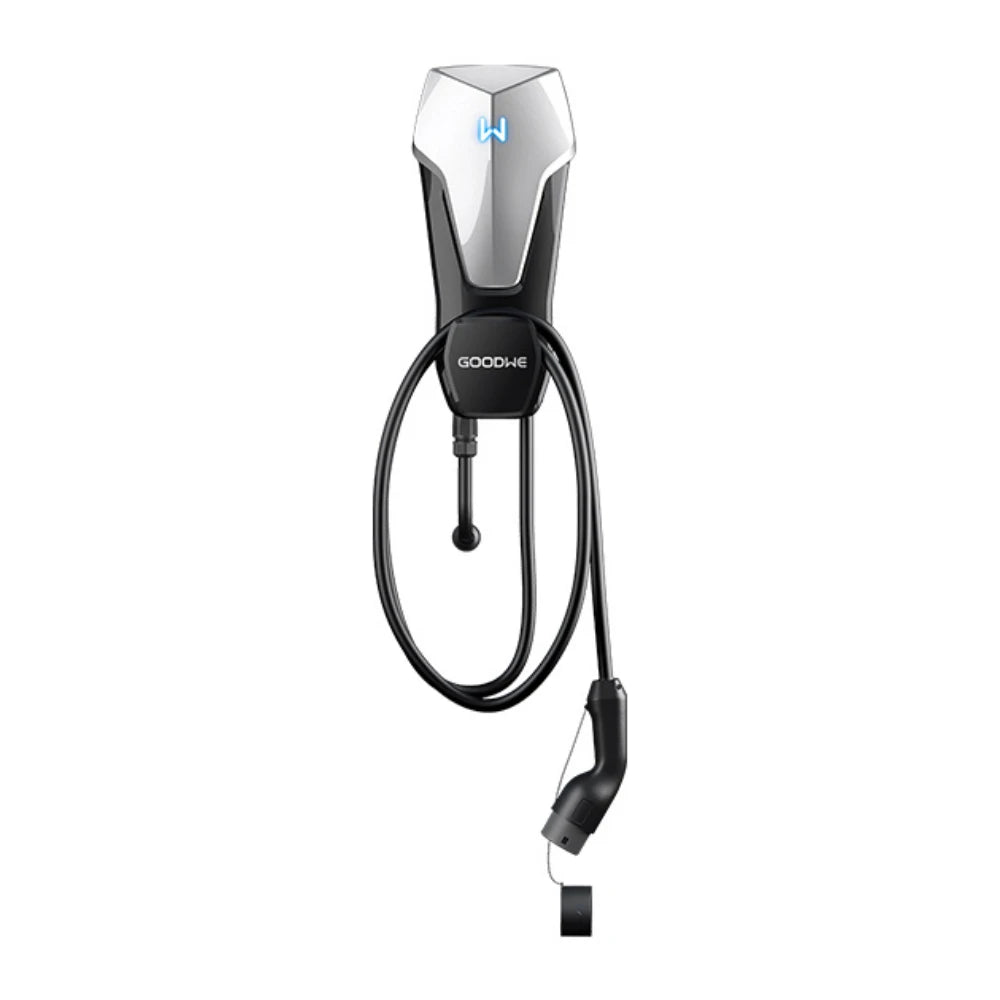

The GoodWe HCA G2 series of wired AC electric vehicle chargers can be used for home and small business charging points. The series is available in 7, 11, and 22 kW power variants, for single-phase and three-phase grid configurations.
The GW7K-HCA-20 operates on a single-phase, 230 V network with a rated current of 32 A. The GW11K-HCA-20 is a three-phase, 400 V version with 11 kW of power and a rated current of 16 A. The GW22K-HCA-20 is also a three-phase, 400 V version, with 22 kW of power and a rated current of 32 A.
The chargers are equipped with a 7.5-meter fixed Type 2 charging cable. Charging can be initiated via an app, an RFID card, or automatically. Communication is available via Bluetooth, Wi-Fi, RS485, and LAN connections.
The HCA G2 series supports multiple charging modes. Features include fast charging, PV Priority, PV + BATT-based charging, timed charging, and dynamic load balancing. In a GoodWe inverter system, these functions can be used to synchronize solar production, battery storage, and car charging.
The enclosure has IP66 protection, and the Type 2 charging connector is IP55 rated. The chargers operate with natural cooling, and their noise level remains below 20 dB. Built-in protection functions include AC 30 mA + DC 6 mA residual current protection, overcurrent, overvoltage, overheating, and ground fault protection, Type III AC surge protection, and emergency stop.
Key features at a glance:
- Wired AC EV charger family in 7, 11, and 22 kW power variants
- GW7K-HCA-20: single-phase, 230 V, 32 A
- GW11K-HCA-20: three-phase, 400 V, 16 A
- GW22K-HCA-20: three-phase, 400 V, 32 A
- 7.5-meter fixed Type 2 charging cable
- App, RFID card, and automatic initiation
- Bluetooth, Wi-Fi, RS485, and LAN communication
- Fast Charging, PV Priority, PV + BATT, and timed charging modes
- Dynamic load balancing
IP66 enclosure, IP55 Type 2 connector, wall or optional stand installation
The GoodWe HCA G2 series is used for fixed wired AC electric vehicle charging, either as a standalone charging point or synchronized with a GoodWe solar and battery system. The versions marked as 14 A may refer to webshop configurations or limited settings, as the manufacturer's datasheet specifies the 11 kW model with a rated current of 16 A and the 22 kW model with 32 A.
