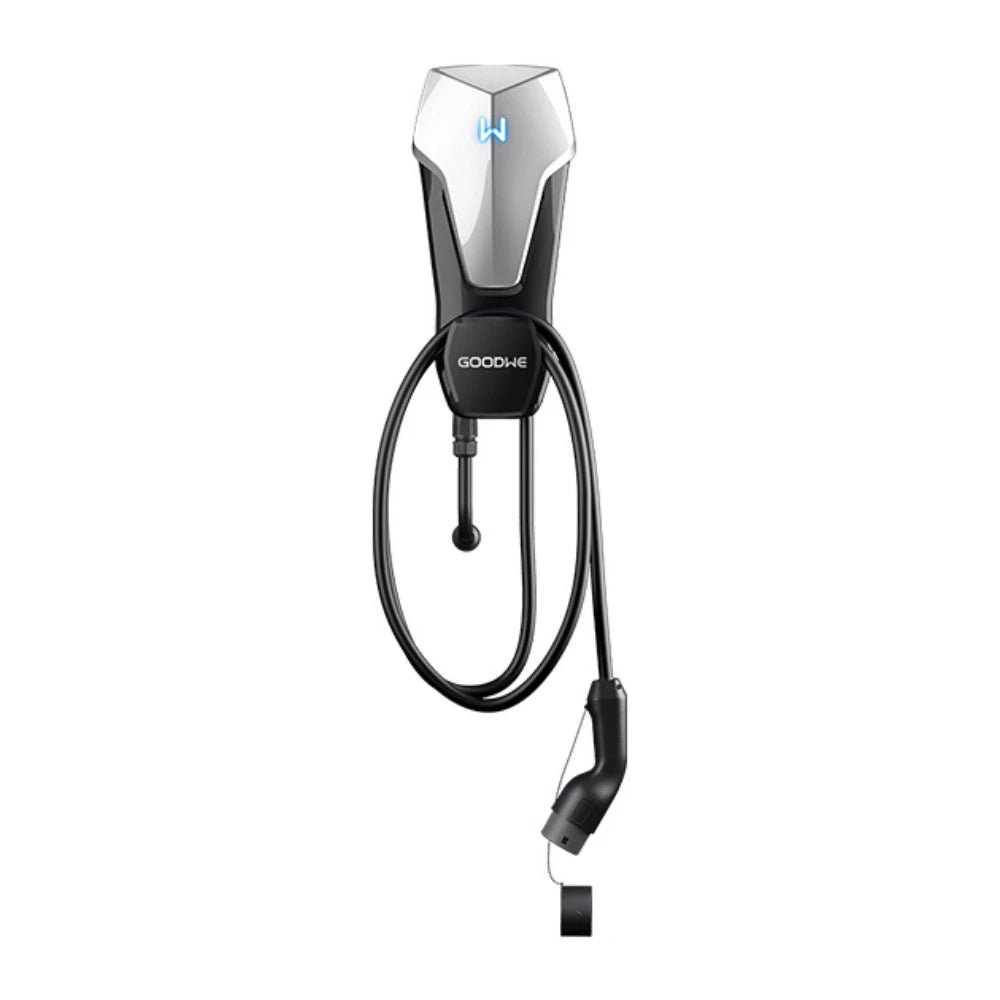

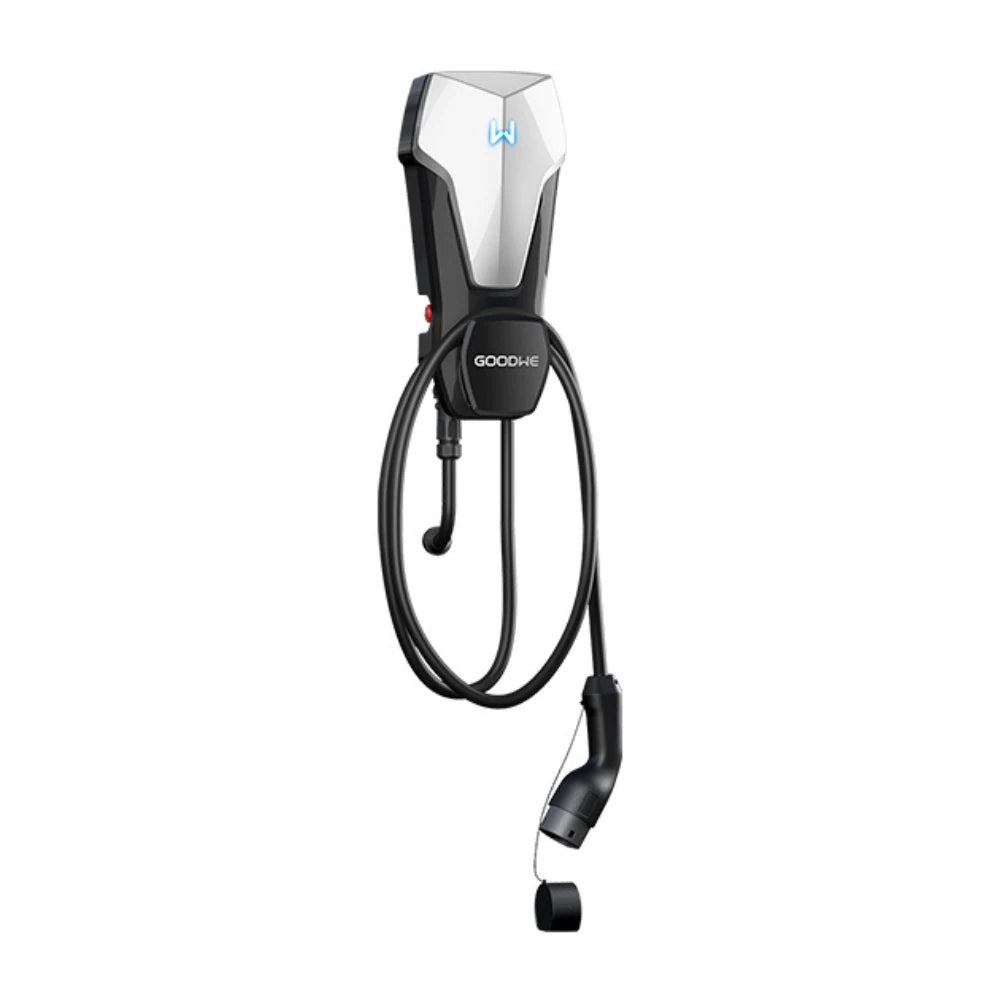

GoodWe GW11K-HCA-20 EV Charger 11kW - cabled (14A)
Description
Description
The GoodWe HCA G2 series of wired AC electric vehicle chargers is designed for home and small business charging points. The series is available in 7, 11, and 22 kW power variants, for single-phase and three-phase grid configurations.
The GW7K-HCA-20 operates on a single-phase, 230 V network with a rated current of 32 A. The GW11K-HCA-20 is a three-phase, 400 V version with 11 kW of power and a rated current of 16 A. The GW22K-HCA-20 is also a three-phase, 400 V version, with 22 kW of power and a rated current of 32 A.
The chargers feature a fixed 7.5-meter Type 2 charging cable. Charging can be initiated via an app, an RFID card, or automatically. Communication is available via Bluetooth, Wi-Fi, RS485, and LAN connections.
The HCA G2 series supports multiple charging modes. Features include fast charging, PV Priority, PV + BATT based charging, scheduled charging, and dynamic load balancing. In a GoodWe inverter system, these functions can be used to coordinate solar production, battery storage, and car charging.
The enclosure has IP66 protection, and the Type 2 charging connector is IP55 rated. The chargers operate with natural cooling, keeping their noise level below 20 dB. Built-in protection features include AC 30 mA + DC 6 mA residual current protection, overcurrent, overvoltage, overheating, and ground fault protection, Type III AC surge protection, and emergency stop.
Key features at a glance:
- Wired AC EV charger series in 7, 11, and 22 kW power variants
- GW7K-HCA-20: single-phase, 230 V, 32 A
- GW11K-HCA-20: three-phase, 400 V, 16 A
- GW22K-HCA-20: three-phase, 400 V, 32 A
- 7.5-meter fixed Type 2 charging cable
- App, RFID card, and automatic start
- Bluetooth, Wi-Fi, RS485, and LAN communication
- Fast Charging, PV Priority, PV + BATT, and scheduled charging modes
- Dynamic load balancing
IP66 enclosure, IP55 Type 2 connector, wall or optional stand installation
The GoodWe HCA G2 series is suitable for fixed wired AC electric vehicle charging, either as a standalone charging point or integrated with a GoodWe solar and battery system. Variants labeled as 14 A may indicate a webshop configuration or limited settings, as the manufacturer's data sheet specifies the 11 kW model with a rated current of 16 A and the 22 kW model with 32 A.
