GoodWe ESA GW5.1-BAT-D-G20 Battery Module - 5.1kWh
Description
Description

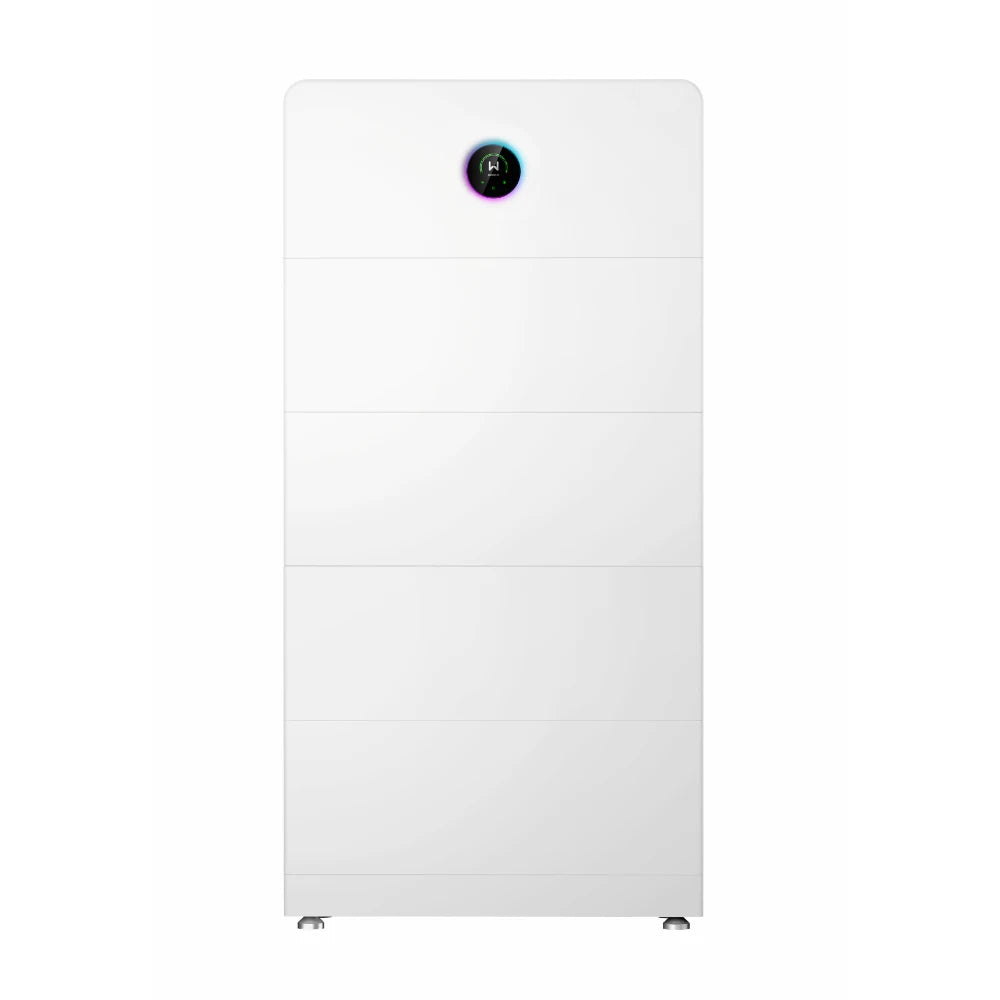

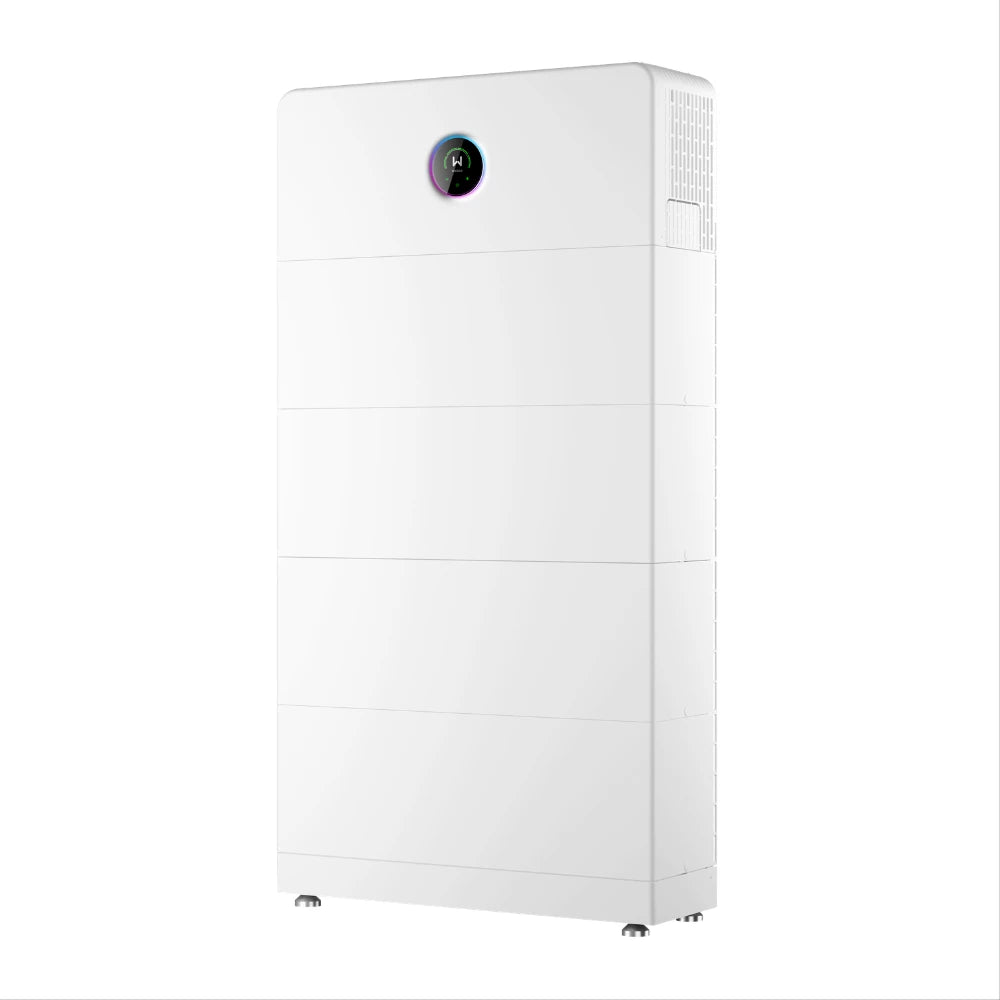

The GoodWe GW5.1-BAT-D-G20 is an LFP battery module belonging to the ESA series. The module has a nominal energy capacity of 5.12 kWh and a usable energy capacity of 5.0 kWh.
The battery can be used as part of the GoodWe ESA All-in-One energy storage system. Up to 12 modules can be used in one system, allowing for staged expansion of storage capacity.
In a three-phase ESA system, the operating voltage range is 700–950 V, and in a single-phase system, it is 350–550 V. The module's maximum input and output power is 5.0 kW, with a peak output power of 7.5 kW for 10 seconds.
The device has IP66 protection and an integrated heating function. The noise level is a maximum of 29 dB. Installation can be as a floor-standing tower or wall-mounted. System communication is achieved via a CAN connection.
Key features at a glance:
- LFP / LiFePO4 battery module for GoodWe ESA systems
- Nominal energy: 5.12 kWh; Usable energy: 5.0 kWh
- Maximum input and output power: 5.0 kW
- Peak output power: 7.5 kW for 10 seconds
- Three-phase operating voltage range: 700–950 V
- Single-phase operating voltage range: 350–550 V
- Up to 12 modules can be used in one system
- IP66 protection, integrated heating function, CAN communication
- Floor-standing or wall-mounted design
The GoodWe GW5.1-BAT-D-G20 battery module can be used in GoodWe ESA energy storage systems, with an expandable battery design.
