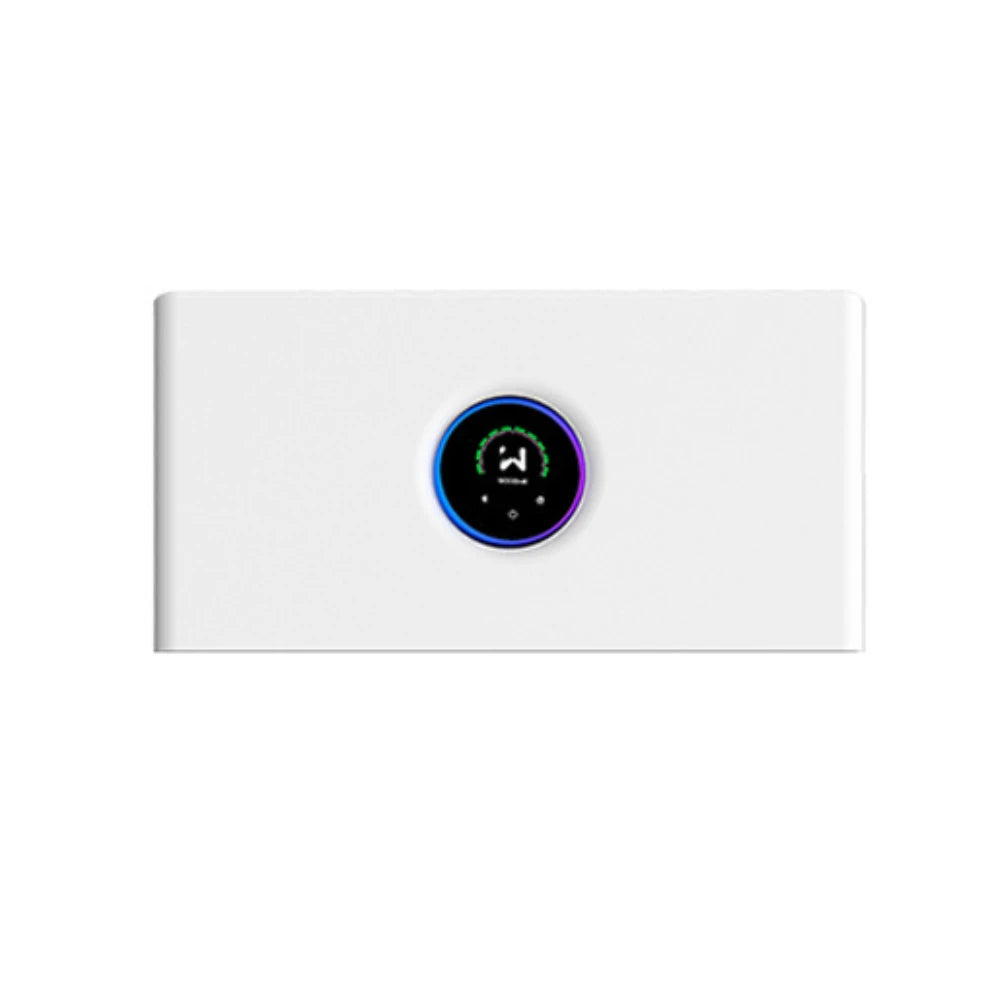

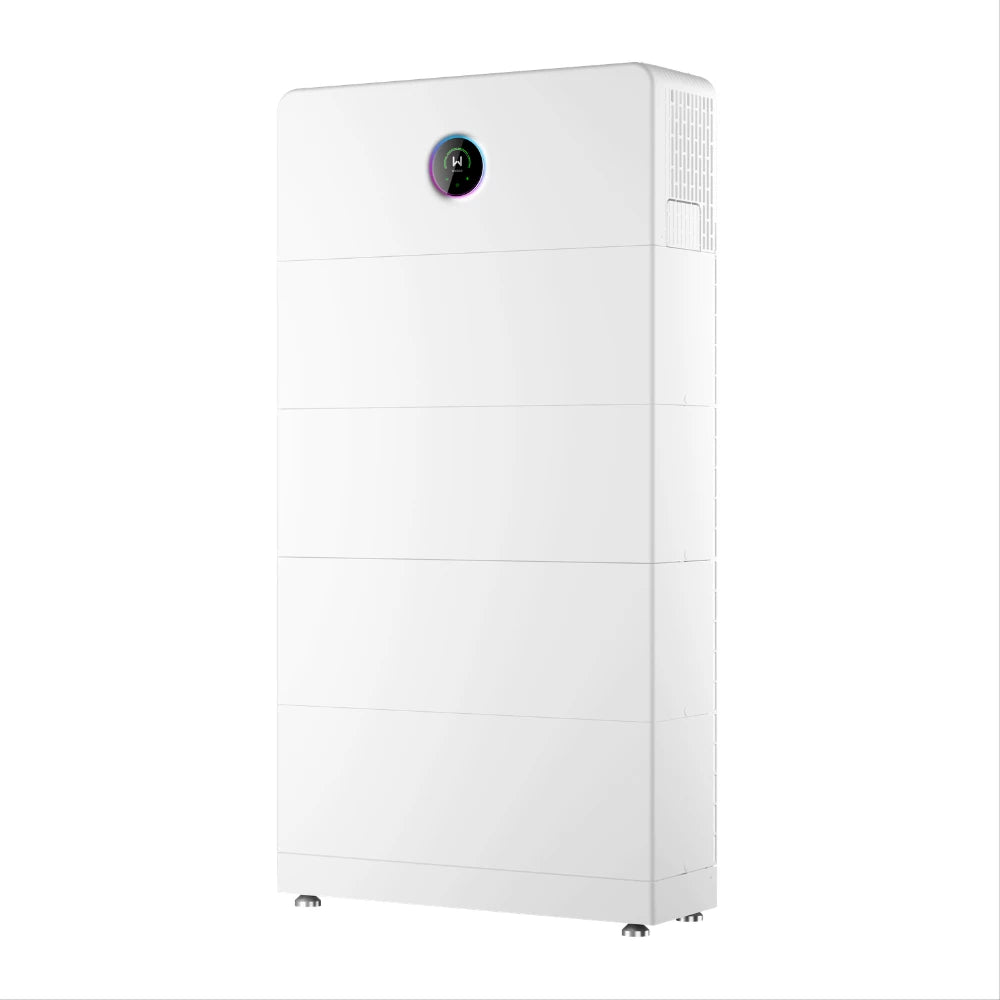

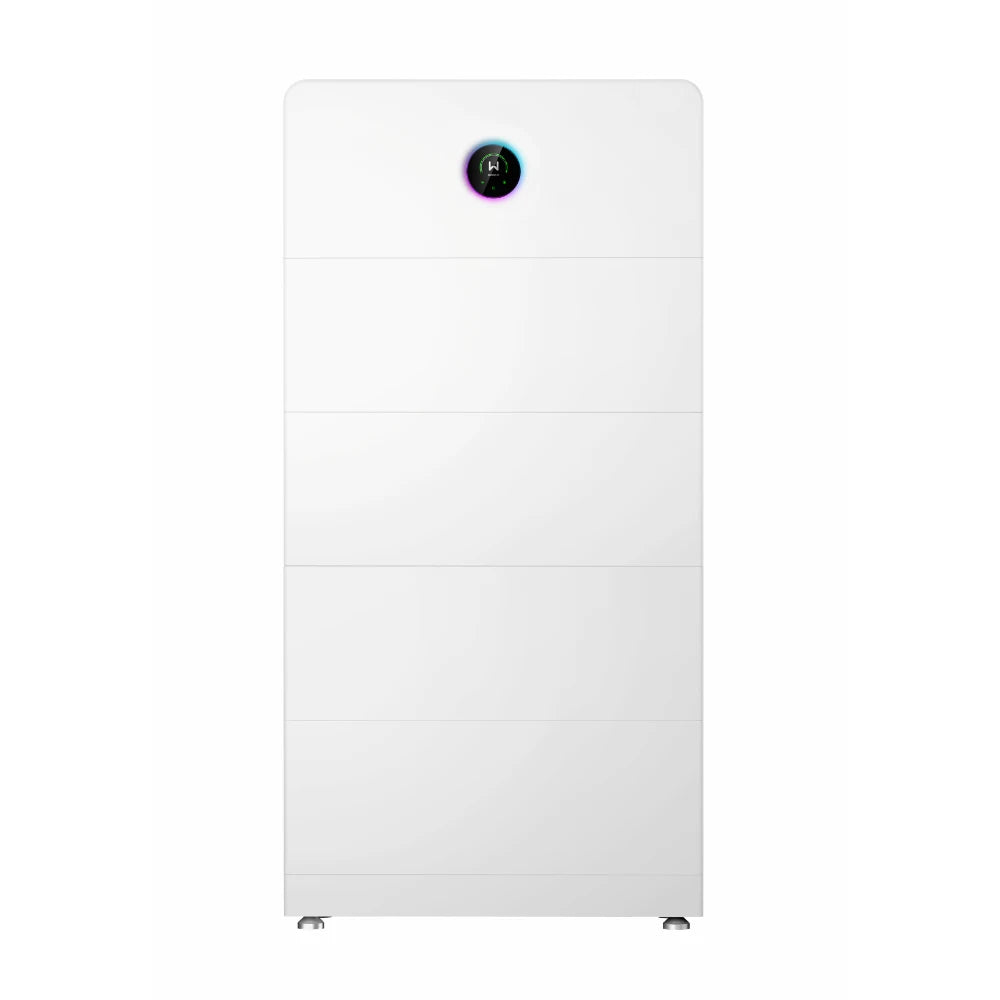

GoodWe ESA GW15K-ETA-G20 hybrid inverter 15kW - 3 phase
Description
Description
The GoodWe ESA series is a three-phase, all-in-one energy storage system designed for residential and light commercial use. The system integrates the inverter, battery, and energy management functions into a single unit. The power range is 5-30 kW, and the battery capacity can be configured from 5-108 kWh.
The energy storage system operates with LFP, or LiFePO4, battery modules. The system can be built with modules of 5.12 kWh and 8.32 kWh nominal capacity, with a maximum of 12 battery modules connected. The three-phase battery operating voltage range is 700-950 V.
On the PV side, 3 or 4 MPPTs are available depending on the model. The MPPT operating range is 120-950 V, with a maximum DC input voltage of 1000 V. The system supports up to 200% DC oversizing.
The backup port can be used to create a separate consumer circuit or a broader backup supply. The switching time between on-grid and off-grid operation is less than 4 ms. The internal bypass throughput is 63 A or 80 A, depending on the model.
The device has IP66 protection and can be installed in a wall-mounted or floor-standing design. The system includes integrated AFCI function, DC switch, and surge protection. Communication is available via CAN, RS485, Wi-Fi, LAN, Bluetooth, and optional 4G connection.
Key features at a glance:
- Three-phase All-in-One energy storage system with a power range of 5-30 kW
- Expandable battery capacity: 5-108 kWh
- LFP / LiFePO4 battery modules, with 5.12 and 8.32 kWh module options
- Up to 12 battery modules can be connected
- 3 or 4 MPPTs, with an MPPT range of 120-950 V
- Maximum DC input voltage: 1000 V, with up to 200% DC oversizing
- Backup switching time: less than 4 ms
- Internal bypass: 63 A or 80 A, depending on the model
- IP66 protection, wall-mounted or floor-standing design
- Integrated AFCI, DC switch, surge protection, and CAN / RS485 / Wi-Fi / LAN / Bluetooth / optional 4G communication
The GoodWe ESA series is designed for three-phase systems where the inverter, battery, energy management, and backup operation are required in an expandable energy storage system.
