Fronius Reserva PRO Module 3.98 kWh - Battery Control Unit
Description
Description

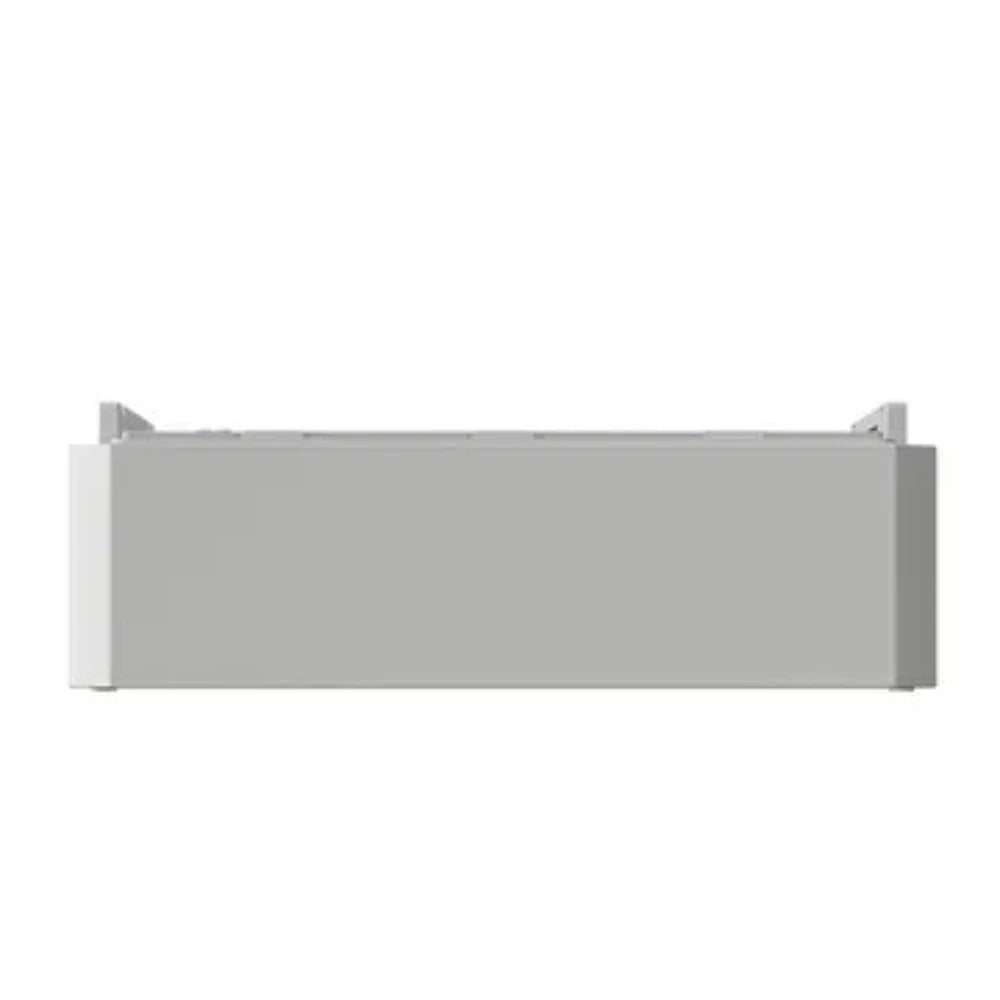

The Fronius Reserva PRO Module is a battery module with a usable capacity of 3.98 kWh for the high-voltage Reserva PRO energy storage system. It is made with safe and long-lasting LiFePO₄ cell technology.
The module has a nominal voltage of 70.84 V and an operating voltage range of 55–80.3 V. It cannot be used independently; a Reserva PRO BMS, a base unit, and at least three battery modules are required for its operation.
A system can be configured with 3–8 modules. The required number of modules should be determined based on the desired storage capacity and the battery-side voltage range of the connected Fronius inverter.

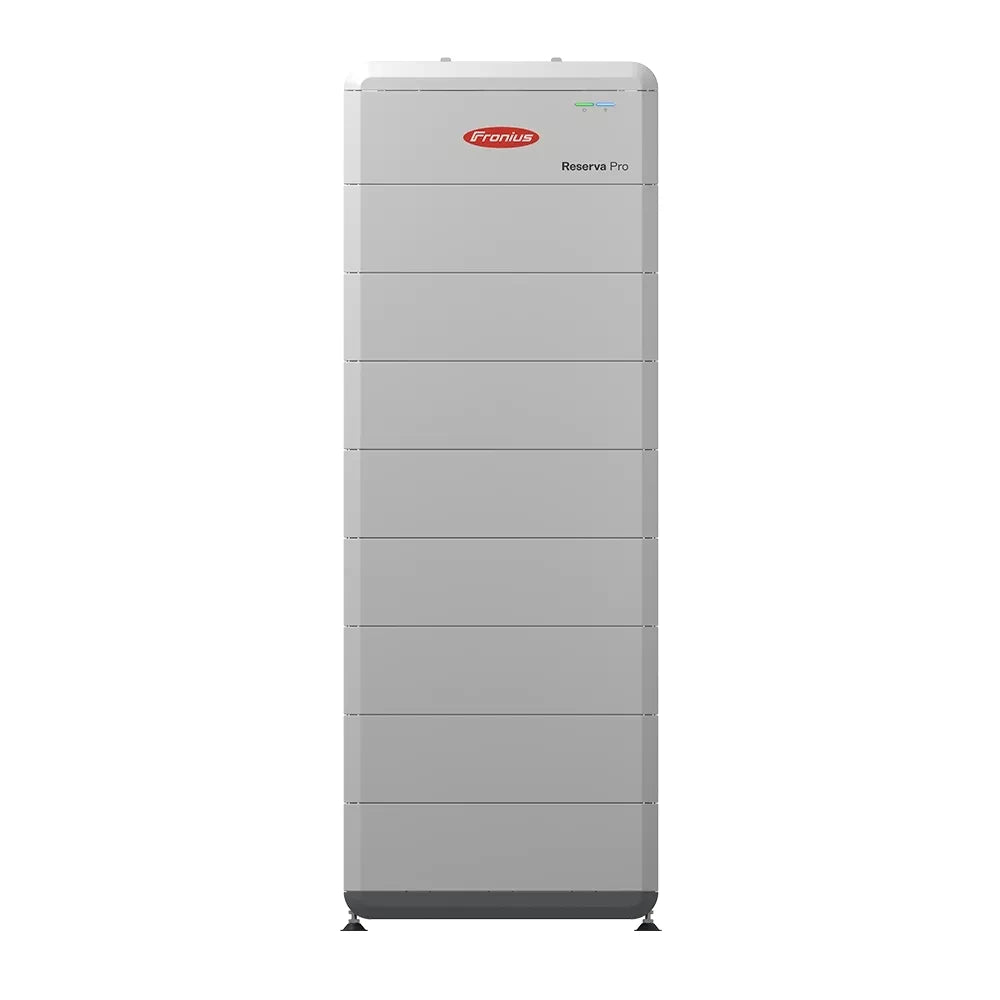

The entire Reserva PRO system has IP65 protection, allowing it to be installed indoors or in a suitably protected outdoor location. Its operating temperature range is between –20 and +50 °C.
Key features
Usable energy: 3.98 kWh
Cell technology: LiFePO₄
System type: high voltage
Nominal voltage: 70.84 V
Operating voltage range: 55–80.3 V
Number of modules in a system: 3–8 units
Required accessories: Reserva PRO BMS and base unit
Operating temperature: between –20 and +50 °C
System protection class: IP65
Dimensions: 160 × 570 × 440 mm
Weight: 36 kg
Warranty: 10 years, with 80% guaranteed battery health
Important: cannot be used independently
