Fronius Reserva PRO BMS - Battery Management Unit
Description
Description

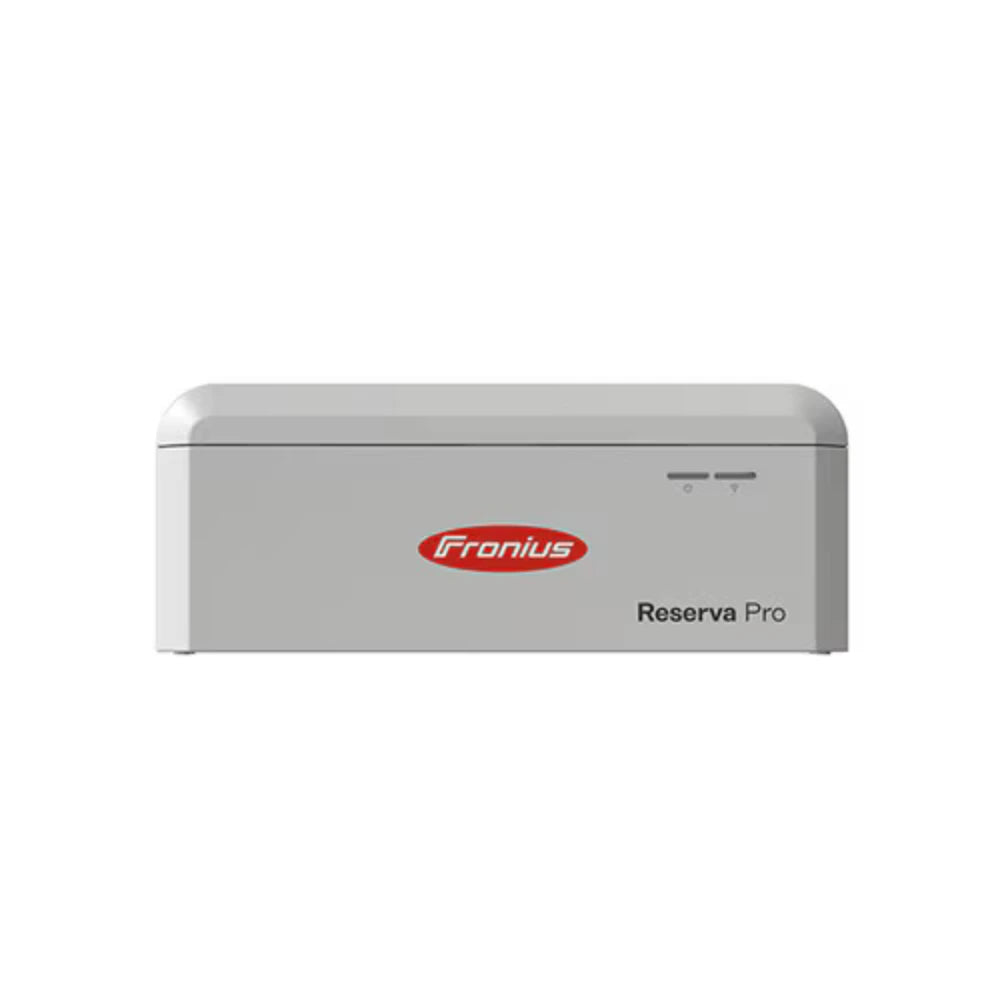

The Fronius Reserva PRO BMS is the control unit for the high-voltage Reserva PRO battery system. It monitors the connected battery modules and ensures communication between the battery and the compatible Fronius inverter.
It communicates with the inverter via CAN or Modbus RS485, and the battery modules are controlled via ISO-SPI connection.

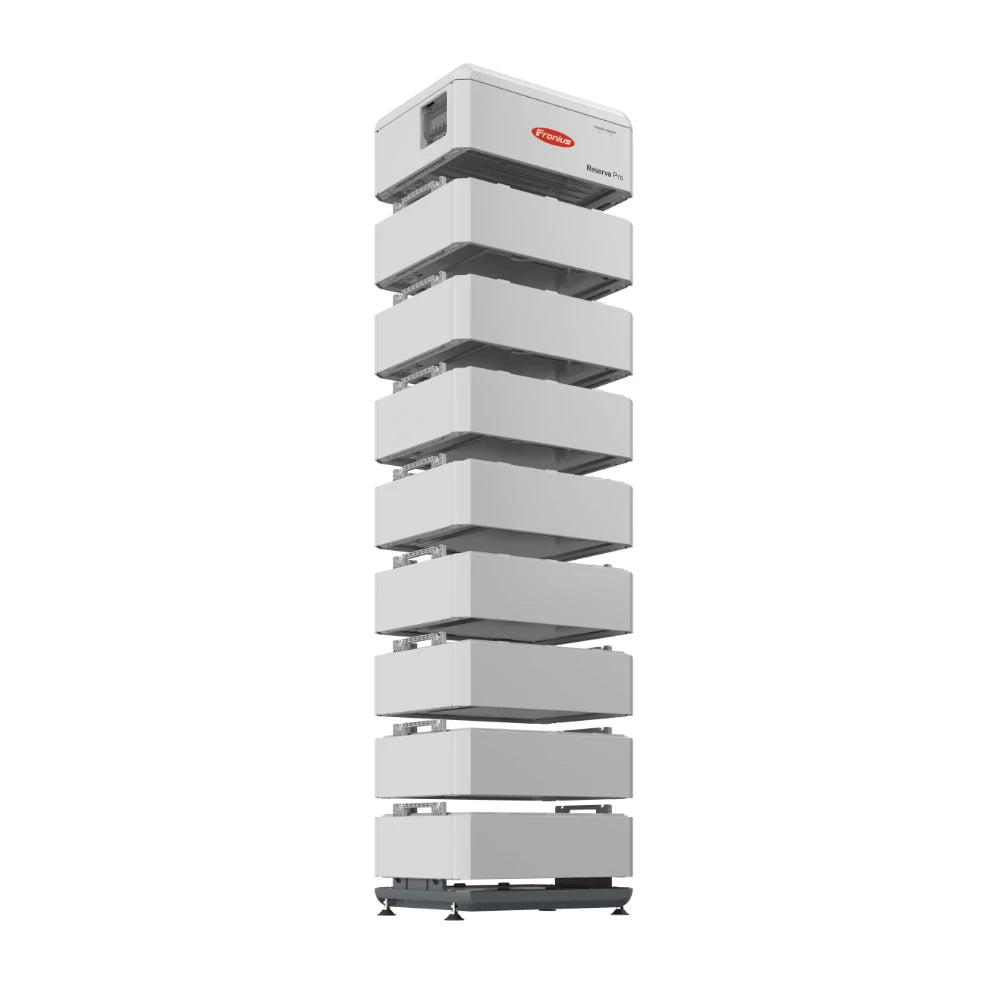

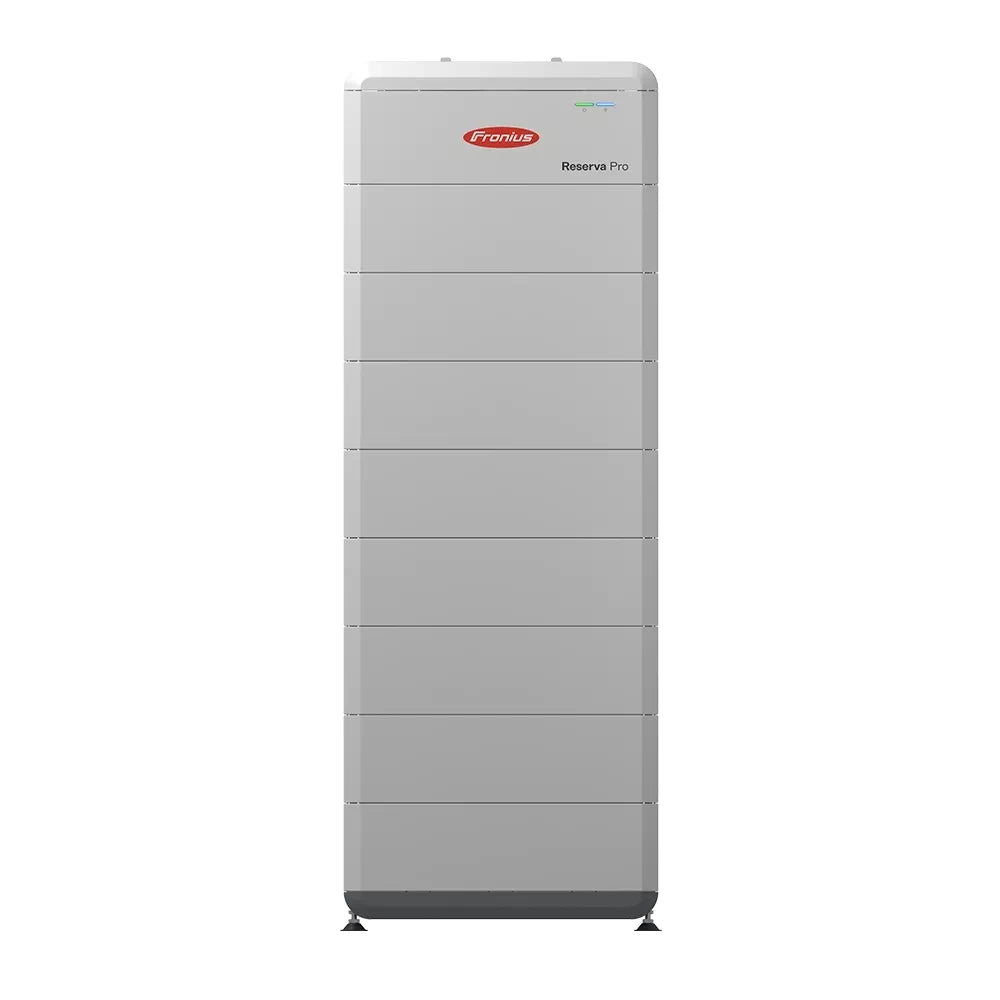

A Reserva PRO system can be built with 3-8 battery modules, creating a usable storage capacity of 11.9-31.9 kWh. The system can be used with Fronius Primo GEN24 Plus, Symo GEN24 Plus, and Verto Plus inverters, among others.
The BMS does not store energy independently. The complete system requires Reserva PRO battery modules and the corresponding base unit.
Key features
System type: high-voltage
Number of battery modules: 3-8 pcs
Usable system capacity: 11.9-31.9 kWh
Inverter communication: CAN or Modbus RS485
Module communication: ISO-SPI
Compatible inverters: Fronius Primo GEN24 Plus, Symo GEN24 Plus, and Verto Plus
Dimensions: 225 × 570 × 440 mm
Weight: 10 kg
Important: cannot be used for energy storage independently
