FoxEss  |  SKU: FOXESS-EV-CHARGER-11-CABLE-BLACK

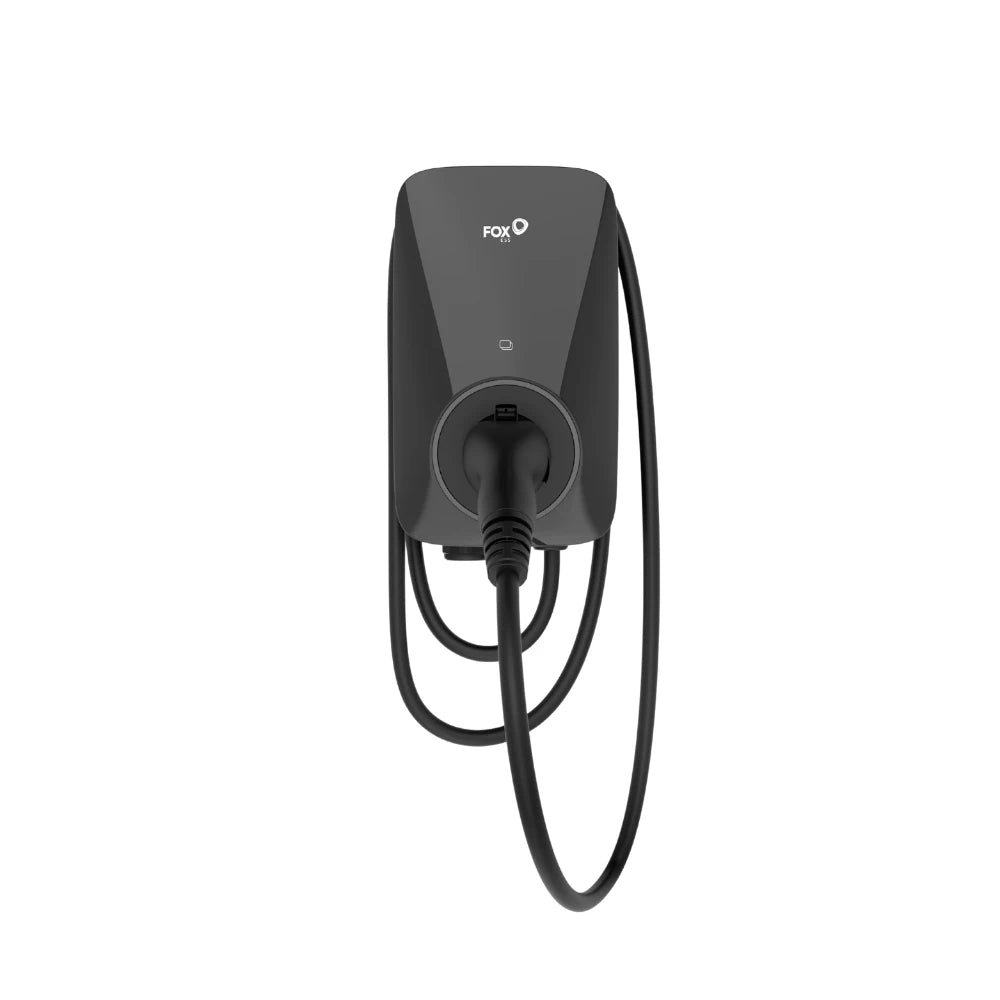

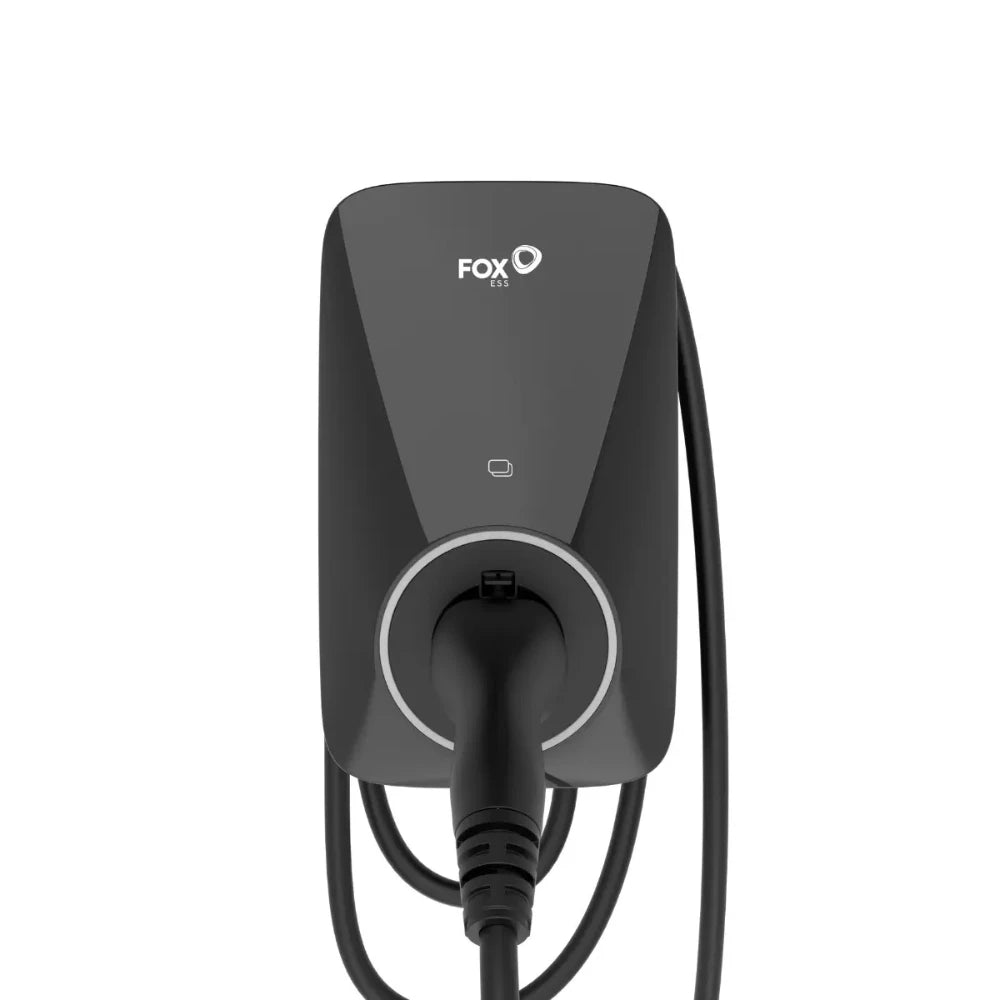

FoxEss EV Charger 11kW - cabled

221.768 Ft
Tax included

You can also pay in EUR (€)

Do you have a question?

Product related question? Contact us:

Monday - Friday: 08:00 - 16:00

+36 20 220 3049 | +36 70 513 3558

info@energiamegujitas.hu

Payment and shipping

Payment
The order total can be paid by bank transfer in advance, in HUF or EUR. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer in advance is possible. The proforma invoice will be sent via email and will contain the necessary bank transfer details.

Shipping
We deliver orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal pickup is possible by prior arrangement. Shipping costs are determined based on the size, weight, and type of the ordered product:

  • Small package: HUF 3,790
  • Large package: HUF 6,490
  • Heat pump: free shipping
  • Solar panel and battery: individual shipping fee (based on size, weight, and quantity)

Description

The FoxESS A Series AC EV charger family is suitable for electric vehicle charging at home and in small businesses. The series is available in 11 kW and 22 kW three-phase versions, in both cabled and cable-free (Type 2 socket) designs.

The 11 kW model operates on a 400 V three-phase network with a maximum output current of 16 A. The 22 kW version has a maximum output current of 32 A. The cabled version has a fixed Type 2 charging cable, while the socketed version can be used with a separately connected Type 2 charging cable.

Charging can be initiated via Plug & Charge mode, an RFID card, or an application. The device supports scheduled charging, dynamic load balancing, and integration with solar power systems.

Communication is available via Bluetooth, Wi-Fi, optional 4G, and LAN connection. The charger is OCPP 1.6 or OCPP 2.0.1 compatible, allowing for integration with external charge management systems in suitable environments.

The housing has IP55 protection and IK08 impact resistance. Built-in protection provides safety functions against overcurrent, overvoltage, undervoltage, overheating, and ground fault.

Key features at a glance:

  • Three-phase AC EV charger family with 11 kW and 22 kW power
  • 11 kW: 400 V, max. 16 A; 22 kW: 400 V, max. 32 A
  • Cabled and Type 2 socket versions
  • Plug & Charge, RFID card, and app-based initiation
  • Scheduled charging and dynamic load balancing
  • Support for integration with solar power systems
  • Bluetooth, Wi-Fi, optional 4G, and LAN communication
  • OCPP 1.6 / 2.0.1 compatibility
  • IP55 protection, IK08 impact resistance
  • Protection against overcurrent, overvoltage, undervoltage, overheating, and ground fault

The FoxESS A Series EV chargers can be used for three-phase electric vehicle charging systems, in cabled or Type 2 socket versions.
