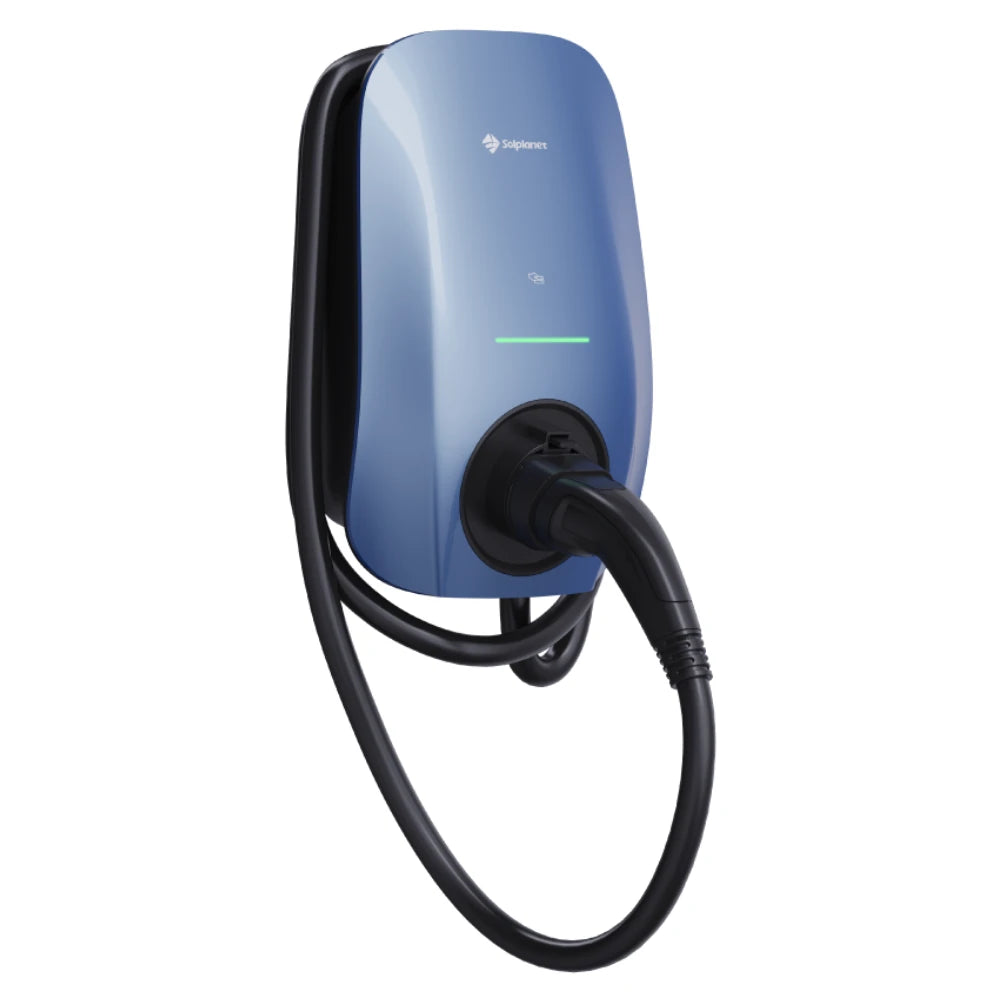

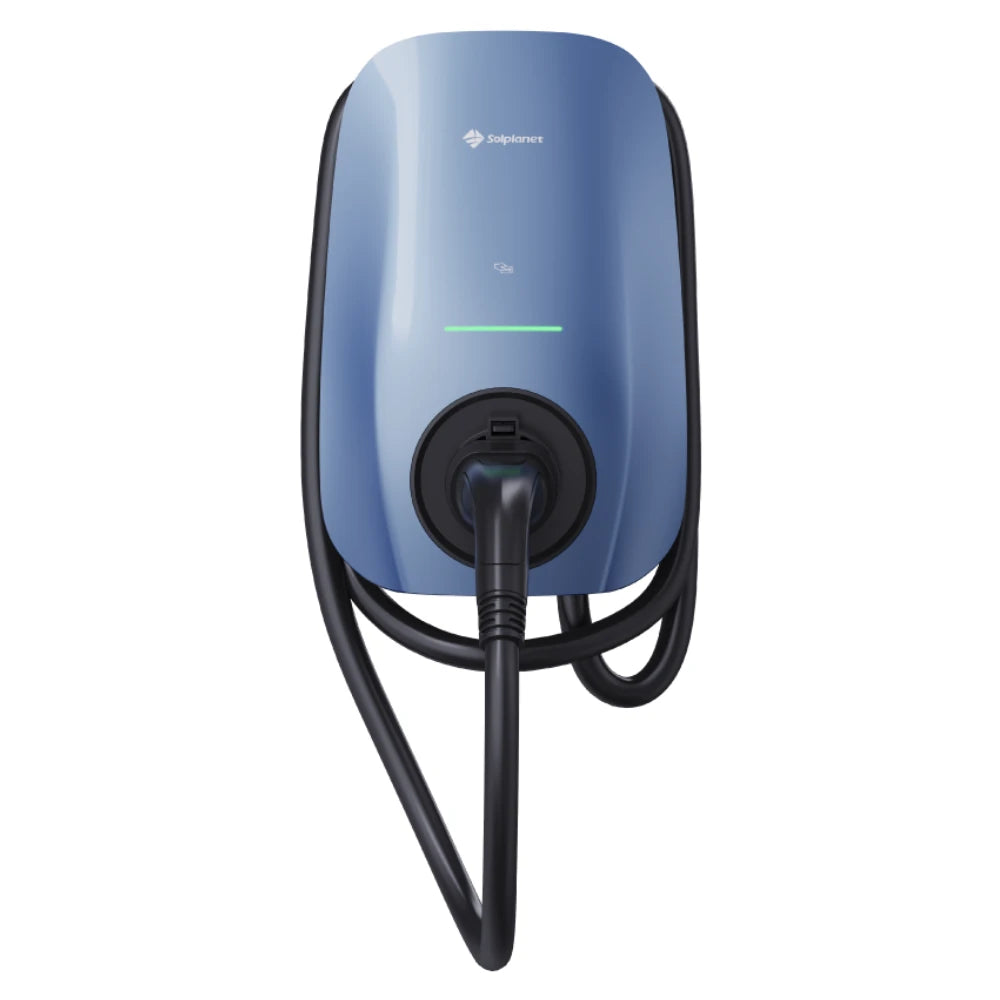

Solplanet Apollo EV Charger 22kW - Cabled
Description
Description
The Solplanet Apollo series of wall-mounted AC electric vehicle chargers for home and small business use. The series is available in 11 kW and 22 kW three-phase versions, with cabled and cable-free, Type 2 socket designs.
The 11 kW model operates on a 400 V AC three-phase network with a maximum output current of 16 A. The 22 kW version has a maximum output current of 32 A. Cabled models are available with a fixed Type 2 charging connector and 5 or 7.5 meter cables, while the socketed version allows for a separate charging cable to be connected.
Communication is via Wi-Fi, Bluetooth, RS485, and optional LAN connection. Charging can be initiated and managed via RFID / NFC identification or an application. The device also supports the OCPP 1.6J protocol.
With an optional energy meter, solar charging function and dynamic load balancing can also be implemented. The device housing has IP65 protection, IK10 impact resistance, and is UV-resistant. The chargers operate with natural convection cooling, and status indication is provided by an LED light strip.
Built-in protection features include DC leakage current, overheating, grounding, and overvoltage protection. The exact installation design must be determined based on network conditions and local regulations.
Key features at a glance:
- Three-phase AC EV chargers with 11 kW and 22 kW power
- Cabled and Type 2 socket designs
- 11 kW: 400 V AC, max. 16 A; 22 kW: 400 V AC, max. 32 A
- Cabled version: 5 m or 7.5 m Type 2 charging cable
- Wi-Fi, Bluetooth, RS485, and optional LAN communication
- RFID / NFC identification and app control
- OCPP 1.6J support
- Optional energy meter for solar charging and dynamic load balancing
- IP65 protection, IK10 impact resistance, UV-resistant housing
- Natural cooling, LED status indication
The Solplanet Apollo EV charger series is suitable for three-phase, wall-mounted AC electric vehicle charging systems, available in cabled or Type 2 socket designs.
