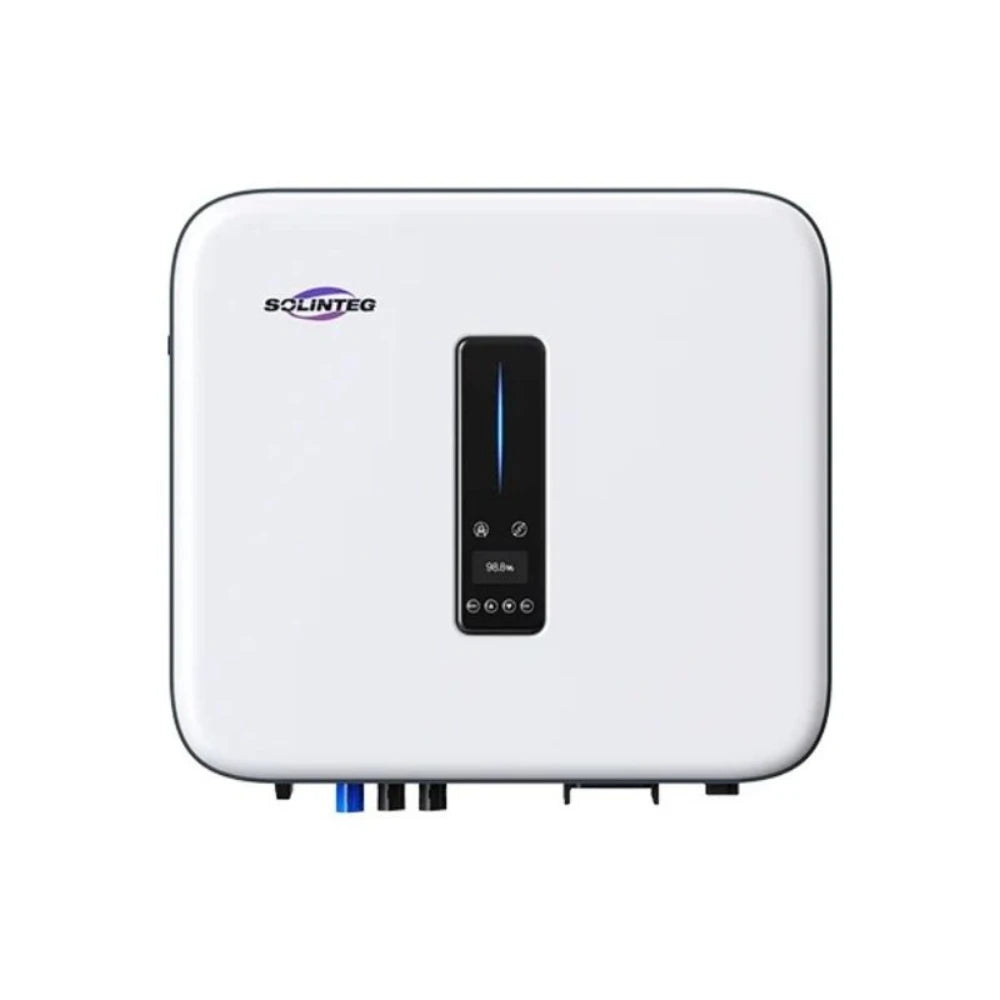

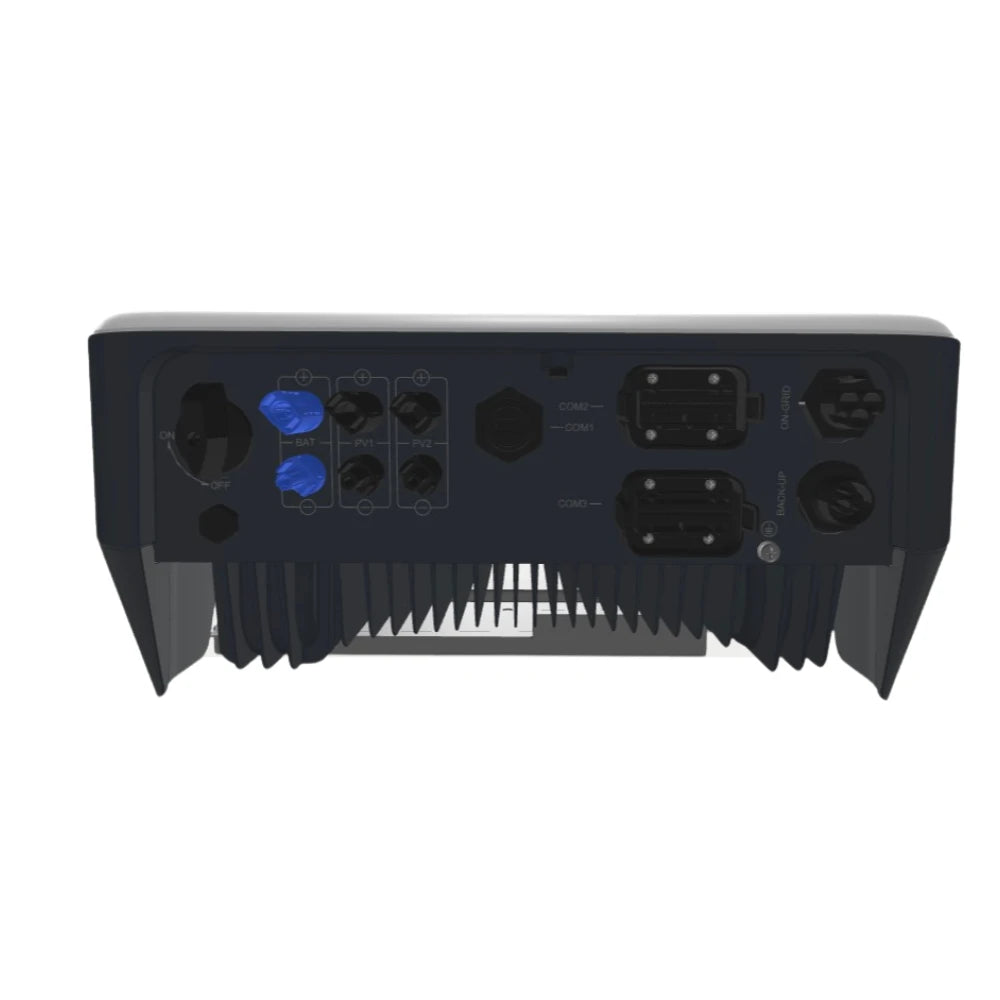

Solinteg M2HS-3K-30 Asymmetrical Hybrid Inverter 3kW - 1 Phase
Description
Description
The Solinteg M2HS-3–6K-30 series is a family of single-phase hybrid inverters primarily designed for residential solar systems. With power outputs of 3, 3.6, 5, and 6 kW, it is well-suited for small and medium-sized household systems.
In addition to solar power generation, the inverter can also manage high-voltage lithium-ion batteries. Batteries can be connected within a voltage range of 85–450 V, with a maximum charging and discharging current of 30 A. This allows a portion of the energy generated during the day to be stored for later use.
On the PV side, the inverters operate with a starting voltage of 80 V and an MPPT range of 70–550 V. The 3 kW version has 1 MPP tracker, while the larger models have 2 MPP trackers, which can be advantageous for solar systems with different orientations or multiple arrays.
In the event of a power outage, the backup output can be used to power a separate consumer circuit. The switchover time is less than 10 ms, and the short-term peak load capacity, depending on the model, is 5.8 or 8.4 kVA for 10 seconds.
The series operates with an efficiency of up to 97.6%, comes in an IP65-rated enclosure, and uses natural cooling. The noise level remains below 25 dB, ensuring discrete operation in residential environments. Communication is via CAN and RS485 connections, and operation monitoring is facilitated by LED and OLED displays.
Key Features at a glance:
- Single-phase hybrid inverter for residential systems
- 3, 3.6, 5, and 6 kW power variants
- Support for high-voltage lithium-ion batteries
- Battery voltage range: 85–450 V
- Maximum charging and discharging current: 30 A
- 1 or 2 MPP trackers, depending on the model
- PV starting voltage: 80 V
- MPPT operating range: 70–550 V
- Backup output with less than 10 ms switchover time
- Up to 97.6% efficiency
- IP65 protection, natural cooling, noise level below 25 dB
- LED and OLED display, CAN / RS485 communication
The Solinteg M2HS-3–6K-30 series can be a good choice for single-phase solar systems where the inverter needs to manage not only power generation but also battery energy storage and backup power supply.
