Sofar  |  SKU: SOF-BTS-E10-DS5-10K-BSET
Sale

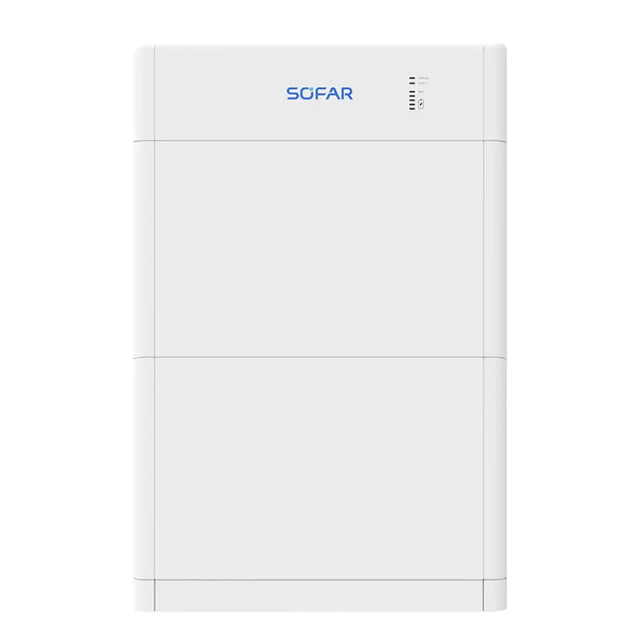

Sofar Battery Kit 10.24kWh

Sale price 1.102.548 Ft Regular price 1.136.648 Ft
Tax included

You can also pay in EUR (€)

Do you have a question?

Product related question? Contact us:

Monday - Friday: 08:00 - 16:00

+36 20 220 3049 | +36 70 513 3558

info@energiamegujitas.hu

Payment and delivery

Payment
You can pay the order amount by bank transfer, in Hungarian Forints or Euros. Cash on delivery is available for orders up to HUF 500,000, with a handling fee of HUF 4,990. For orders over HUF 500,000, only bank transfer is possible. We will send the proforma invoice by e-mail, which will contain the necessary details for the transfer.

Delivery
We deliver your orders throughout Hungary with the help of our reliable logistics partners or our own transport. Personal collection is possible by prior arrangement. The shipping cost is determined based on the size, weight and type of the ordered product:

  • Small package: HUF 3,790
  • Large package: HUF 6,490
  • Heat pump: free delivery
  • Solar panel and battery: individual shipping fee (based on size, weight and quantity)

Description

Sofar BTS sets are quickly deployable LiFePO4 battery packs available in 5, 10, 15, or 20 kWh capacities. The system's components are modularly expandable, flexibly adapting to growing needs. They are compatible with Sofar hybrid inverters and can be easily integrated into existing solar power systems.


Modular system, highly scalable capacity:

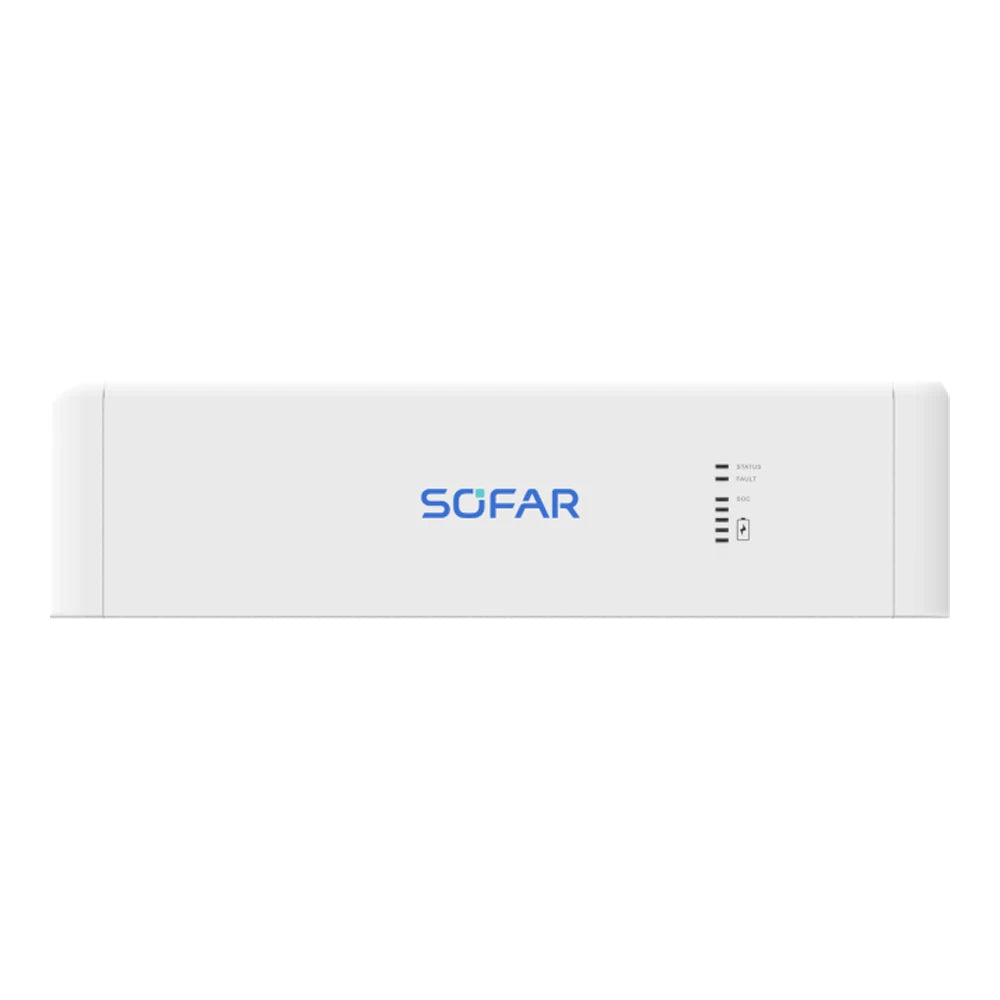

The set always includes a Sofar BTS 5K-BDU control unit and the desired number of 5 kWh battery modules. The modules can be stacked, and by synchronizing two systems, the capacity can be expanded up to 40 kWh.

High-voltage design:
The system operates at approximately 400 volts, enabling efficient energy management. This is particularly advantageous for those who already have a solar power system or use a hybrid inverter.

Simple installation, transparent operation:
The individual units connect with quick-connect cables, eliminating the need for complex wiring. The built-in control unit monitors the operation of the modules, thus automatically optimizing energy distribution.

Durable, safe operation:
LiFePO4 cells provide a long lifespan and stable performance. The system consumes minimal energy in sleep mode, keeping the battery's self-consumption low.

Compatibility:
Fully compatible with Sofar HYD and ME series inverters. Can be used with solar power, charged from the grid, or in hybrid mode.



Specifications

  • Usable energy
    10.24 kWh
  • Rated capacity (kWh)
    10.24 kWh
  • Capacity
    -
  • Rated voltage
    -
  • Voltage
    High voltage
  • Operating voltage range
    350–435 V DC
  • Peak power
    5.0 kW
  • Max. discharge current
    15 A
  • Max. charge current
    12 A
  • Rated capacity (Ah)
    200 Ah
  • IP protection
    IP65
  • Operating temperature
    -20 - +50 °C
  • Installation location
    -
  • Warranty
    10 years
  • Dimensions
    708 x 1100 x 170 mm
  • Weight
    110 kg
  • Product category
    Set
