EnerShare Energy-CORE Battery 3.2 kWh
Description
Description

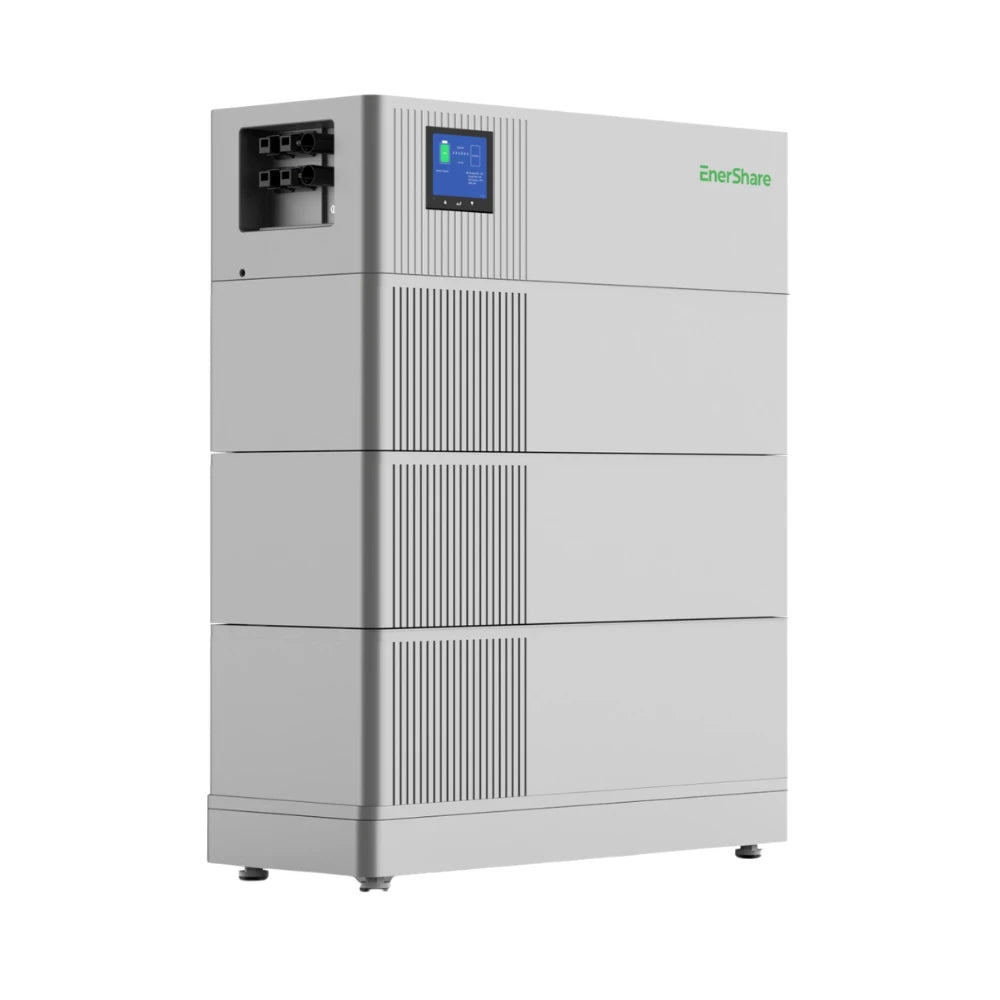

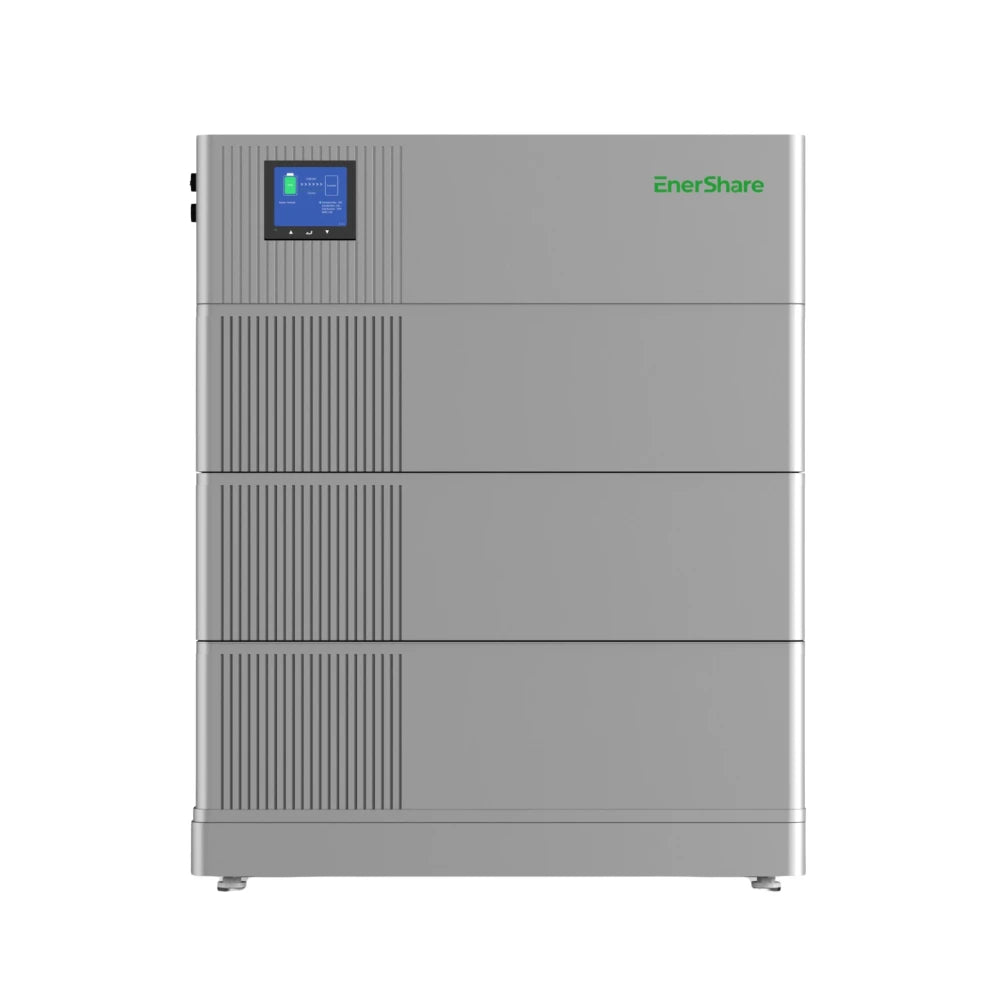

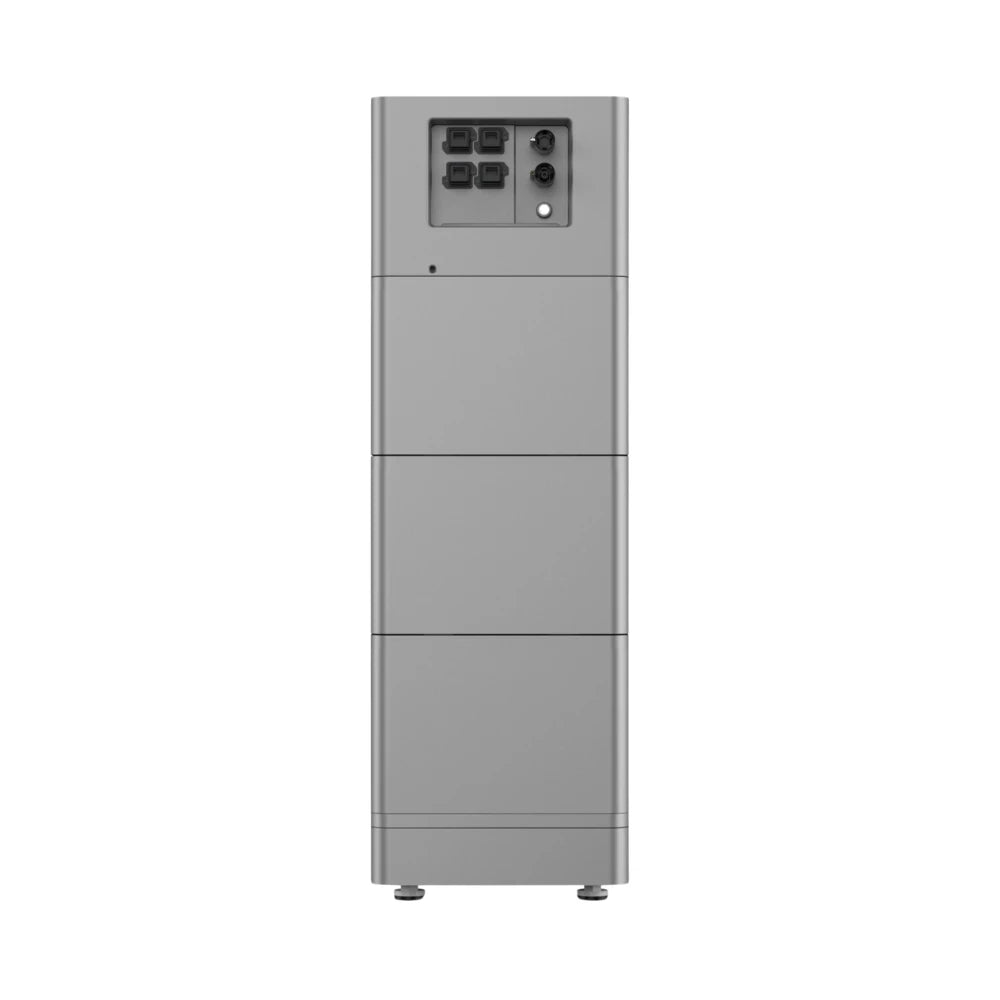

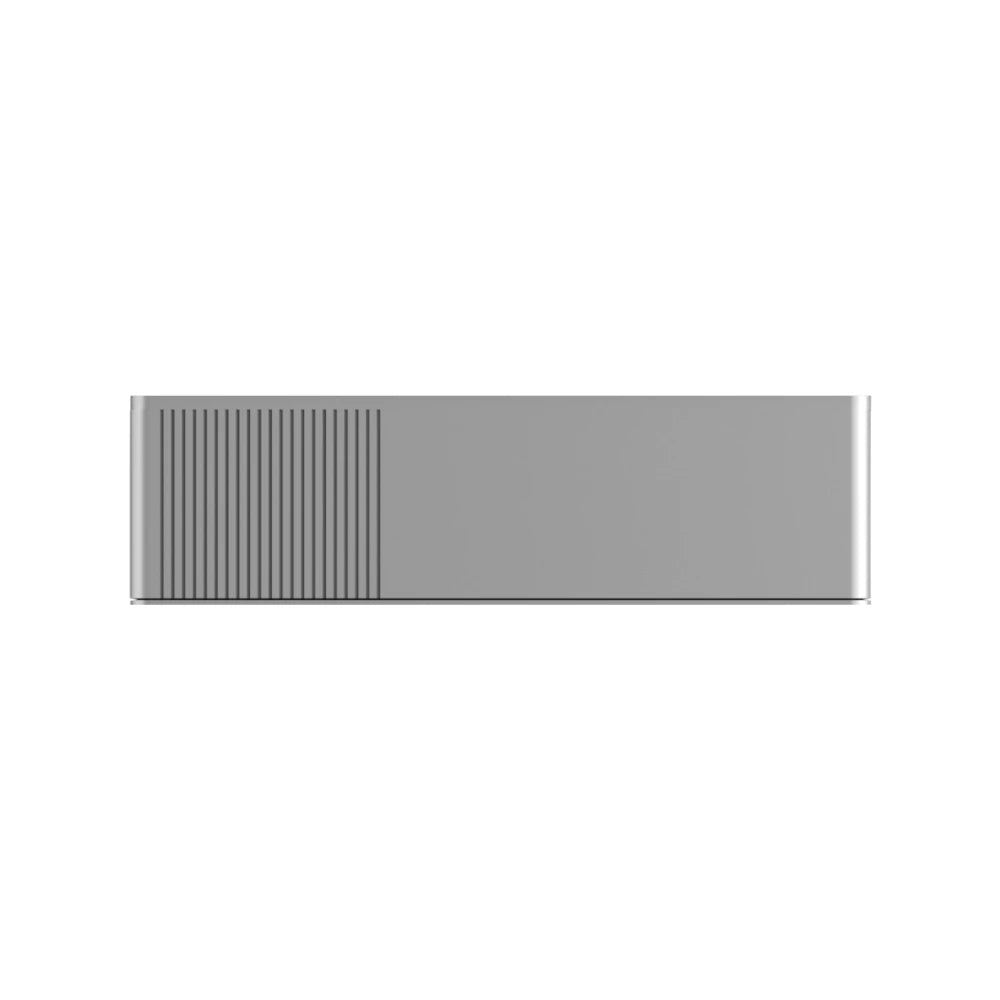

The EnerShare Energy-CORE high-voltage LFP battery module can be used for solar energy storage systems. One module has a usable capacity of 3.2 kWh and a nominal voltage of 64 V. The operating voltage range is 54–73 V.
The system consists of stackable modules. 3–8 battery modules can be used in one tower, allowing the tower capacity to be configured between 9.6–25.6 kWh. The system supports parallel connection of up to 6 towers, with towers having the same number of modules.
The module has IP65 protection and is built with an aluminum casing. The stackable, direct connection design allows for module connections without separate cabling. The system operates with a Smart BMS control unit, which provides CAN 2.0 and RS485 communication to compatible inverters.
Key features at a glance:
- High-voltage LFP battery module with 3.2 kWh usable capacity
- Nominal voltage: 64 V; operating voltage range: 54–73 V
- Maximum output current: 30 A; peak output current: 50 A for 5 seconds
- 3–8 modules can be used in one tower
- System capacity: 9.6–25.6 kWh / tower
- Up to 6 towers supported in parallel connection
- IP65 protection, aluminum casing, stackable design
- Smart BMS controller, CAN 2.0 and RS485 communication
The EnerShare Energy-CORE HV can be used for battery systems where an expandable, tower-design energy storage solution is required alongside a compatible hybrid inverter.
